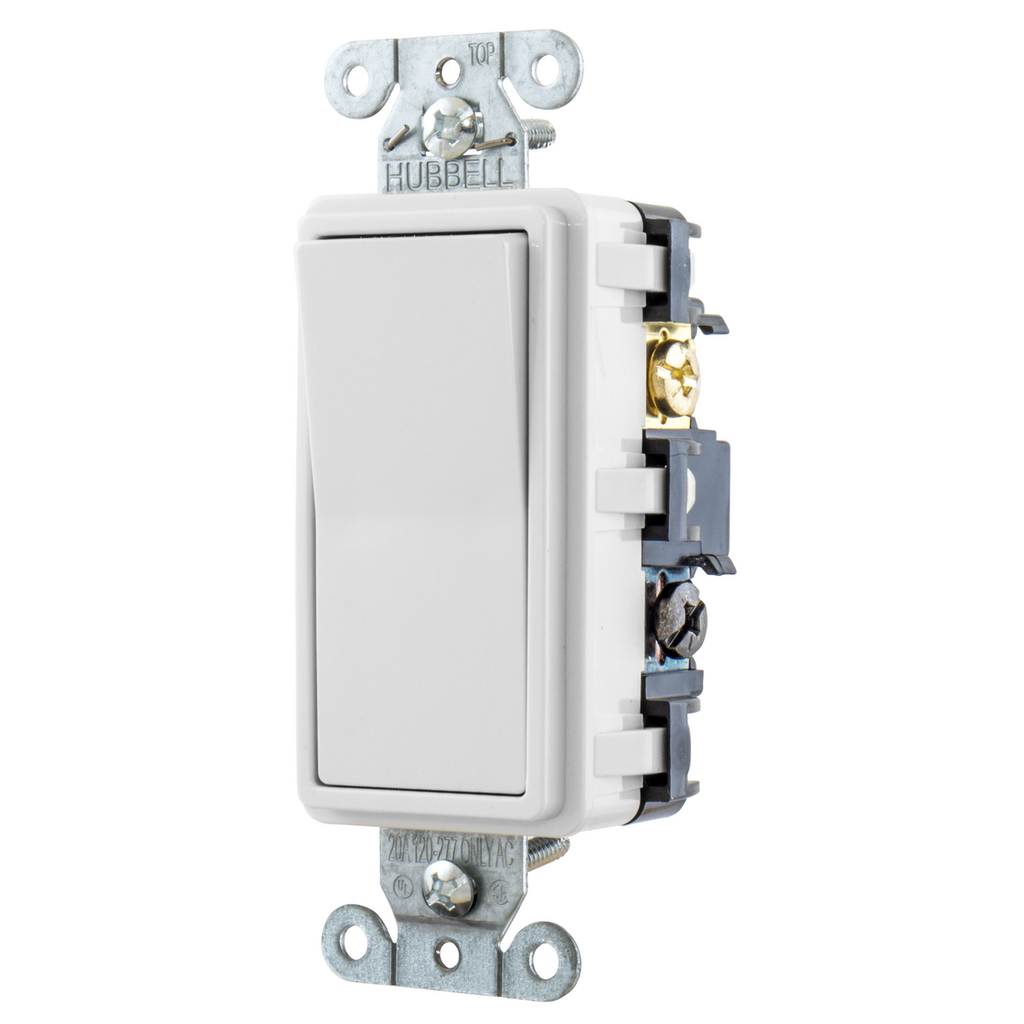

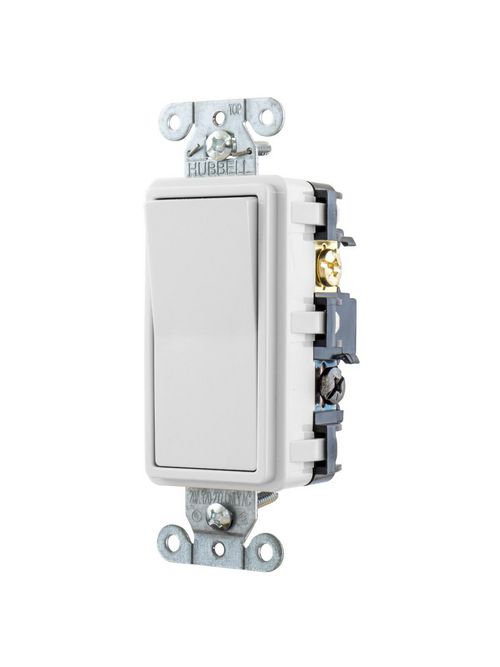

Hubbell Wiring Devices RSD415W 15 Amp 120/277 VAC 4-Way White Rocker Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$14.69/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # RSD415W
North Coast Part # 348031

Features

  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base

Specifications

  • Country of Origin: CN
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Industry Standard(s): CSA Certified;UL Listed E3896
  • Performance: Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
  • Standard: CSA CertifiedUL Listed E3896

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00883778101441
Length 4.16 Inch
Width 1.910 in
Size Standard Sized
Color White
Operating Temperature Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Type General Purpose, Standard, 4-Way
Material Composite
Terminal Type Screw
Applications Residential Wiring Devices
Height 1.66 Inch
Wattage 4155 Watt
Temperature Rating -20 C Minimum Without Impact, 60 C Maximum Continuous
Family Brand Name Hubbell Wiring Device Kellems
Power Rating 4155 W
TC Connection Terminal Screw
Actuator Rocker
Contact Configuration 2 Position
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Contact Rating Per UL 20
Number of Positions 2
Number of Poles 2 Pole
Enclosure None
Indicator None
Operating Cycles 30000
Sub Brand AC Decorator Switches
Product UPC 88377810144
Standard CSA,E3896,UL
Voltage 120/277 VAC
Action Positive Snap
Country of Origin China
