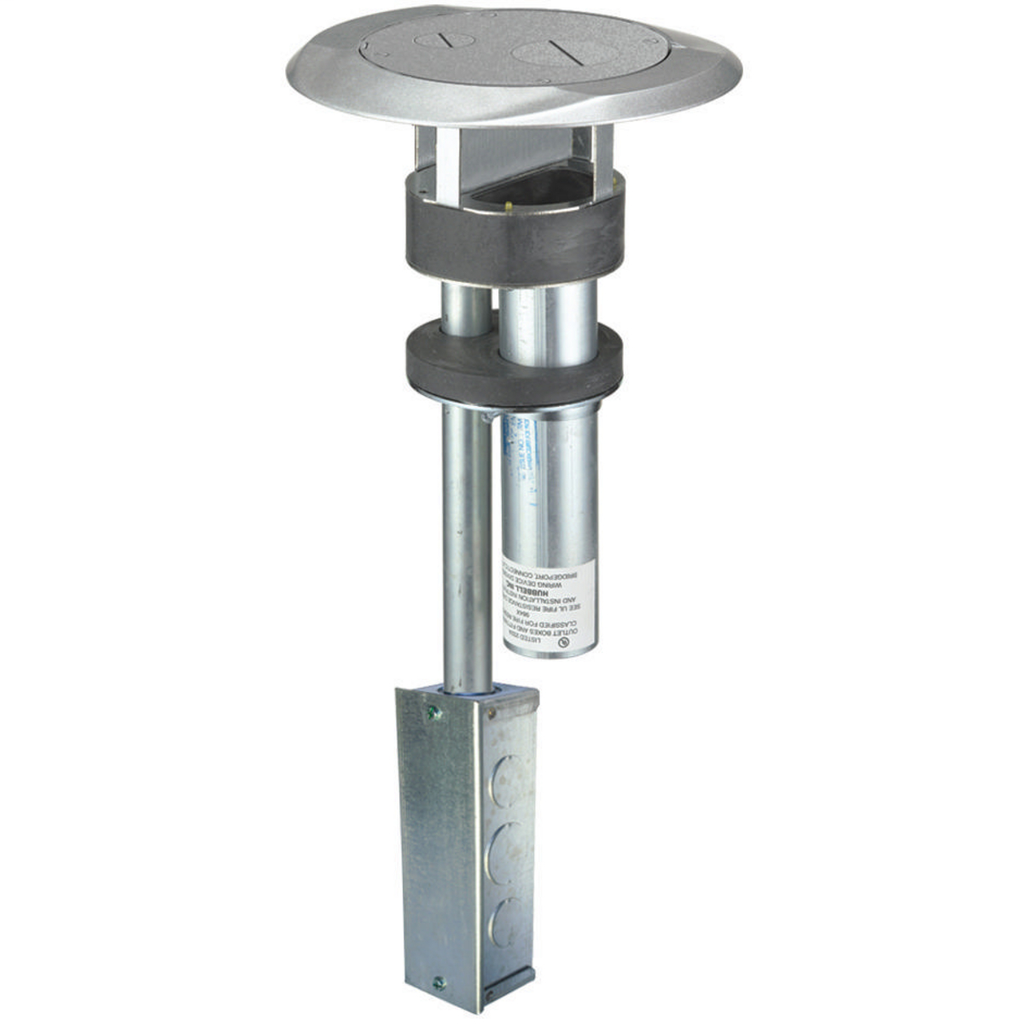

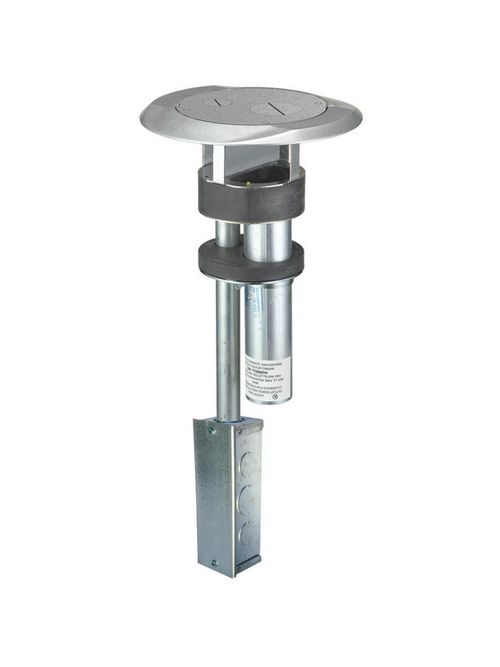

HCI S1PTFFALJ S1 FRPT, FURN FEED, 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$370.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # S1PTFFALJ
North Coast Part # 673122

Features

  • Available with integral power junction box
  • Excellent solution for retrofit and new construction
  • Accepts all Hubbell SystemOne covers and sub-plates
  • With Junction Box

Performance

  • Mechanical - Max. Cu Cross Section - 3/4 in. Power EMT .072 sq. in.
  • Electrical - Fire Resistance Rating - 4-Hrs. (D900)

Industry Standard(s)

  • ULC R8429 Listed
  • ULC CEYYC Listed

Specifications

  • Application: Complete Units
  • Cable Entry: Cable Access Door
  • Construction: Fabricated
  • Core Hole: 4 Inch SystemOne
  • Display Size: Standard Sized Product
  • Finish Type: Aluminum
  • Item Type: Flush Fire Rated Poke Throughs
  • Knockouts: In Junction Box: Top- 1) 1", Bottom- 1) 3/4", Sides- 2) 1/2" and 1 3/4"
  • Material: Composite
  • Minimum Order Quantity: 1 EA
  • Number Of Outlets: No Devices
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • SAP Material Group 5: A10
  • Style: FRPT Furniture Feed - Complete Kits
  • EU RoHS Indicator: No
  • Each - Length: 24.200 in
  • Each - Height: 9.100 in
  • Each - Width: 9.500 in
  • Number of Outlet: No Devices
  • Special Features: With Junction Box
  • Standard: ULC CEYYC Listed || ULC R8429 Listed

Overview

UPC 78358537315
GTiN 00783585373157
Length 24.200 in
Width 9.500 in
Size Standard Sized Product
Color Silver
Type Fabricated, Furniture Feed
Material Aluminum
Applications Complete Units
Mounting Type 4 in Core Hole in Concrete Floor
Height 9.100 in
Family Brand Name Hubbell Wiring Device Kellems
Construction Fabricated
Cable Entry Cable Access Door, Top (1) 1 in, Bottom (1) 3/4 in, Sides (2) 1/2 in and 1-3/4 in Junction Box
Sub Brand SystemOne
Finish Aluminum
