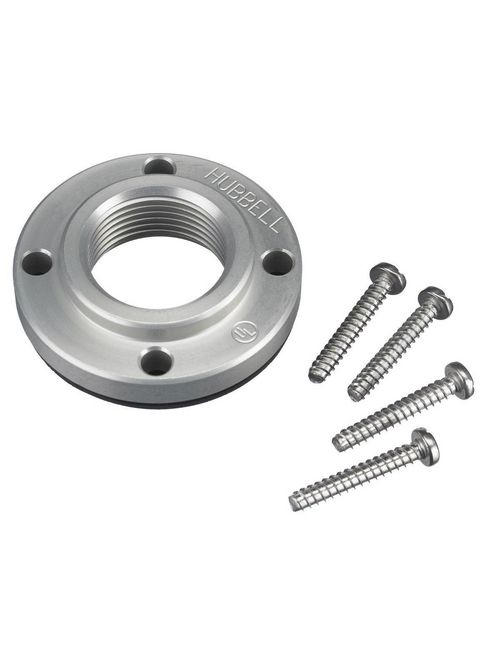

Hubbell Wiring Devices SAC100 1 Inch Aluminum Pin and Sleeve Device Liquidtight Adapter
Product image thumbnail 0
Product image thumbnail 1
$95.41/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SAC100
North Coast Part # 68351

Specifications

General

  • Application: 30 and 32 Amp, 5 Wire, 60 and 63 Amp, All Wire
  • Environmental Conditions: Watertight
  • Item Type: Liquid-Tight Adapter
  • Material: Aluminum
  • Material - Mounting Hardware: Cord Mounted
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 classification | Environmental - Operating Temperatures - Max. Continuous: 75° C | Min. Continuous: -40° C w/o impact | Mechanical - Impact Resistance - In accordance with UL746C | Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
  • Series: Accessories
  • Type: Liquidtight Adapter
  • UPC: 783585140056

Dimensions

  • Display Size: Standard Sized

Electrical Ratings

  • Connectivity: Pressure Terminal Screws

Conductor Related

  • Cord Type: All Portable

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 5

Overview

UPC 78358514005
GTiN 00783585140056
Length 4.700 in
Width 3.600 in
Size 1 in
Type Standard Sized, Non-NEMA
Material Aluminum
Product Series Accessories
Cord Type All Portable
Applications For 30 and 32 A, 5 Wire, 60 and 63 A All Wire
Height 0.900 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection NPT
Sub Brand Pin and Sleeve Devices
Standard UL
Environmental Conditions Watertight
