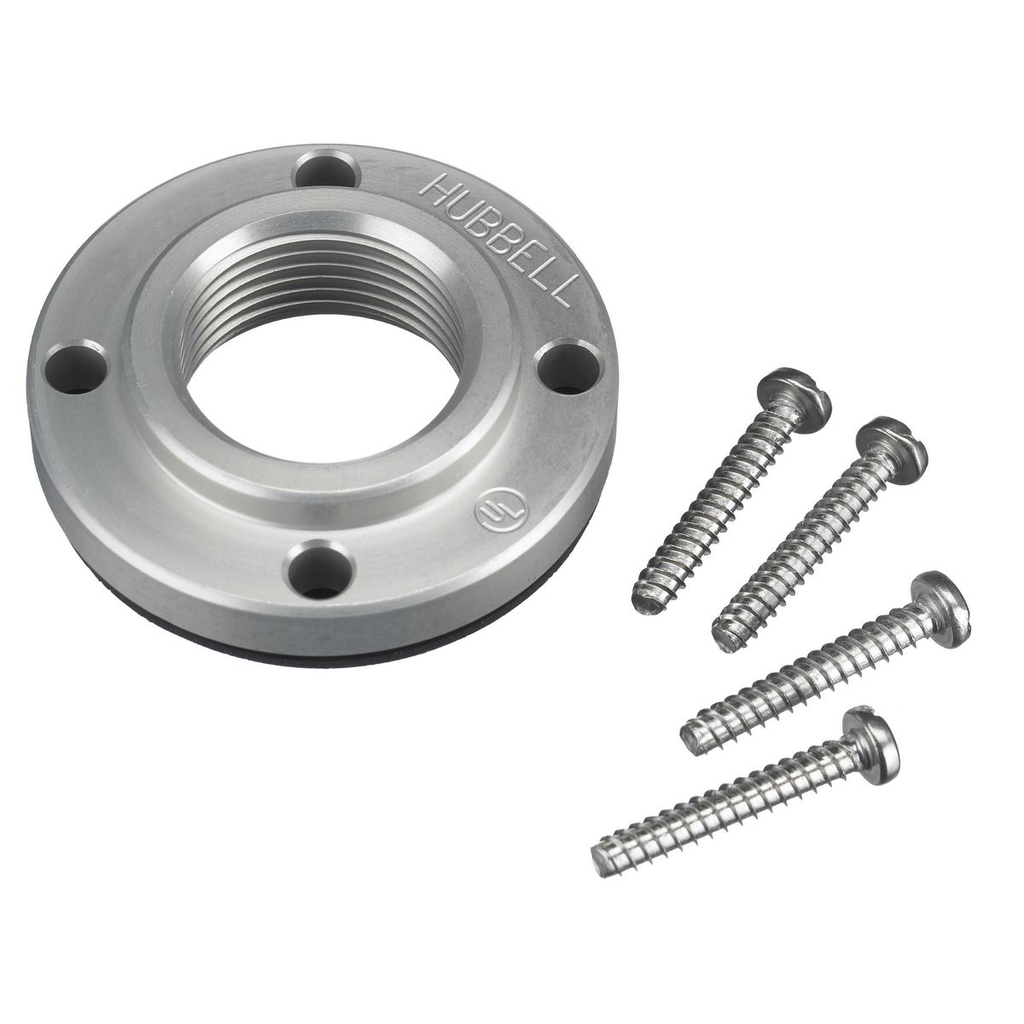

HWDK SAC125 PS,IEC/INS,L/T ADAPT,1
$120.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SAC125
North Coast Part # 68542

Specifications

General

  • Application: 30 and 32 Amp, 5 Wire, 60 and 63 Amp, All Wire
  • Environmental Conditions: Watertight
  • Item Type: Liquid-Tight Adapter
  • Material: Aluminum
  • Material - Mounting Hardware: Cord Mounted
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 3,000V AC | Electrical - Max Working Voltage - 600V AC RMS | Environmental - Flammability - UL94-5VA and V-0 classification | Environmental - Operating Temperatures - Max. Continuous: 75° C | Min. Continuous: -40° C w/o impact | Mechanical - Impact Resistance - In accordance with UL746C | Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount | Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
  • Series: Accessories
  • Type: Liquidtight Adapter
  • UPC: 783585140155

Dimensions

  • Display Size: Standard Sized

Electrical Ratings

  • Connectivity: Pressure Terminal Screws

Conductor Related

  • Cord Type: All Portable

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 5

Overview

UPC 78358514015
GTiN 00783585140155
Length 3.900 in
Width 2.600 in
Size Standard Sized
Type Liquidtight Adapter
Material Aluminum
Product Series Accessories
Cord Type All Portable
Applications 30 and 32 Amp, 5 Wire, 60 and 63 Amp, All Wire
Height 1.300 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Pressure Terminal Screws
Sub Brand Pin and Sleeve Devices
Standard UL
Environmental Conditions Watertight
