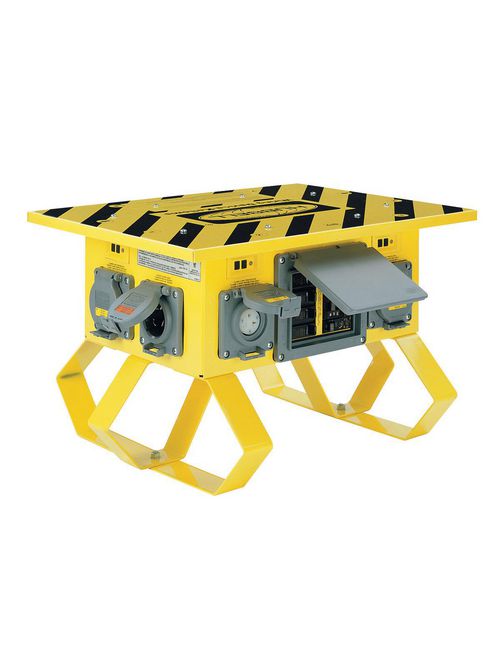

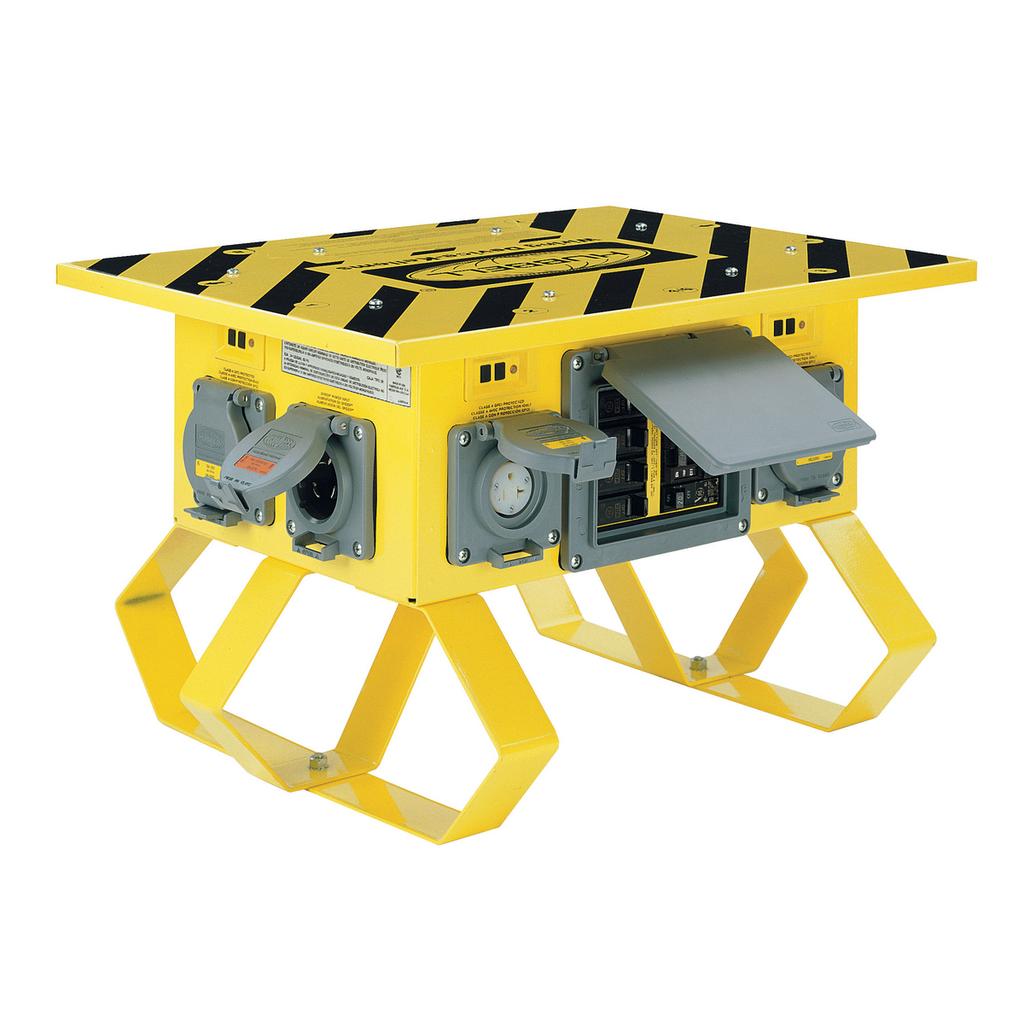

HCI SBSB1A SPIDER BOX, 50AMP STRAIG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$2,908.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SBSB1A
North Coast Part # 18531

Features

  • Individual GFCI modules
  • TYPE 3R metallic enclosure and heavy duty,abuse resistant legs
  • Standard stab termination circuit breakers with gasketed lift cover
  • Standard Product

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 50 A
  • Each - Height: 14.200 in
  • Each - Length: 23.100 in
  • Each - Width: 19.600 in
  • Industry Standard(s): UL 1640 cUL and CSA, UL 943
  • Performance: Environment - Moisture Resistance - Indoor and outdoor wet and dry locations
  • Amperage Rating: 50 A
  • Application: Heavy Duty Portable
  • Color: Yellow
  • Environmental Conditions: Indoor and Outdoor
  • NEMA Rating: 7) 5-20R, 1) 50A Non-NEMA In/Out
  • Number of Poles: 3-Pole
  • Number of Wires: 4-Wire Grounding
  • Phase: Single Phase
  • Special Features: Standard Product
  • Standard: UL 1640 cUL and CSA, UL 943
  • Type: 7-20A, 125V Straight Blade Receptacles, 1-50A, 125/250V Locking Inlet, 1-50A 125/250V Locking Outlet
  • Voltage Rating: 120/240 VAC
  • Wattage: 12500
  • Wire Size: #10 AWG Min #6 AWG Max
  • Voltage Rating Description: 120/240 VAC

Certifications

  • EU RoHS Indicator: No

Overview

GTiN 00783585370873
Length 23.1 Inch
Width 19.600 in
Size Standard Sized Product
Color Yellow
Voltage 120/240 Volt
Type 1-50A,1-50A 125,125,125V Straight Blade Receptacles,250V Locking Inlet,250V Locking Outlet,7-20A
Material Thermoplastic
Product Series Spider II
Applications Heavy Duty Portable
Height 14.2 Inch
Wire Size 10 AWG
Wattage 12500 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Pre-Wired
Current 50 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Spider Temporary Wiring Products
Product UPC 78358537087
Environmental Conditions Indoor and Outdoor
Country of Origin USA
