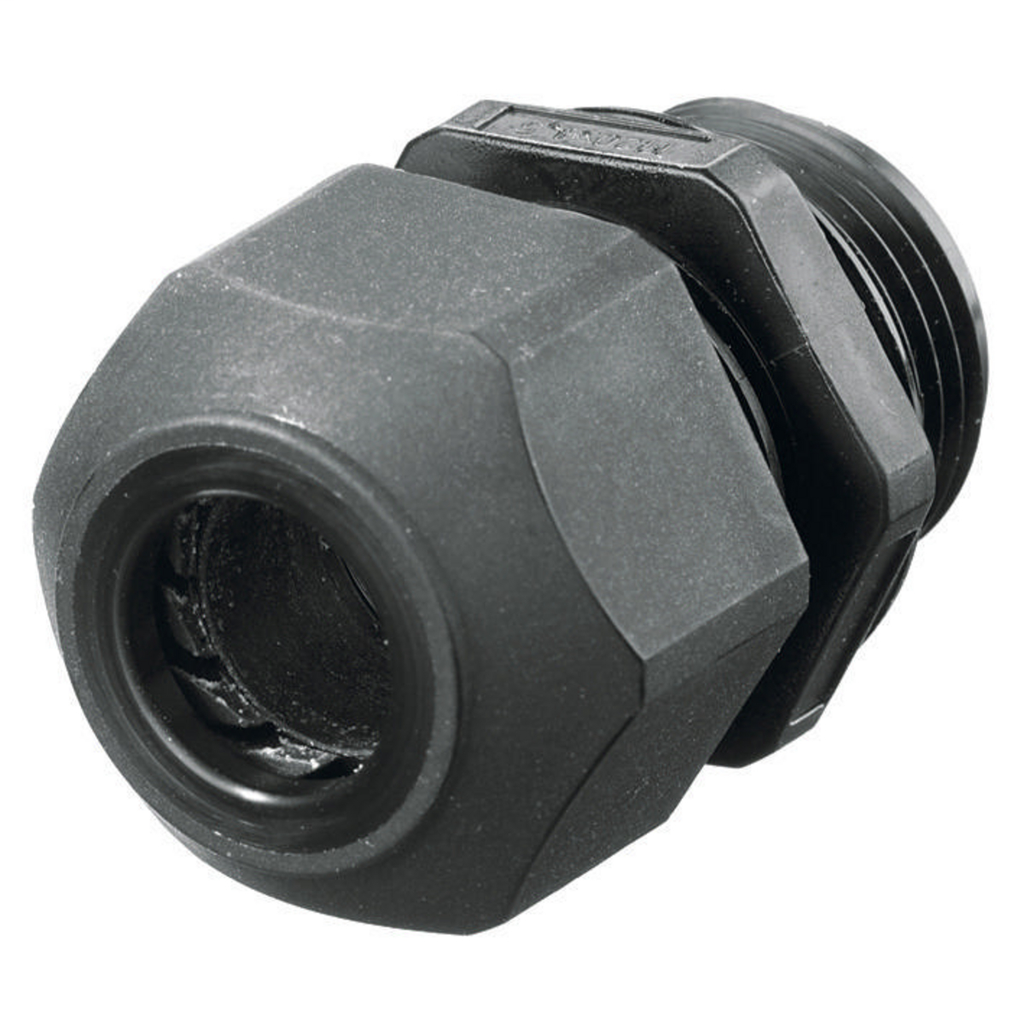

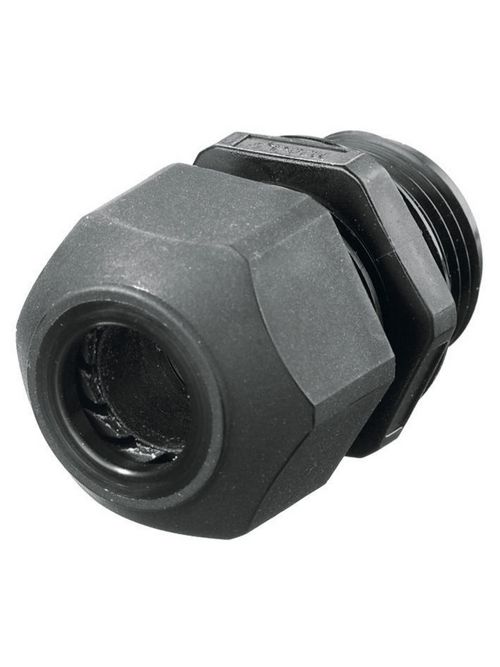

Hubbell Wiring Devices SEC75BA 3/4 Inch Threaded 0.45 to 0.71 Inch Black Non-Metallic Low Profile Cord Connector
Product image thumbnail 0
Product image thumbnail 1
$4.74/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SEC75BA
North Coast Part # 218455

Features

  • Low profile
  • Connector body is a one-piece design with machined threads

Specifications

General

  • Application: Straight Male Connector
  • Color: Black
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • Item Type: Low Profile Cord Connectors
  • Material: Non-Metallic
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperatures - -22°F to 225°F (-30°C to 107°C) | Environmental - Protection Class - IP66 Suitability
  • Series: Low Profile NPT
  • Temperature Rating: Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C)
  • Type: Connector
  • UPC: 783585018164

Dimensions

  • Display Size: 3/4" NPT
  • Hub Size: 3/4"

Conductor Related

  • Conductor Range: 0.45-0.71 in (11.4-18.0 mm)
  • Number Of Conductors: Single

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: IP66

Logistics

  • Carton Quantity: 50

Overview

UPC 78358501816
GTiN 00783585018164
Length 2.000 in
Finish Smooth
Width 1.500 in
Size 3/4" NPT IN
Color Black
Type Low Profile, Straight
Material Nylon
Number of Conductors Single
Product Series Low Profile NPT
Applications For Jacketed UL Listed Cable Only
Height 1.500 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 50
Material Type Non-Metallic
Sub Brand Kellems Wire Management
Conductor Size 0.45 - 0.71 in
Trade Size 3/4 Inch
Standard UL
TC Connection MNPT
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
