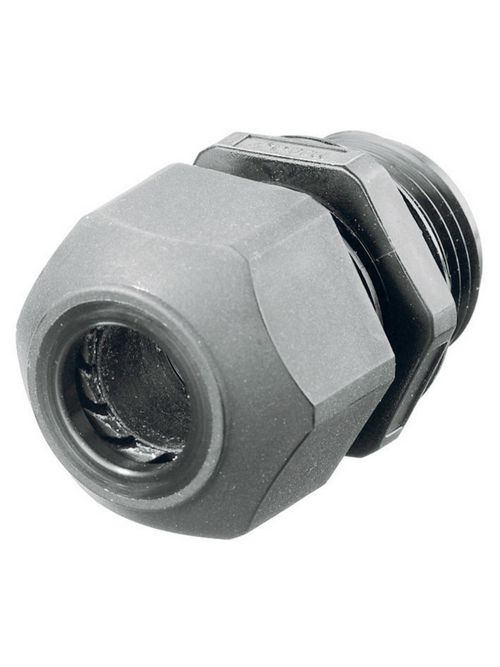

Hubbell Wiring Devices SEC75GA 3/4 Inch Threaded 0.45 to 0.71 Inch Gray Non-Metallic Low Profile Cord Connector
Product image thumbnail 0
Product image thumbnail 1
$4.74/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SEC75GA
North Coast Part # 218774

Features

  • Low profile
  • Connector body is a one-piece design with machined threads

Specifications

General

  • Application: Straight Male Connector
  • Color: Gray
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • Item Type: Low Profile Cord Connectors
  • Material: Non-Metallic
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperatures - -22°F to 225°F (-30°C to 107°C) | Environmental - Protection Class - IP66 Suitability
  • Series: Low Profile NPT
  • Temperature Rating: Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C)
  • Type: Connector
  • UPC: 783585018140

Dimensions

  • Display Size: 3/4" NPT
  • Hub Size: 3/4"

Conductor Related

  • Conductor Range: 0.45-0.71 in (11.4-18.0 mm)
  • Number Of Conductors: Single

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: IP66

Logistics

  • Carton Quantity: 50

Overview

UPC 78358501814
GTiN 00783585018140
Length 2.000 in
Finish Smooth
Width 1.500 in
Size 3/4" NPT IN
Color Gray
Type Straight, Male, Low Profile
Material Nylon
Number of Conductors Single
Product Series Low Profile NPT
Applications Straight Male Connector
Height 1.500 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 50
Material Type Non-Metallic
Sub Brand Kellems Wire Management
Conductor Size 0.45 - 0.71 in
Trade Size 3/4 Inch
Standard UL
TC Connection NPT
Used With Jacketed UL Listed Cables
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
