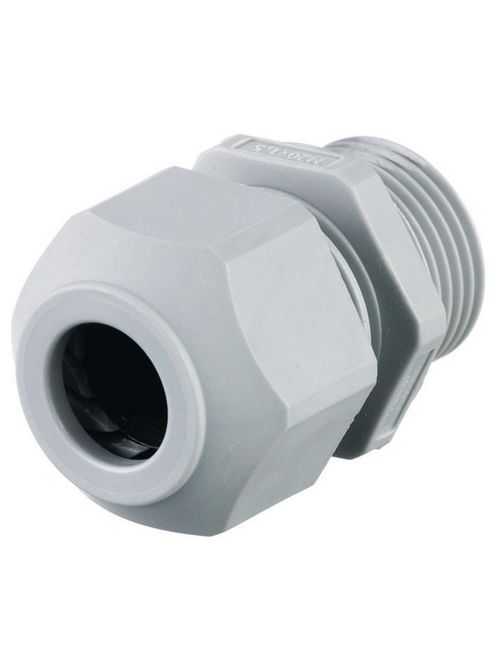

HCI SECM12G EURO CORD CONN, .12-.25
Product image thumbnail 0
Product image thumbnail 1
$2.26/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SECM12G
North Coast Part # 885506

Features

  • Low profile
  • Connector body is a one-piece design with machined threads

Specifications

General

  • Application: Straight Male Connector
  • Color: Gray
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • Item Type: Low Profile Cord Connectors
  • Material: Non-Metallic
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperatures - -22°F to 225°F (-30°C to 107°C) | Environmental - Protection Class - IP66 Suitability
  • Series: Low Profile Metric
  • Temperature Rating: Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C)
  • Type: Connector
  • UPC: 783585018522

Dimensions

  • Display Size: 12mm
  • Hub Size: M12

Conductor Related

  • Conductor Range: 0.12-0.25 in (2.9-6.4 mm)
  • Number Of Conductors: Single

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: IP66

Logistics

  • Carton Quantity: 50

Overview

UPC 78358501852
GTiN 00783585018522
Length 1.200 in
Finish Smooth
Width 0.600 in
Size 12 mm
Color Gray
Type Straight, Male, Low Profile
Material Nylon
Number of Conductors Single
Conductor Size 0.12 - 0.25 in
Product Series Low Profile Metric
Applications Straight Male Connector
Height 0.500 in
Trade Size M12
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 50
Material Type Non-Metallic
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Standard UL
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
