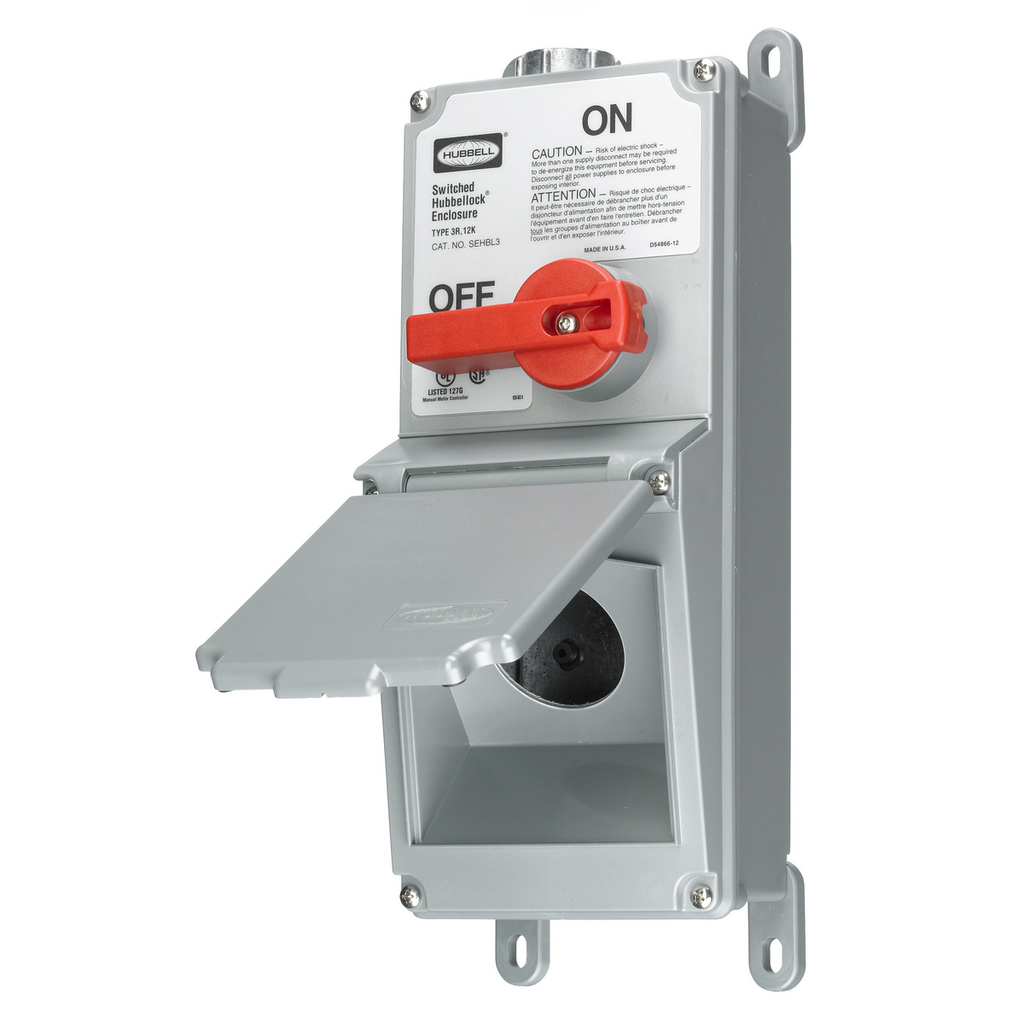

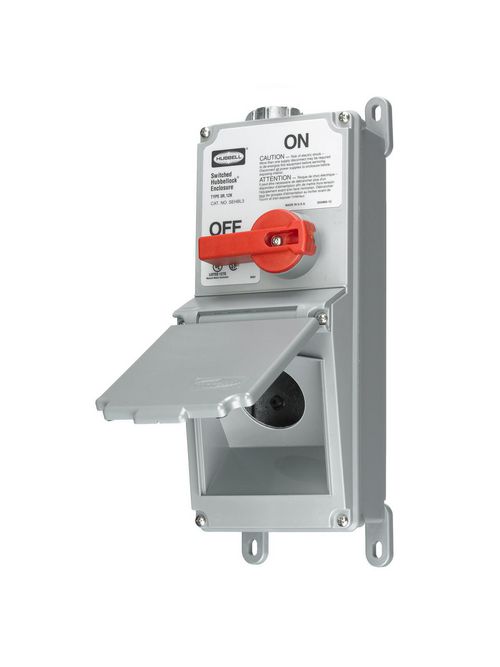

HCI SEHBL3 SWITCHED ENCLOSURE, HUBB
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$405.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SEHBL3
North Coast Part # 214101

Features

  • Accommodates 30-Amp, 4 Wire Hubbellock Receptacle
  • Type 3R Rainproof or 12K Dust-tight
  • Molded Valox Resists Abuse, Corrosion and Enhances Safety
  • Lockable Handle Meets OSHA Lockout Requirements

Specifications

  • Color: Gray
  • Country of Origin: US
  • Each - Height: 4.600 in
  • Each - Length: 12.200 in
  • Each - Width: 5.300 in
  • Industry Standard(s): CSA Certified Type 3R and 12K Enclosure Rating;Listed to UL Standard
  • Performance: 600V RMS - Electrical - Operations;Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V minimum;Electrical - Environmental - Max. Working Voltage;External fully adjustable feet - Mechanical - Product Identification;Identification and ratings are part of external label and receptacle face - Mechanical - Terminal Identification;In accordance with UL 746C - Mechanical - Mounting;In accordance with UL, CSA and international conventions - Environmental - Flammability;IP54 suitability - Environmental - Operating Temperature;Maximum continuous +75°C Minimum continuous -40°C - Environmental - UV Resistance;Mechanical 10,000 cycles;Electrical 6,000 cycles - Mechanical - Impact Resistance;UL94 – 5 VA and V0 classification - Environmental - Moisture Resistance
  • Show Add To ProjectList: Yes
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Standard: CSA Certified Type 3R and 12K Enclosure Rating; Listed to UL Standard
  • Type: Switched Enclosure

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358500600
Item Long Description Switches and Lighting Controls, Industrial Grade, Lever Actuated, Switched Enclosure With Receptacle, Three Pole, 30A Hubbellock, 3 Phase 600V AC, Terminal Screws, Gray.
GTiN 00783585006000
Length 12.200 in
Width 5.300 in
Size Standard Sized
Color Gray
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Type Switched Enclosure
Applications Extra Heavy Duty Industrial
Height 4.600 in
Weight 3.8 lb
Wattage 18000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Actuator Lever
Contact Configuration Two Position
Contact Rating 30A
Number of Poles 3 Pole
Enclosure Non-Metallic
Operating Cycles 6k
Sub Brand Switched Hubbellock
Standard 12K Enclosure Rating,CSA,Type 3R,UL Standard
Voltage 600 Volt
Material Composite
Environmental Conditions NEMA 4X
Action Snap
