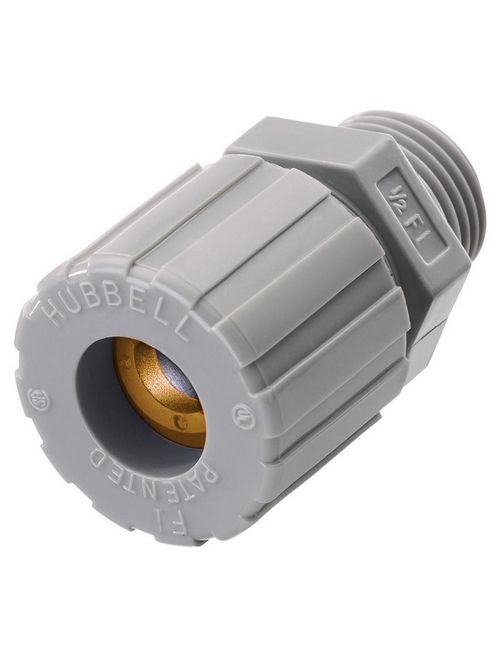

Hubbell Wiring Devices SHC1002CR 1/4 Inch 0.13 to 0.19 Inch Diameter Cord Straight Male Cord Connector
$10.69/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SHC1002CR
North Coast Part # 336111

Features

  • Nylon cord connector resists most common industrial corrosives
  • Provides effective pullout protection
  • Lightweight design

Specifications

General

  • Application: Straight Male- Form 1
  • Color: Gray
  • Color Code: Red
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • Item Type: Cord Connectors
  • Material: Nylon
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Flammability - UL 94-V2 | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC | Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Series: Standard Duty
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: Straight Male
  • UPC: 783585207841

Dimensions

  • Display Size: 1/4" NPT
  • Hub Size: 1/4"

Conductor Related

  • Conductor Range: 0.13-0 .19 in (3.2- 4.7 mm)
  • Number Of Conductors: Single

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: NEMA Type 4, 4X, 12 and 13

Logistics

  • Carton Quantity: 50

Overview

UPC 78358520784
GTiN 00783585207841
Length 0.900 in
Finish Smooth
Width 0.900 in
Size 1/4" NPT
Color Gray
Type Straight, Male, Form 1
Material Nylon
Number of Conductors Jacketed UL Listed Cable Only
Conductor Size 0.13 - 0.19 in
Product Series Standard Duty
Applications Straight Male- Form 1
Height 1.800 in
Trade Size 1/4 Inch
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 50
TC Connection NPT
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Standard UL
