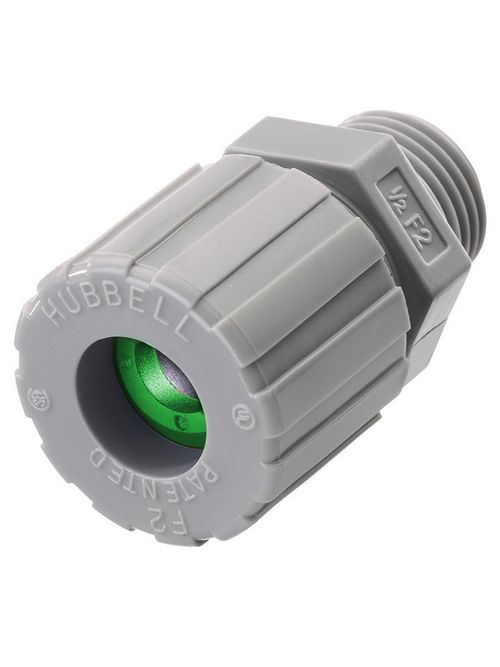

Hubbell Wiring Devices SHC1019CR 1/2 Inch Male Threaded 0.06 to 0.13 Inch Gray Nylon Straight Cord Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.64/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SHC1019CR
North Coast Part # 65637

Features

  • Nylon cord connector resists most common industrial corrosives
  • Provides effective pullout protection
  • Lightweight design
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 2.300 in
  • Each - Length: 1.100 in
  • Each - Width: 1.100 in
  • Hub Size: 1/2 "
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Flammability - UL 94-V2;Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Application: Straight Male- Form 2
  • Color: Gray
  • Conductor Range: 0.06-0.13 in (1.6-3.2 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: Straight Male
  • Nema Rating: NEMA Type 4, 4X, 12 and 13
  • Number Of Conductors: Single
  • Display Size: 1/2" NPT
  • Color Code: Green
  • Item Type: Cord Connectors
  • Material: Nylon
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • Series: Standard Duty

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585208015
Length 1.1 Inch
Finish Smooth
Width 1.100 in
Size 1/2" NPT IN
Color Gray
Type Standard, Straight, Male, Form 2
Material Nylon
Number of Conductors Single
Conductor Size 0.06 - 0.13 in
Product Series Standard Duty
Applications Straight Male- Form 2
Cable Type Jacketed UL Listed Cable Only
Height 2.3 Inch
Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Family Brand Name Hubbell Wiring Device Kellems
TC Connection 1/2 in NPT
Sub Brand Kellems Wire Management
Product UPC 78358520801
Standard UL
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Country of Origin USA
