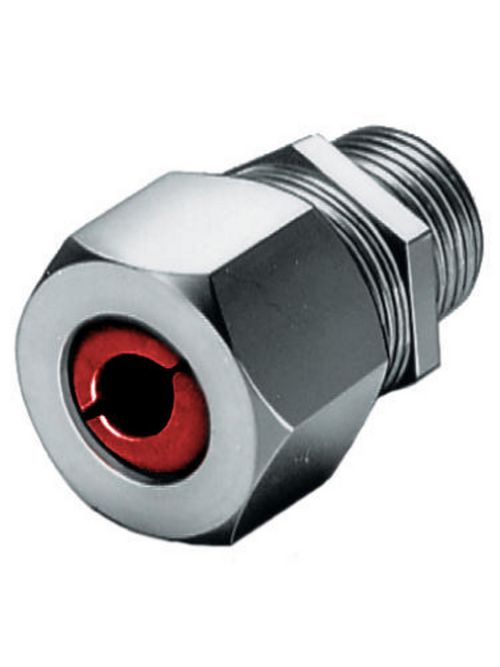

HWDK SHC1021SS CORDCON, STR ML, .19
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$129.78/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SHC1021SS
North Coast Part # 69048

Features

  • Stainless steel cord connector provides superior strength and corrosion resistance
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 2.100 in
  • Each - Length: 1.000 in
  • Each - Width: 1.000 in
  • Hub Size: 1/2 "
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Application: Straight Male- Form 2
  • Conductor Range: 0.19-0.25 in (4.7- 6.3 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: Straight Male

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585207216
Length 1 Inch
Finish Machined
Width 1.000 in
Size 1/2" NPT IN
Type Straight, Male, Form 2
Material Stainless Steel
Number of Conductors Single
Conductor Size 0.19 - 0.25 in
Product Series Standard Duty
Applications Straight Male- Form 2
Height 2.1 Inch
Trade Size 1/2 Inch
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
TC Connection NPT
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Product UPC 78358520721
Standard UL
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Country of Origin USA
