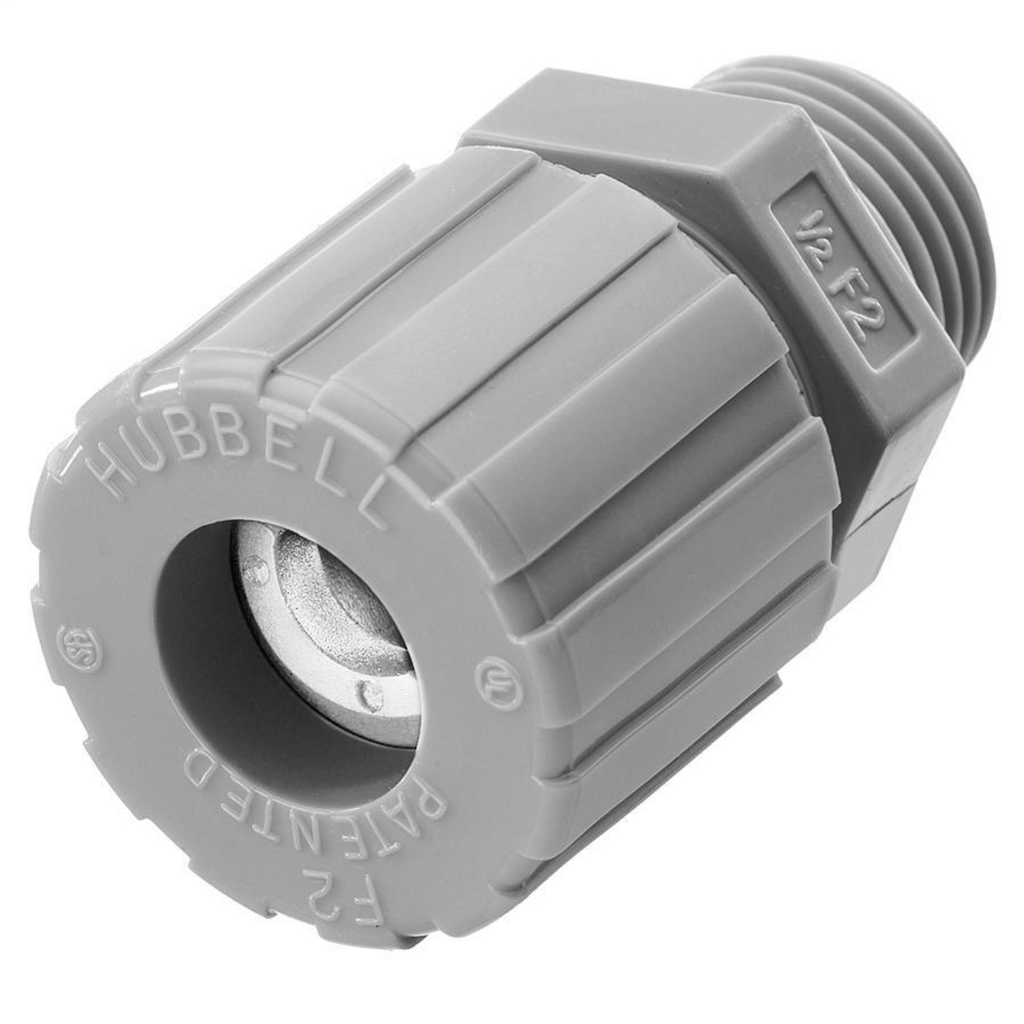

Hubbell Wiring Devices SHC1022CR 1/2 Inch Male Threaded 0.25 to 0.38 Inch Gray Nylon Straight Cord Connector

$10.56/ea

In Stock | 1037 available at 21 locations

Adding...

Already a Customer? Log in to view your pricing

Features

Application: Straight Male- Form 2
Color: Gray
Color Code: White
Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Item Type: Cord Connectors
Material: Nylon
Material - Mounting Hardware: Locknut or Tapped Opening
OEM Brand Name: Hubbell Wiring Device-Kellems
Performance: Environmental - Flammability - UL 94-V2 | Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC | Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Series: Standard Duty
Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Type: Straight Male
UPC: 783585208046

UPC	78358520804
GTiN	00783585208046
Length	1.200 in
Finish	Smooth
Width	1.200 in
Size	1/2" NPT IN
Color	Gray
Type	Standard, Straight, Male, Form 2
Material	Nylon
Number of Conductors	Single
Conductor Size	0.25 - 0.38 in
Product Series	Standard Duty
Applications	Straight Male- Form 2
Cable Type	Jacketed UL Listed Cable Only
Height	2.300 in
Temperature Rating	Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Family Brand Name	Hubbell Wiring Device Kellems
Carton Qty	25
TC Connection	1/2 in NPT
Sub Brand	Kellems Wire Management
Standard	UL
Environmental Conditions	Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
