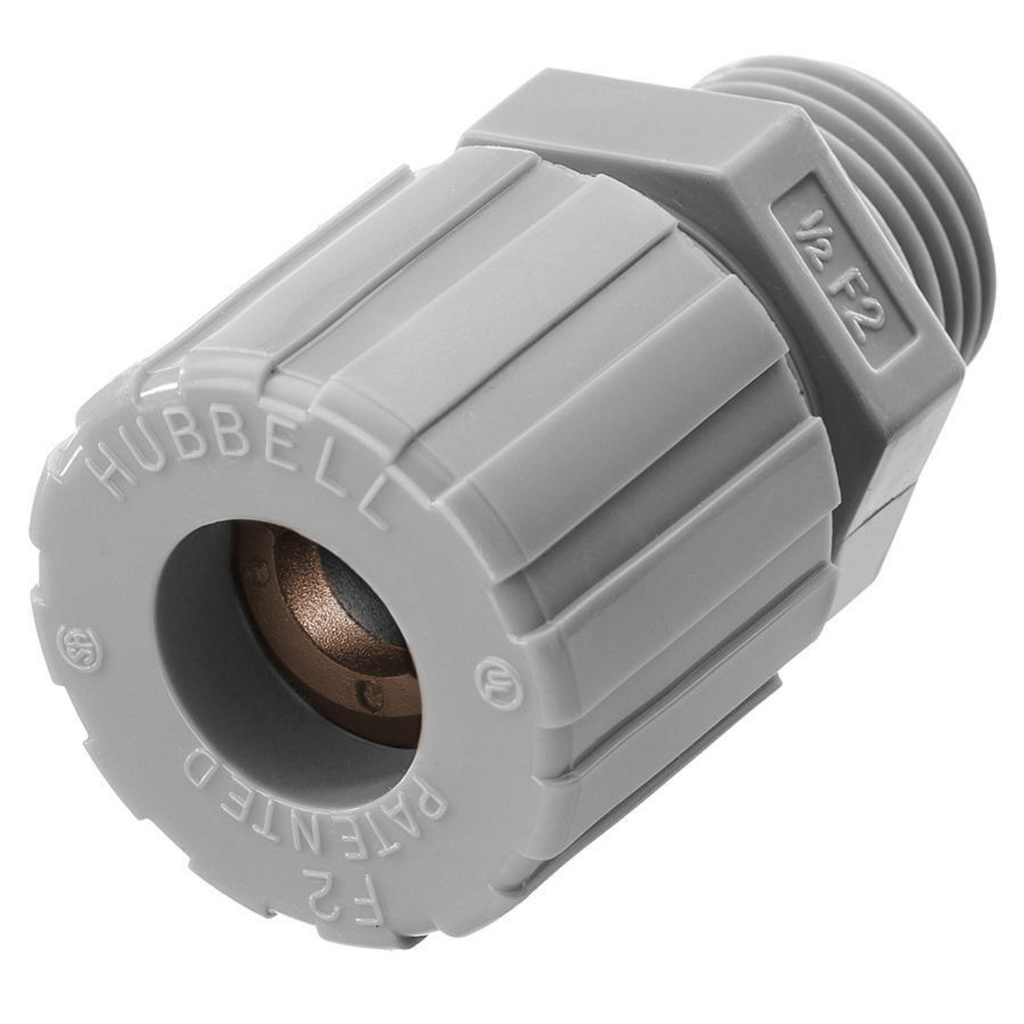

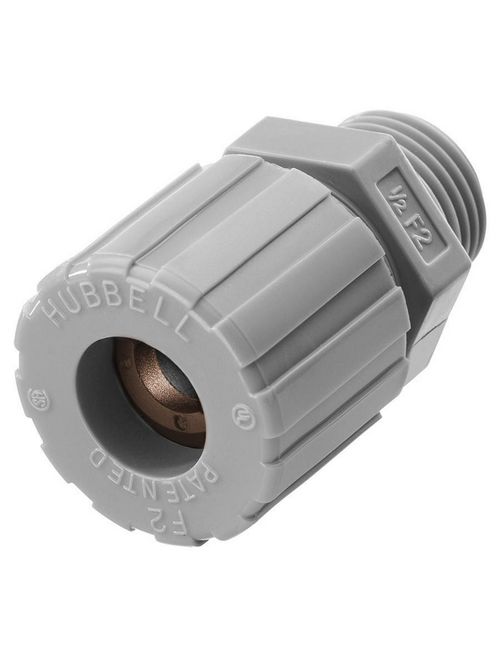

Hubbell Wiring Devices SHC1024CR 1/2 Inch Male Threaded 0.5 to 0.63 Inch Gray Nylon Straight Cord Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.64/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SHC1024CR
North Coast Part # 70279

Features

  • Nylon cord connector resists most common industrial corrosives
  • Provides effective pullout protection
  • Lightweight design
  • Standard Product

Specifications

  • Country of Origin: CN
  • Each - Height: 2.000 in
  • Each - Length: 1.100 in
  • Each - Width: 1.100 in
  • Hub Size: 1/2 "
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Flammability - UL 94-V2;Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Show Add To ProjectList: Yes
  • Application: Straight Male- Form 2
  • Color: Gray
  • Conductor Range: 0.5-0.63 in (12.7-15.9 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: Straight Male

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358520806
Item Long Description Kellems Wire Management, Cord Connectors, Straight Male, .50-.63", 1/2", Nylon
GTiN 00783585208060
Length 1.100 in
Finish Smooth
Width 1.100 in
Size 1/2" NPT IN
Color Gray
Type Straight, Male, Form 2, Standard
Material Nylon
Number of Conductors Single
Product Series Standard Duty
Applications Straight Male- Form 2
Height 2.000 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Sub Brand Kellems Wire Management
Conductor Size 0.5 - 0.63 in
Cable Type Jacketed UL Listed Cable
Trade Size 1/2 Inch
Standard UL
Thread Length 13.462 mm
TC Connection NPT
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
