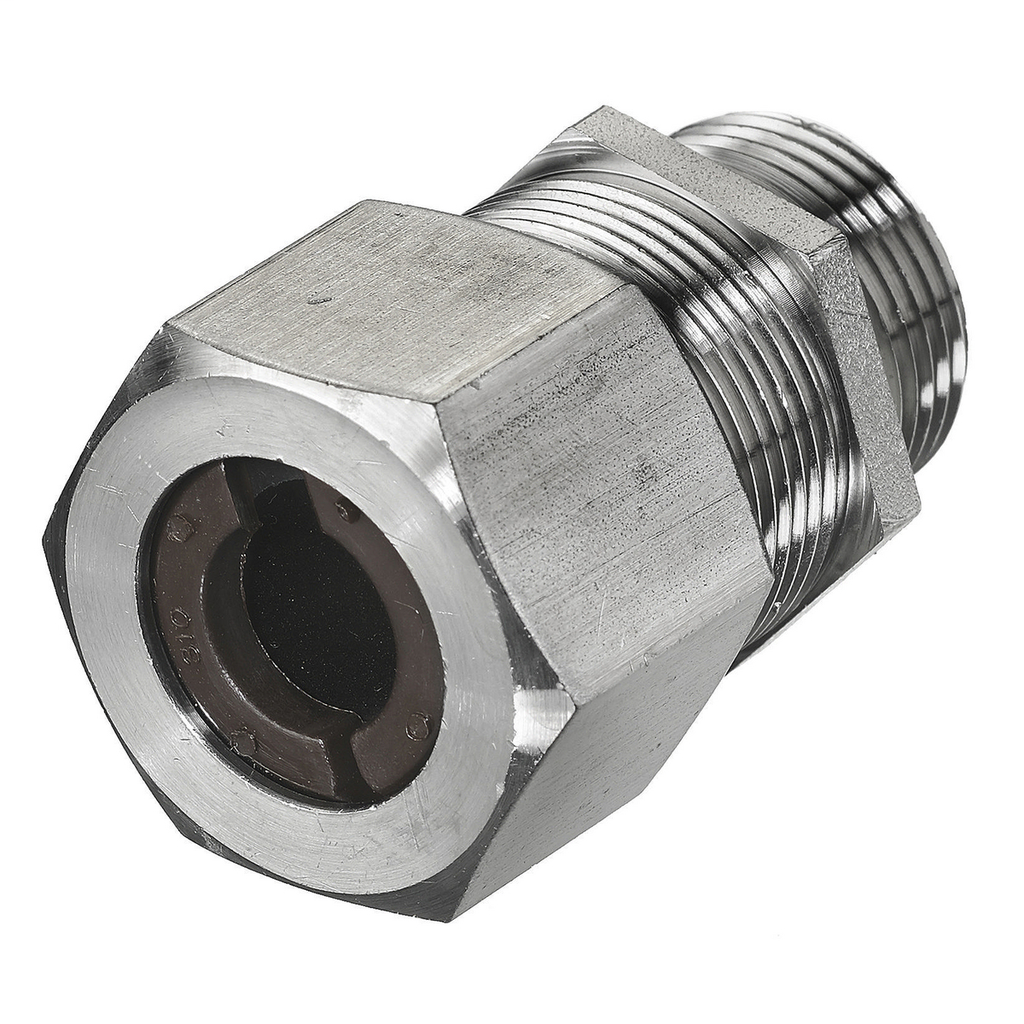

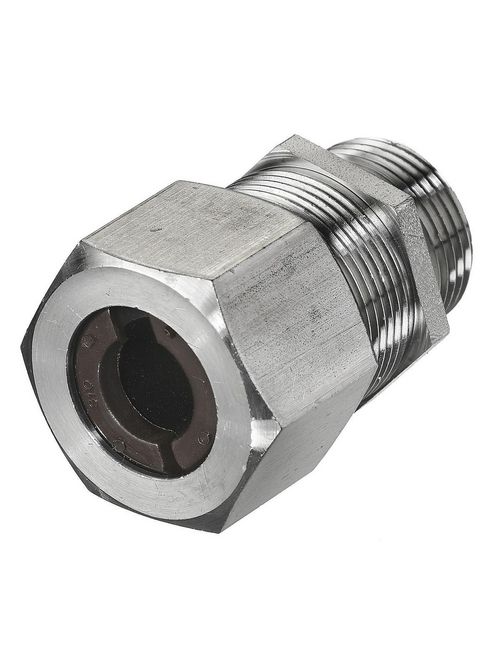

Hubbell Wiring Devices SHC1036SS 3/4 Inch Male Threaded 0.5 to 0.63 Inch Stainless Steel Straight Cord Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$179.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SHC1036SS
North Coast Part # 342256

Features

  • Stainless steel cord connector provides superior strength and corrosion resistance
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 2.300 in
  • Each - Length: 1.300 in
  • Each - Width: 1.300 in
  • Hub Size: 3/4"
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Show Add To ProjectList: Yes
  • Application: Straight Male- Form 3
  • Conductor Range: 0.5-0.63 in (12.7- 15.9 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: Straight Male

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358520736
Item Long Description Kellems Wire Management, Cord Connectors, Straight Male, .50-.63", 3/4", Stainless Steel
GTiN 00783585207360
Length 1.300 in
Finish Machined
Width 1.300 in
Size 3/4" NPT IN
Type Straight, Male, Form 3, Standard
Material Stainless Steel
Number of Conductors Single
Product Series Standard Duty
Applications Straight Male- Form 3
Height 2.300 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Sub Brand Kellems Wire Management
Conductor Size 0.5 - 0.63 in
Cable Type Jacketed UL Listed Cable
Trade Size 3/4 Inch
Standard UL
TC Connection NPT
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
