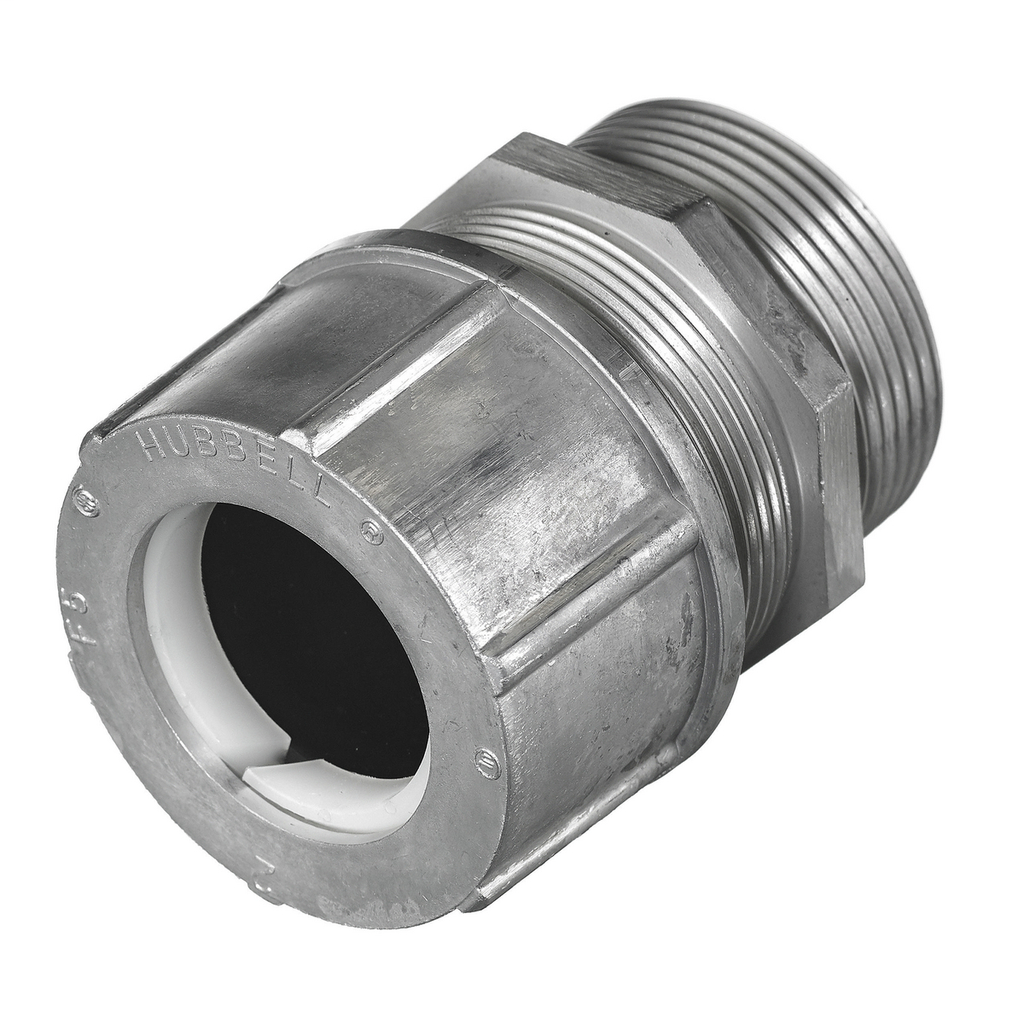

Hubbell Wiring Devices SHC1088 3 Inch 1.93 to 2.062 Inch Diameter Cord Aluminum Straight Male Cord Connector
$132.41/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SHC1088
North Coast Part # 271419

Features

  • Cast aluminum cord connector, one-piece design with machined threads
  • Lock nuts sold separately

Specifications

General

  • Application: Straight Male- Form 7
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • Item Type: Cord Connectors
  • Material: Aluminum, Cast
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC | Environmental - Operating Temperatures - -30°F to +240°F (-34°C to +115°C)
  • Series: Standard Duty
  • Temperature Rating: Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
  • Type: Straight Male
  • UPC: 783585200880

Dimensions

  • Display Size: 3" NPT
  • Hub Size: 3"

Conductor Related

  • Conductor Range: 1.94-2.06 in (49.2- 52.4 mm)
  • Number Of Conductors: Single

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: NEMA Type 4, 4X, 12 and 13

Logistics

  • Carton Quantity: 5

Overview

UPC 78358520088
GTiN 00783585200880
Length 4.000 in
Finish Machined
Width 4.000 in
Size 3" NPT
Type Cord Connectors
Material Aluminum,Cast
Number of Conductors Jacketed UL Listed Cable Only
Product Series Standard Duty
Applications Straight Male- Form 7
Height 4.400 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
Sub Brand Kellems Wire Management
Standard UL
