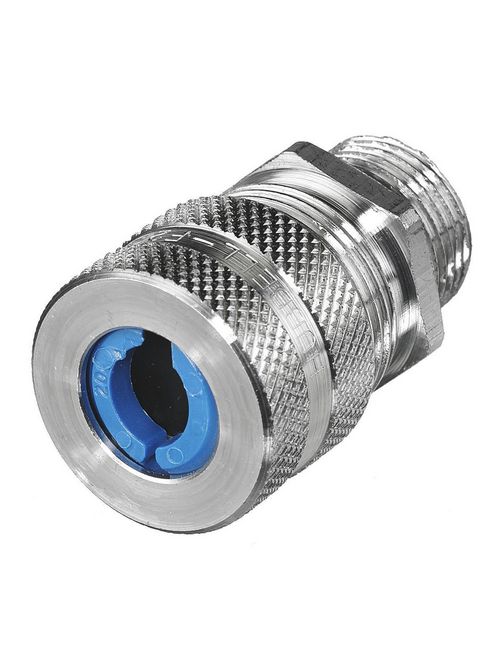

HCI SHCM161011 ALUM CORD CONNECTOR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SHCM161011
North Coast Part # 606037

Features

  • Metric Aluminum Cord Connector
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 1.000 in
  • Each - Length: 2.000 in
  • Each - Width: 1.000 in
  • Hub Size: M16
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Application: Straight Female- Form 1
  • Color: Aluminum
  • Conductor Range: 0.31-0.38 in (7.9-9.7 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: Metric
  • Nema Rating: NEMA Type 4, 4X, 12 and 13
  • Number Of Conductors: Single
  • Display Size: M16
  • Item Type: Cord Connectors
  • Material: Aluminum
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • Series: Standard Duty

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585774633
Length 2 Inch
Finish Machined
Width 1.000 in
Size M16
Color Silver
Type Straight, Male, Form 1
Material Aluminum
Number of Conductors Single
Conductor Size 0.5 - 0.62 in
Product Series Standard Duty
Applications Straight Female- Form 1
Height 1 Inch
Trade Size M16
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Product UPC 78358577463
Standard UL
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Country of Origin USA
