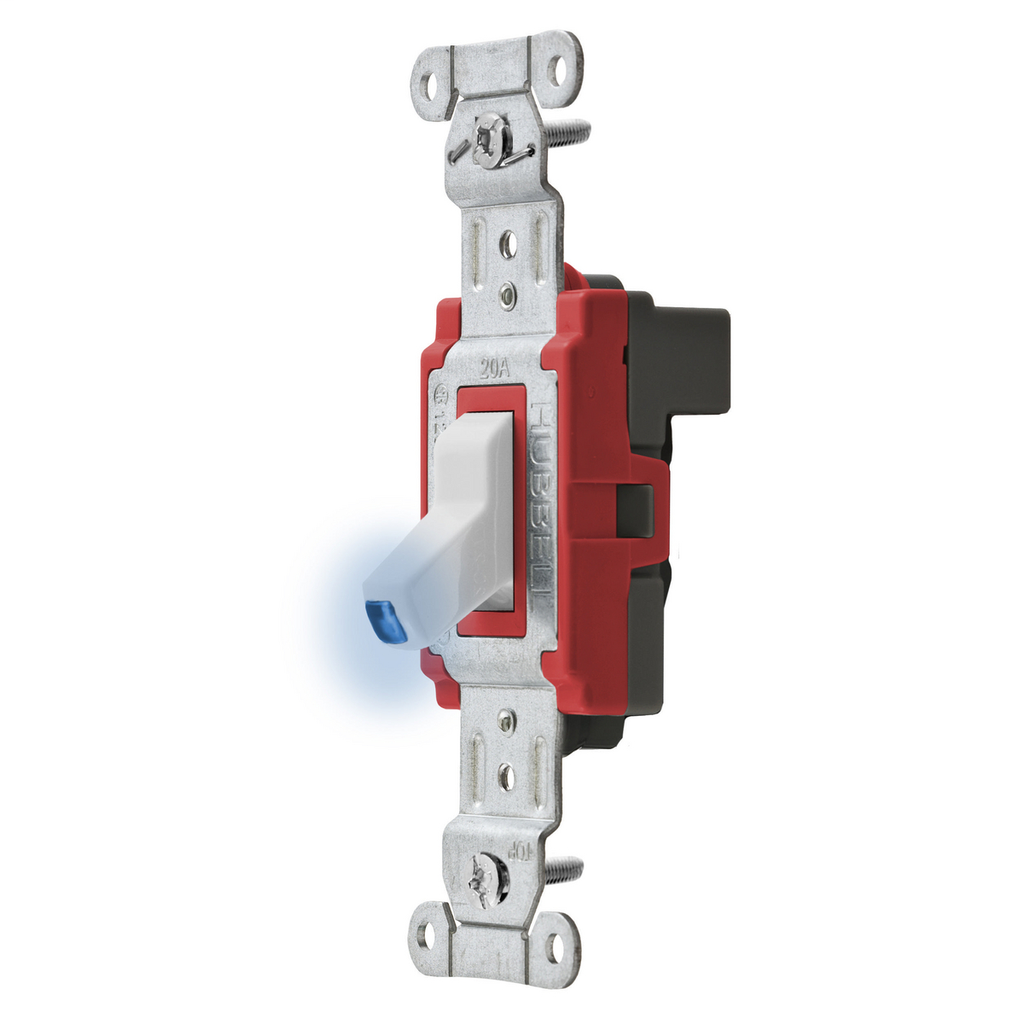

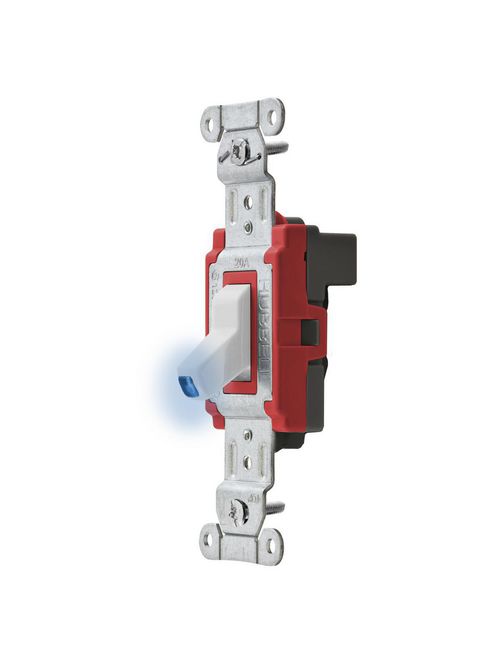

HWDK SNAP1221ILWNA SWITCH,SNAP,SP,I
$25.88/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP1221ILWNA
North Coast Part # 1161837

Features

  • Steel, zinc plated bridge is corrosion resistant
  • Thread cleaning captive mounting screw
  • Illuminated versions use LEDs for longer life

Specifications

General

  • Color: White
  • Indicator: Light On with Load Off
  • Indicator(s) Type: Blue LED
  • Item Type: Single Pole Illuminated Toggle Switch
  • Material: Thermoplastic
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 20A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
  • Series: Illuminated
  • Style: Single Pole
  • Type: Toggle
  • UPC: 783585186191

Dimensions

  • Dimensions: 4.18 in x 1.3 in x 1.74 in
  • Height: 1.74 in
  • Length: 4.18 in
  • Width: 1.3 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358518619
GTiN 00783585186191
Length 4.18 in
Width 1.3 in
Size Standard Sized
Color White
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120-277 Volt
Type Heavy Duty, 2-Position
Material Thermoplastic
Product Series Illuminated
Applications For Healthcare Facilities, Education, Hospitality, Commercial Construction, Pre-Fab Assembly
Height 1.74 in
Wattage 5,540 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Connectorized
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50000
Sub Brand SnapConnect
Grade Industrial/Commercial
Standard UL
Blade Dimensions 4.18 in L x 1.3 in W x 1.74 in H
Action Snap, Maintained/On-Off
