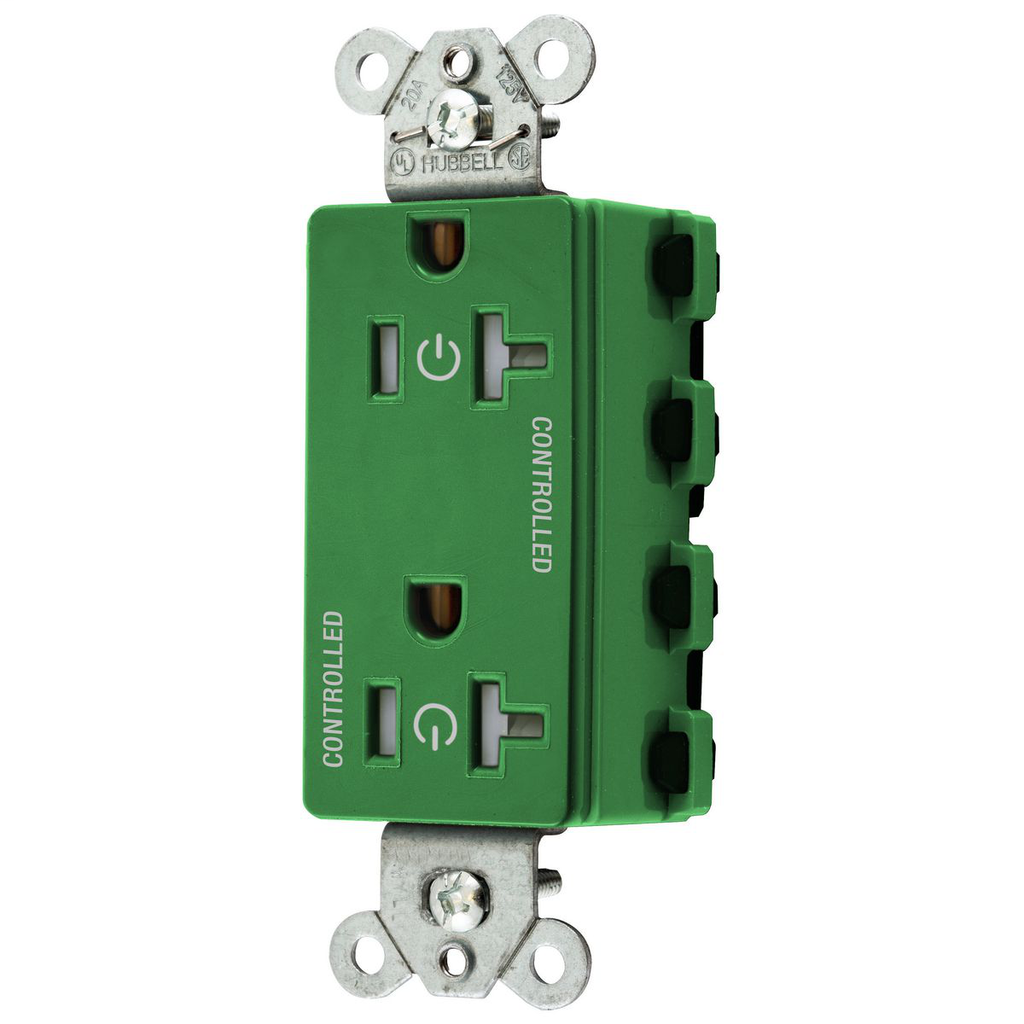

HWDK SNAP2162C2GNTRA 2/2 SNAP CONTR
Product image thumbnail 0
Product image thumbnail 1
$27.96/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP2162C2GNTRA
North Coast Part # 1612543

Features

  • Permanently marked with universal power symbol and the word "CONTROLLED" to visually identify receptacles used in automatic energy management systems
  • Patented TR design eliminates plug-in difficulty and TR complaints
  • Markings can be read regardless of mounting orientation
  • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
  • Complements Hubbell's Load:Logic® control system or other available energy management system
  • Two Controlled Faces

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Each - Height: 1.700 in
  • Each - Length: 4.300 in
  • Each - Width: 1.900 in
  • Height: 1.1 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186, ASHRAE Energy Efficiency Standard 90.1 2010;California Title 24 2013
  • Length: 3.28 in
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: SNAPConnect Permanently Marked
  • Color: Green
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.64 in x 1.1 in
  • Special Features: Two Controlled Faces
  • Standard: Certified to CSA, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186, ASHRAE Energy Efficiency Standard 90.1 2010; California Title 24 2013
  • Type: Tamper-Resistant
  • Voltage Rating: 125 V
  • Wattage: 2500 W
  • Wire Size: #12 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.64 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358558364
Item Long Description Straight Blade Devices, Receptacles, Style Line Decorator Duplex, SNAPConnect, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, Nylon, Green
GTiN 00783585583648
Length 3.28 in
Width 1.64 in
Color Green
Voltage 125 Volt
Type Tamper-Resistant
Material Nylon
Number of Conductors 3
Product Series Permanently Marked Receptacles
Height 1.1 in
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Size 3.28 in x 1.64 in x 1.1 in
Applications SNAPConnect Permanently Marked
Wire Size 12 AWG
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
