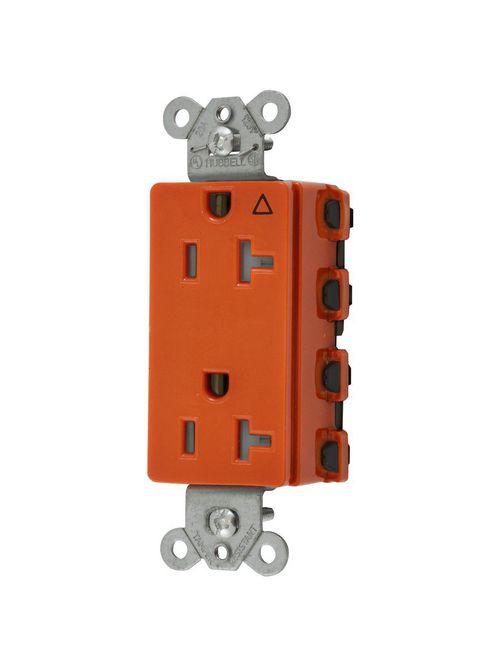

HWDK SNAP2162IGTRA SNAPCONNECT DECO
Product image thumbnail 0
Product image thumbnail 1
$30.91/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP2162IGTRA
North Coast Part # 1428201

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Isolated Ground, Tamper-Resistant

Specifications

General

  • Application: Extra Heavy Duty Specification Grade
  • Color: Orange
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Style Line Decorator
  • Material: Nylon
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current | Electrical: Dielectric Voltage- Withstands 2,000V minimum | Mechanical: Product Identification Ratings are a permanent part of the device | Environmental: Flammability- UL 94V-2 | Environmental: Operating Temperature- Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: Extra Heavy Duty
  • Style: Style Line Decorator
  • Type: Tamper-Resistant
  • UPC: 783585551821

Dimensions

  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Display Size: Standard Sized Product
  • Height: 1.1 in
  • Length: 3.28 in
  • Weight: 0.2 lb
  • Width: 1.64 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Connectorized
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Conductors: 3-Wire Grounding
  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358555182
GTiN 00783585551821
Length 3.28 in
Width 1.64 in
Color Orange
Voltage 125 Volt
Type Tamper-Resistant
Material Nylon
Number of Conductors 3
Product Series Extra Heavy Duty
Height 1.1 in
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Weight 0.2 lb
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Enclosure Material Stainless Steel
Size 3.28 in x 1.64 in x 1.1 in
Applications Extra Heavy Duty Specification Grade
Wire Size 12 AWG
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
