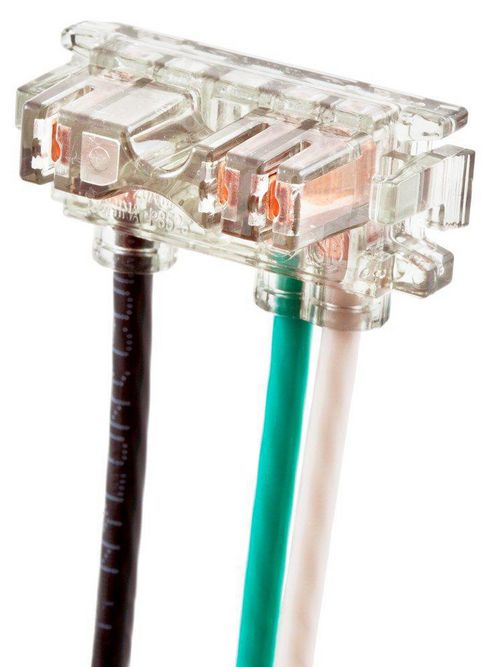

Hubbell Wiring Devices SNAP2RNA 6 Inch 12 AWG Stranded Lead Clear Polycarbonate Right Angle Pigtailed Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3.43/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP2RNA
North Coast Part # 755158

Features

  • Transparent housing to inspect contacts
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design

Specifications

General

  • Application: Quick Connection
  • Color: Clear
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: SNAPConnect Connector
  • Material: Polycarbonate
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current | Electrical: Dielectric Voltage- Withstands 2,000V minimum | Mechanical: Product Identification Ratings are a permanent part of the device | Environmental: Flammability- UL 94V-2 | Environmental: Operating Temperature- Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: Extra Heavy Duty
  • Type: Pigtailed Connector
  • UPC: 783585251974

Dimensions

  • Dimensions: 1.48 in x 0.78 in x 0.63 in
  • Display Size: Standard
  • Height: 0.63 in
  • Length: 1.48 in
  • Weight: 0.05 lb
  • Width: 0.78 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Connectorized
  • Current / Amperage Rating: 15 A - 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Conductor Related

  • Conductor Range: Pre-Wired #12 THHN
  • Number Of Conductors: 3-Wire Grounding
  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 20

Overview

UPC 78358525197
GTiN 00783585251974
Length 1.48 in
Width 0.78 in
Size Standard
Color Colorless
Voltage 125 Volt
Type SNAPConnect Connector
Material Polycarbonate
Number of Conductors 3-Wire Grounding
Product Series Extra Heavy Duty
Applications Quick Connection
Height 0.63 in
Temperature Rating -40 to 75/-25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 20
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Weight 0.05 lb
Standard UL,CSA,NEMA WD-6,UL498 File No. E2186,Fed. Spec. W-C-596,C22.2,No. 42 File 285
