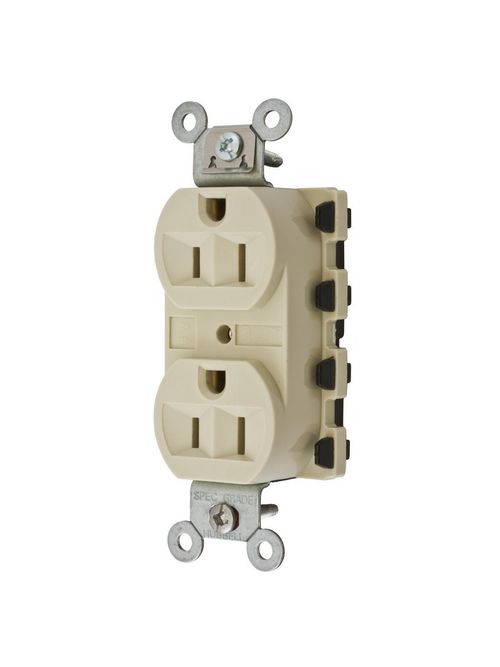

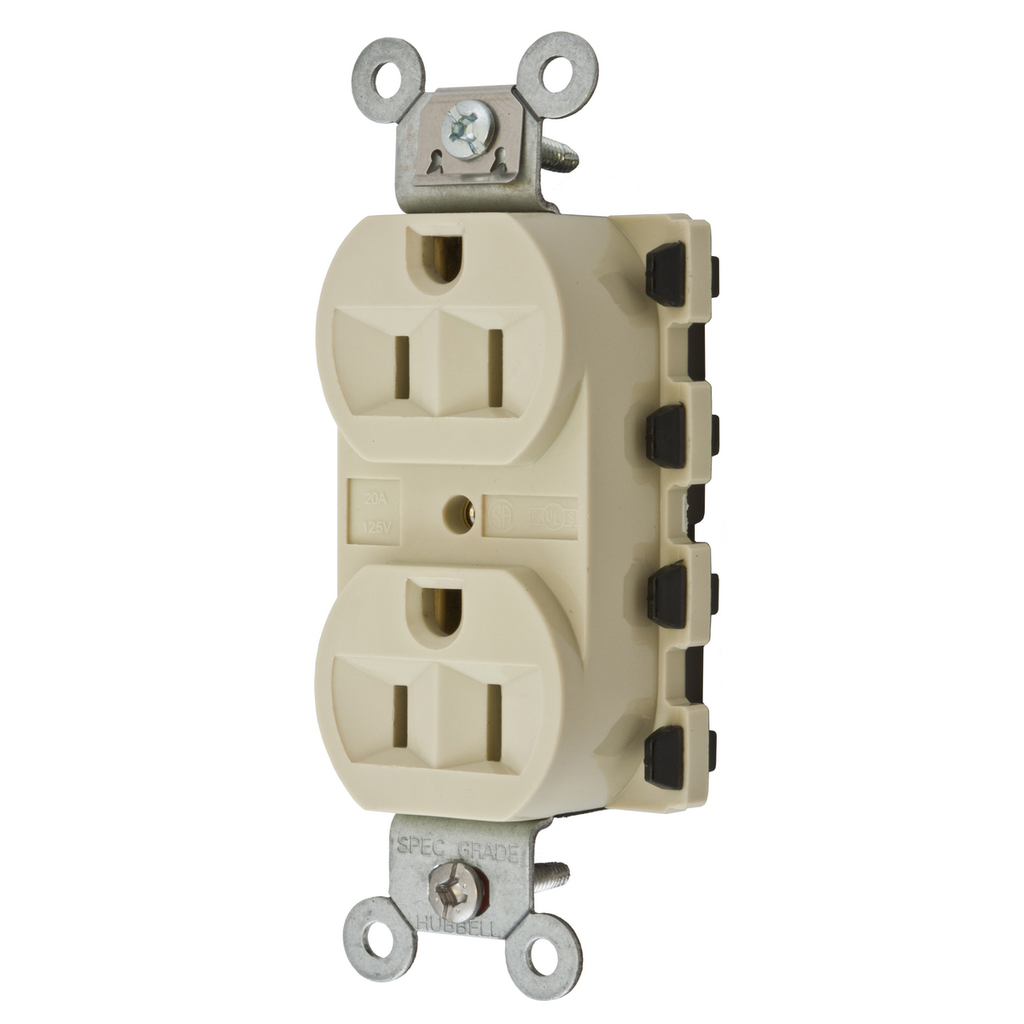

HCI SNAP5262IA SNAP2CONNECT 15A/125
$17.47/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP5262IA
North Coast Part # 762098

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
  • Quick Connect- SNAPConnect

Performance

  • Environmental: Operating Temperature- Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical: Product Identification Ratings are a permanent part of the device
  • Electrical: Dielectric Voltage- Withstands 2,000V minimum
  • Electrical: Current Interrupting- Certified for current interrupting at full rated current
  • Environmental: Flammability- UL 94V-2

Industry Standard(s)

  • UL Listed to UL498 File No. E2186
  • NEMA® WD-6 Compliant
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596

Specifications

  • Amperage Rating: 15 A
  • Application: Extra Heavy Duty Specification Grade
  • Carton Quantity: 10 EA
  • Color: Ivory
  • Connectivity: Connectorized
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Display Size: Standard Sized Product
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Height: 1.1 in
  • Horsepower - Maximum: 0.5
  • Item Type: Finder Groove Face
  • Length: 3.28 in
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Minimum Order Quantity: 1 EA
  • Nema Rating: 5-15R
  • Number Of Conductors: 3-Wire Grounding
  • Number Of Poles: 2-Pole
  • Number Of Wires: 3-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Phase: Single Phase
  • Product Family: Straight Blade Devices
  • SAP Material Group 5: A10
  • Series: Extra Heavy Duty
  • Style: Finder Groove Face
  • Type: Standard Duplex
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W
  • Width: 1.64 in
  • Wire Size: #12 AWG
  • EU RoHS Indicator: Yes
  • Each - Length: 4.160 in
  • Each - Height: 1.660 in
  • Each - Width: 1.910 in
  • Size: 3.28 in x 1.64 in x 1.1 in
  • Special Features: Quick Connect- SNAPConnect
  • Standard: Certified to CSA, C22.2, No. 42 File 285 || Fed. Spec. W-C-596 || NEMA® WD-6 Compliant || UL Listed to UL498 File No. E2186

Overview

UPC 78358524781
GTiN 00783585247816
Length 3.28 in
Width 1.64 in
Size 3.28 in x 1.64 in x 1.1 in
Color Ivory
Voltage 125 Volt
Type Ard Duplex,St
Material Nylon
Number of Conductors 3
Product Series Extra Heavy Duty
Applications Extra Heavy Duty Specification Grade
Height 1.1 in
Wire Size 12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Connectorized
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
