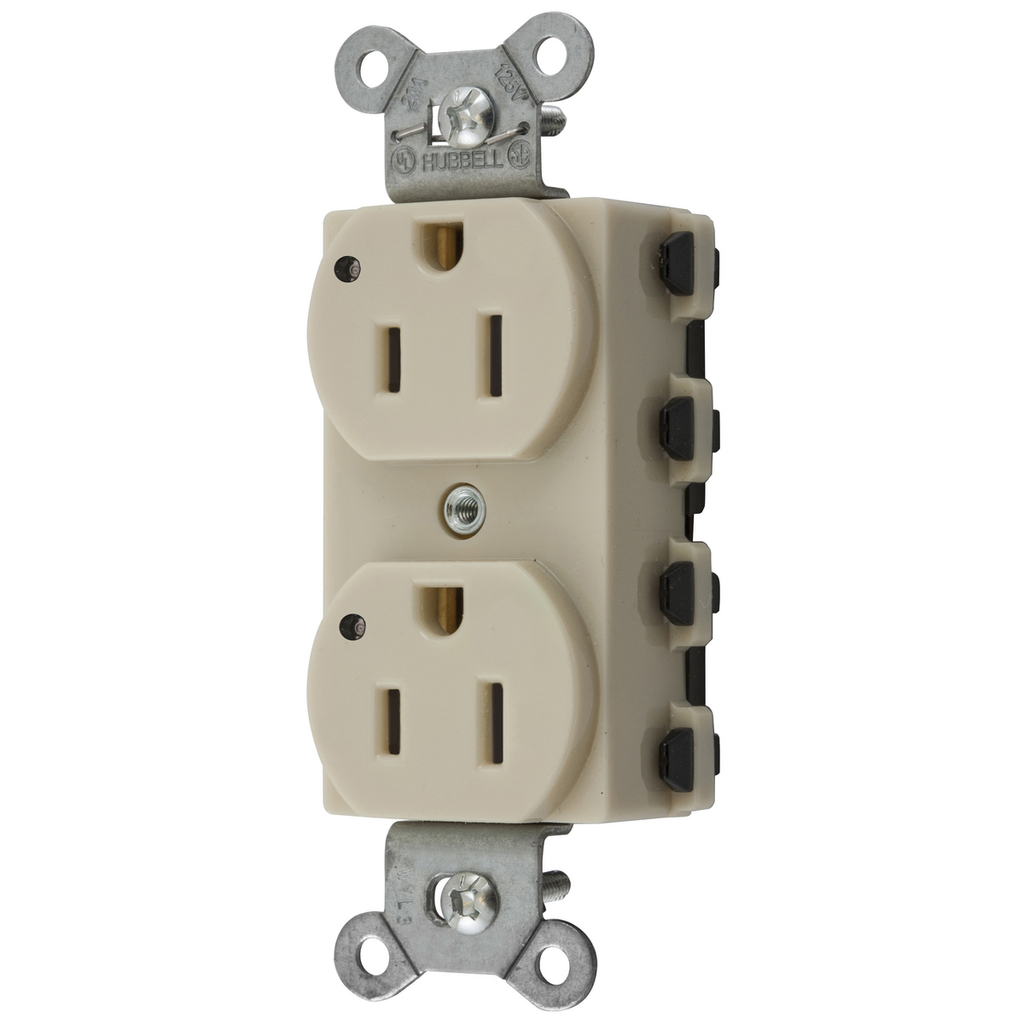

HWDK SNAP5262IL SNAP2CONNECT DPLX 1
$22.71/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP5262IL
North Coast Part # 1348741

Features

  • Green LED Power Indicators
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
  • Quick Connect- SNAPConnect, LED Indicator, USA Product

Performance

  • Mechanical: Product Identification Ratings are a permanent part of the device
  • Environmental: Flammability- UL 94V-2
  • Electrical: Dielectric Voltage- Withstands 2,000V minimum
  • Electrical: Current Interrupting- Certified for current interrupting at full rated current
  • Environmental: Operating Temperature- Maximum continuous 75°C, minimum -40°C (w/o impact)

Industry Standard(s)

  • UL Listed to UL498 File No. E2186
  • NEMA® WD-6 Compliant
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596

Specifications

  • Amperage Rating: 15 A
  • Application: Extra Heavy Duty Specification Grade
  • Carton Quantity: 10
  • Color: Ivory
  • Connectivity: Connectorized
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Display Size: Standard Sized Product
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Height: 1.1 in
  • Horsepower - Maximum: 0.5
  • Indicator(s) Type: Green LED
  • Item Type: Smooth Face
  • Length: 3.28 in
  • Material: Nylon
  • Minimum Order Quantity: 1 EA
  • Nema Rating: 5-15R
  • Number Of Conductors: 3-Wire Grounding
  • Number Of Poles: 2-Pole
  • Number Of Wires: 3-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Phase: Single Phase
  • Product Family: Straight Blade Devices
  • SAP Material Group 5: A10
  • Series: Extra Heavy Duty
  • Style: Smooth Face
  • Type: Power Indicating LED
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W
  • Width: 1.64 in
  • Wire Size: #12 AWG
  • EU RoHS Indicator: Contact Manufacturer
  • Each - Length: 4.160 in
  • Each - Height: 1.660 in
  • Each - Width: 1.910 in

Overview

UPC 78358519309
GTiN 00783585193090
Length 3.28 in
Width 1.64 in
Color Ivory
Voltage 125 Volt
Type Power Indicating LED
Material Nylon
Number of Conductors 3
Product Series Extra Heavy Duty
Height 1.1 in
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Size 3.28 in x 1.64 in x 1.1 in
Applications Extra Heavy Duty Specification Grade
Wire Size 12 AWG
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
