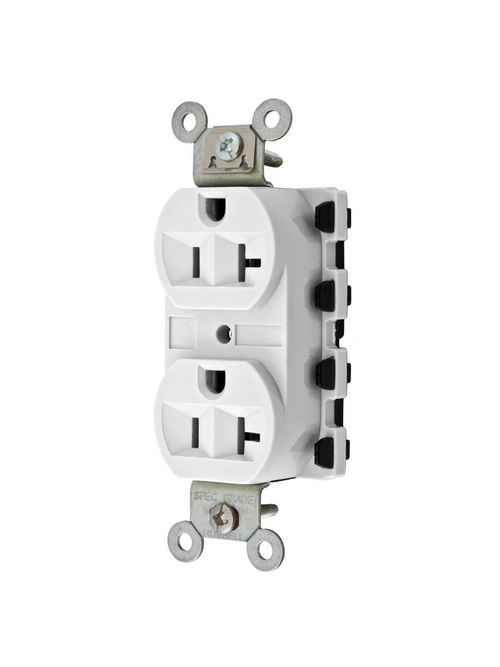

Hubbell Wiring Devices SNAP5362WA 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP5362WA
North Coast Part # 779245


  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
  • Quick Connect- SNAPConnect


  • Environmental: Operating Temperature- Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical: Product Identification Ratings are a permanent part of the device
  • Electrical: Dielectric Voltage- Withstands 2,000V minimum
  • Environmental: Flammability- UL 94V-2
  • Electrical: Current Interrupting- Certified for current interrupting at full rated current

Industry Standard(s)

  • UL Listed to UL498 File No. E2186
  • Certified to CSA, C22.2, No. 42 File 285
  • NEMA® WD-6 Compliant
  • Fed. Spec. W-C-596


  • Amperage Rating: 20 A
  • Application: Extra Heavy Duty Specification Grade
  • Carton Quantity: 10 EA
  • Color: White
  • Connectivity: Connectorized
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Display Size: Standard Sized Product
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Height: 1.1 in
  • Horsepower - Maximum: 1
  • Item Type: Finder Groove Face
  • Length: 3.28 in
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Minimum Order Quantity: 1 EA
  • Nema Rating: 5-20R
  • Number Of Conductors: 3-Wire Grounding
  • Number Of Poles: 2-Pole
  • Number Of Wires: 3-Wire
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Phase: Single Phase
  • Product Family: Straight Blade Devices
  • SAP Material Group 5: A10
  • Series: Extra Heavy Duty
  • Style: Finder Groove Face
  • Type: Standard Duplex
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W
  • Width: 1.64 in
  • Wire Size: #12 AWG
  • EU RoHS Indicator: Yes
  • Each - Length: 4.160 in
  • Each - Height: 1.660 in
  • Each - Width: 1.910 in
  • Size: 3.28 in x 1.64 in x 1.1 in
  • Special Features: Quick Connect- SNAPConnect
  • Standard: Certified to CSA, C22.2, No. 42 File 285 || Fed. Spec. W-C-596 || NEMA® WD-6 Compliant || UL Listed to UL498 File No. E2186


UPC 78358524770
GTiN 00783585247700
Length 3.28 in
Width 1.64 in
Size 3.28 in x 1.64 in x 1.1 in
Color White
Voltage 125 Volt
Type Ard Duplex,St
Material Nylon
Number of Conductors 3
Product Series Extra Heavy Duty
Applications Extra Heavy Duty Specification Grade
Height 1.1 in
Wire Size 12 AWG
Wattage 2500 Watt
Temperature Rating -40 Degrees C to 75 Degrees C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pre-Wired Connector
Dielectric Strength Withstands 2,000V minimum
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Receptacles
Environmental Conditions Indoor Dry Unless Protected By Additional Means
