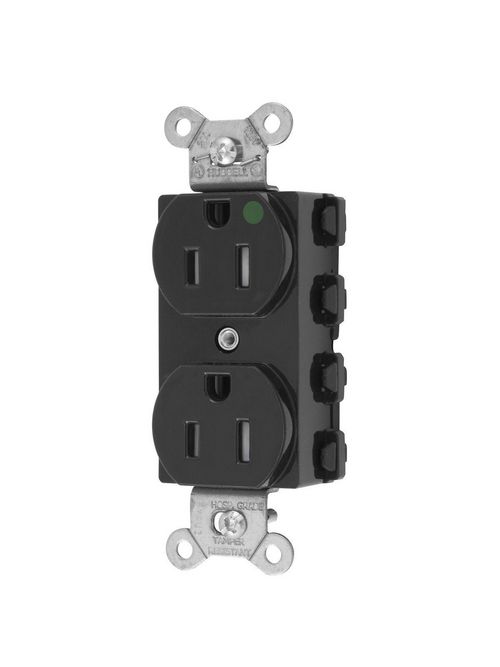

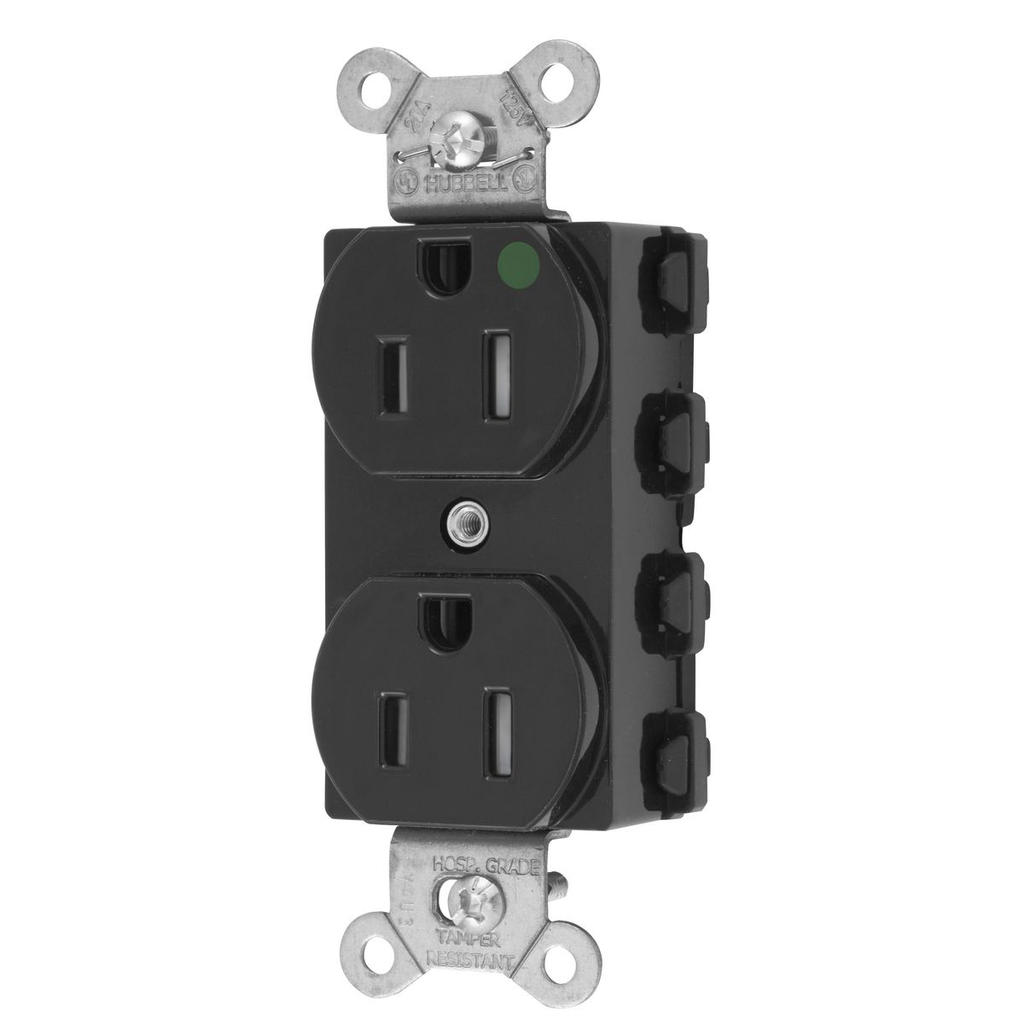

HWDK SNAP8200BKTRA S-CONNECT DUP HG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$38.30/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP8200BKTRA
North Coast Part # 1829545

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Tamper-Resistant
  • Assembled in USA
  • Quick Connect- SNAPConnect, Tamper Resistant

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Each - Height: 1.700 in
  • Each - Length: 4.200 in
  • Each - Width: 1.900 in
  • Height: 1.1 in
  • Horsepower - Maximum: 0.5
  • Industry Standard(s): CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 3.28 in
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: Hospital Grade
  • Color: Black
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-15R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.64 in x 1.1 in
  • Special Features: Quick Connect- SNAPConnect, Tamper Resistant
  • Standard: CSA Certified, C22.2, No. 42 File 285; Fed. Spec. W-C-596; NEMA® WD-6 Compliant; UL Listed to UL498 File No. E2186
  • Type: Tamper-Resistant
  • Voltage Rating: 125 V
  • Wattage: 1875 W
  • Wire Size: #12 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.64 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358555317
Item Long Description Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Hospital Grade,Tamper Resistant, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Nylon, Black, USA
GTiN 00783585553177
Length 3.28 in
Width 1.64 in
Color Black
Voltage 125 Volt
Type Tamper-Resistant
Material Nylon
Number of Conductors 3
Product Series Hospital Grade
Height 1.700 in
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Weight 0.2 lb
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Enclosure Material Stainless Steel
Size 3.28 in x 1.64 in x 1.1 in
Applications Hospital Grade
Wire Size 12 AWG
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
