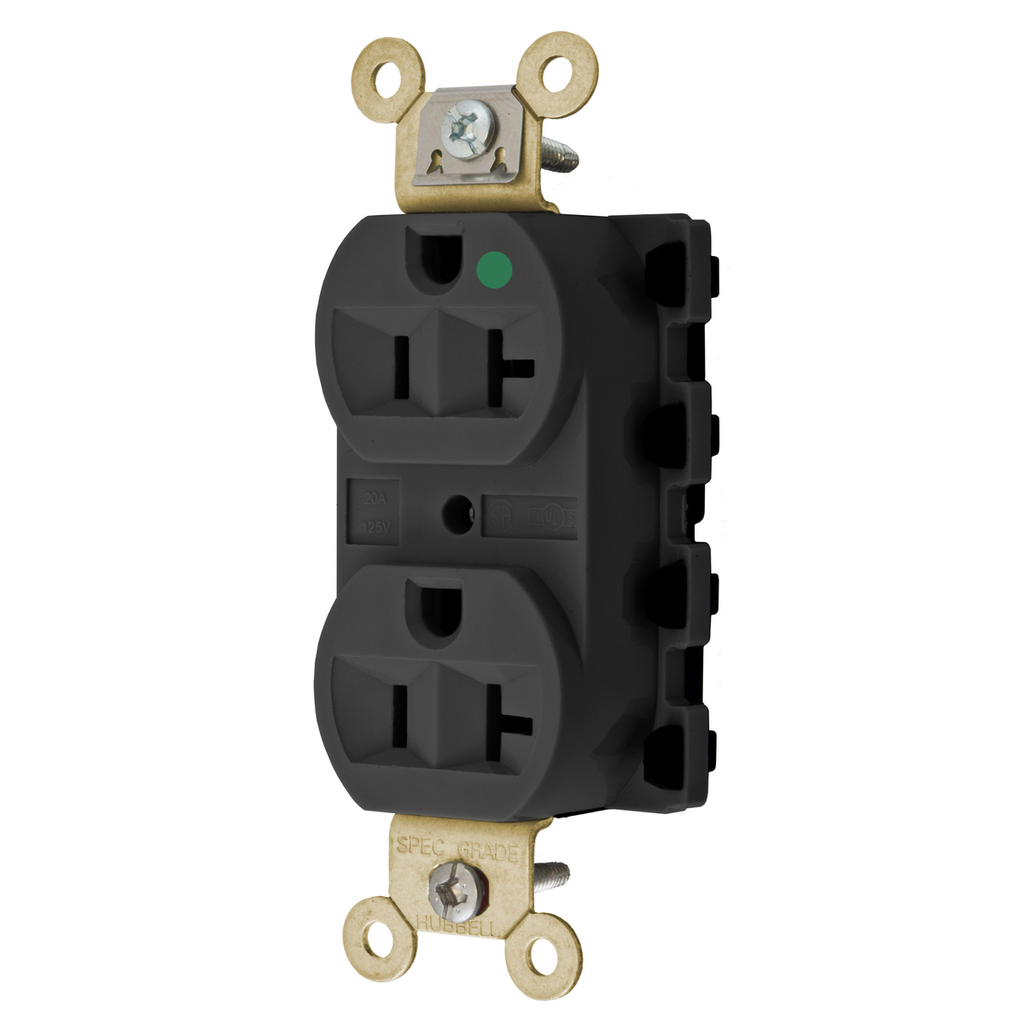

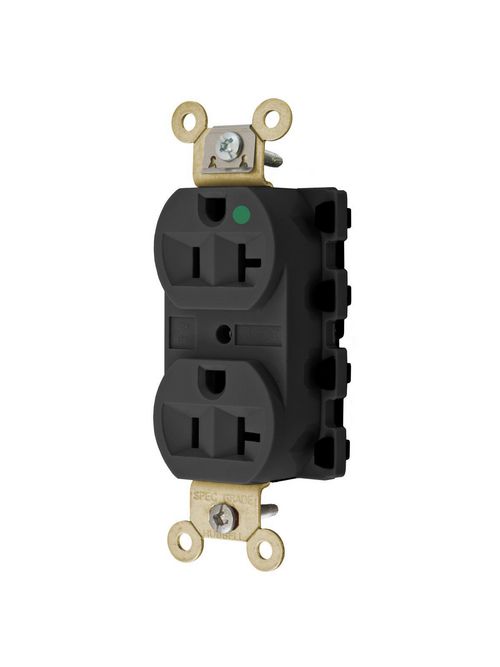

HCI SNAP8300BKA SNAP2CONNECT 20A/12
$25.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP8300BKA
North Coast Part # 1276191

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design

Specifications

General

  • Application: Hospital Grade
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Finder Groove Face
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current | Electrical: Dielectric Voltage- Withstands 2,000V minimum | Mechanical: Product Identification Ratings are a permanent part of the device | Environmental: Flammability- UL 94V-2 | Environmental: Operating Temperature- Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: Hospital Grade
  • Style: Finder Groove Face
  • Type: Standard Duplex
  • UPC: 783585247670

Dimensions

  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Display Size: Standard Sized Product
  • Height: 1.1 in
  • Length: 3.28 in
  • Weight: 0.2 lb
  • Width: 1.64 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Connectorized
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Conductors: 3-Wire Grounding
  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358524767
GTiN 00783585247670
Length 3.28 in
Width 1.64 in
Size Standard
Color Black
Voltage 125 Volt
Type Traditional
Material Thermoplastic
Number of Conductors 3
Product Series Hospital Grade
Applications Hospital Grade
Height 1.1 in
Wire Size 12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Connectorized
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Quick Connect, SnapConnect
Conductor Size 12 AWG
Mounting Type Screw
Grade Hospital
Weight 0.2 lb
Standard UL498 File No. E2186,Fed. Spec. W-C-596,CSA,UL,NEMA WD-6,C22.2,No. 42 File 285
Connection Type Connectorized
Enclosure Material Stainless Steel
