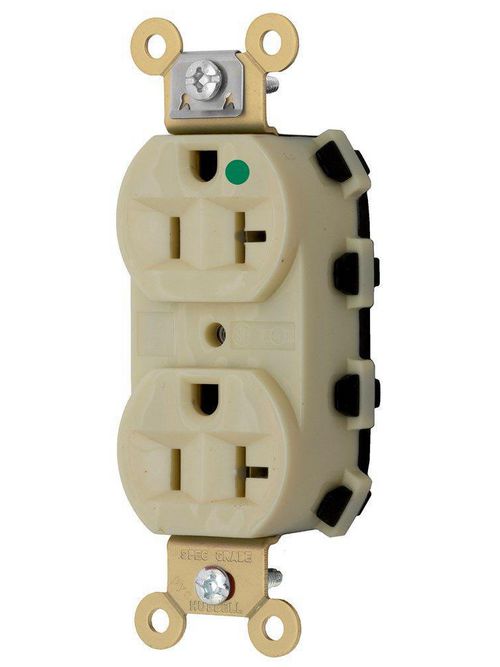

Hubbell Wiring Devices SNAP8300I SNAPConnect 125 Volt 20 Amp Ivory Hospital Grade Receptacle
Product image thumbnail 0
Product image thumbnail 1
$21.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP8300I
North Coast Part # 349265

Specifications

  • Product Type: snapconnect
  • Mounting Screw Material: Steel-Zinc Plated
  • SNAPConnect Duplex Voltage: 125V
  • Weight in LBs: 0.250
  • Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
  • Power Contacts Material: Brass- Triple Wipe
  • Wiring Method: SNAPConnect Terminal
  • Terminal Identification: Terminal Wire Leads- Identified in accordance with UL 498 (Black, White, Green)
  • Mounting Strap Material: Galvanized Steel
  • SNAPConnect Duplex Amperage: 20A
  • SNAPConnect Product: Hospital Grade Duplex Receptacle
  • Poles and Wires: 2-Pole, 3-Wire Grounding
  • Auto Ground Clip Material: Stainless Steel
  • Base Material: Nylon
  • Certification: UL Fed Spec, CSA
  • Color: ivory
  • Temperature Rise: Max 30deg C temperature rise at full rated current after 100 cycles of overload at 150% of rated DC current
  • Terminal Accommodation: Accommodates SNAPConnect Terminal Only
  • Certified: UL Listed to UL 498, Fed Spec WC596, Certified to CSA 22.2, No. 42
  • Dielectric Voltage: Withstands 2,000V minimum.
  • Other Available Colors: Almond, Black, Brown, Gray, Ivory, Light Almond, Office White, Red, White
  • Flammability: UL 94V-2
  • Current Interrupting: Receptacle rated for current interrupting at full rated current with equivalently rated NEMA plug.
  • NEMA No.: 5-20R
  • Product Identification: Ratings are a permanent part of the device.
  • Top Material: Nylon

Product Type

Color

NEMA Configuration

Product Drawings / Installation Instructions

Product

Overview

UPC 78358535711
Color Ivory
Operating Temperature -40 C
Weight 0.250 lb
Base Material Nylon
Family Brand Name Hubbell
Wire Count 3
NEMA 5-20R
Certifications CSA,UL Fed Spec
Number of Poles 2 Pole
Screw Material Steel, Zinc Plated
