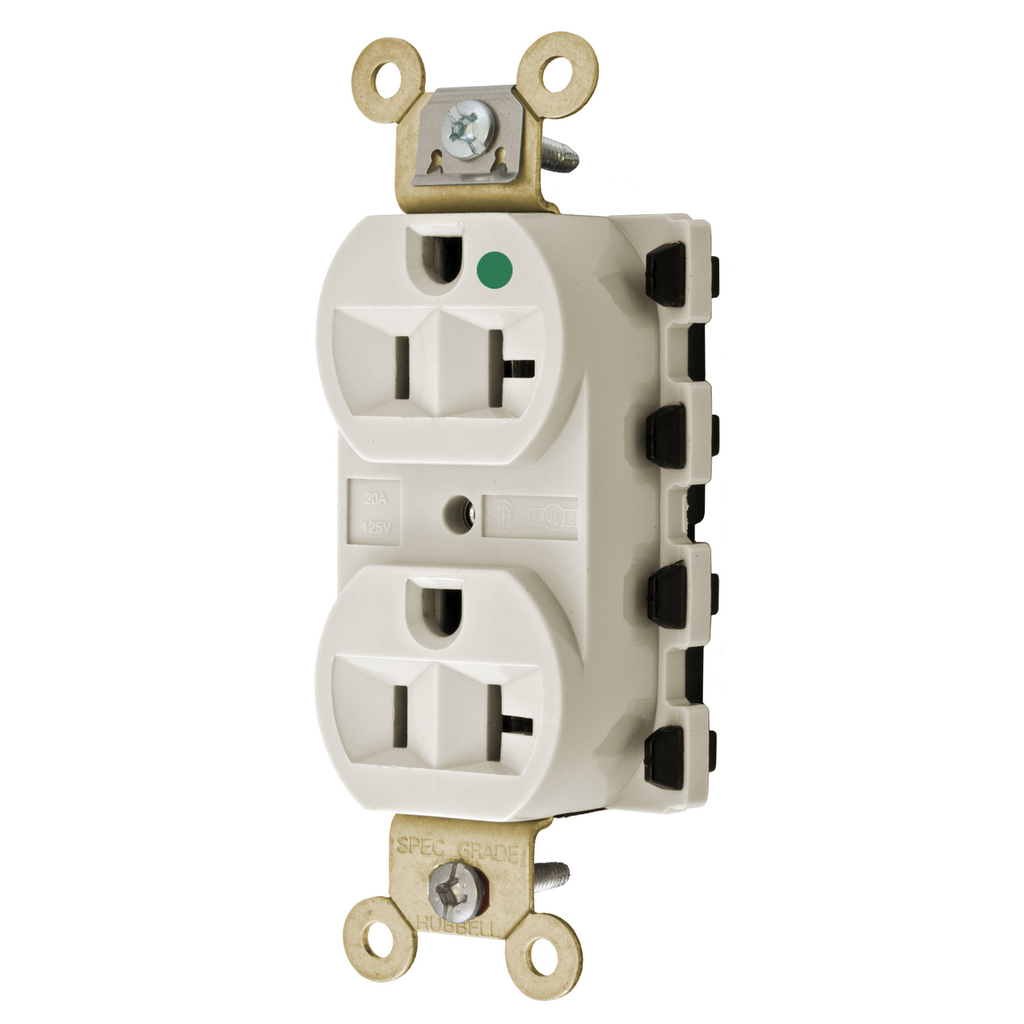

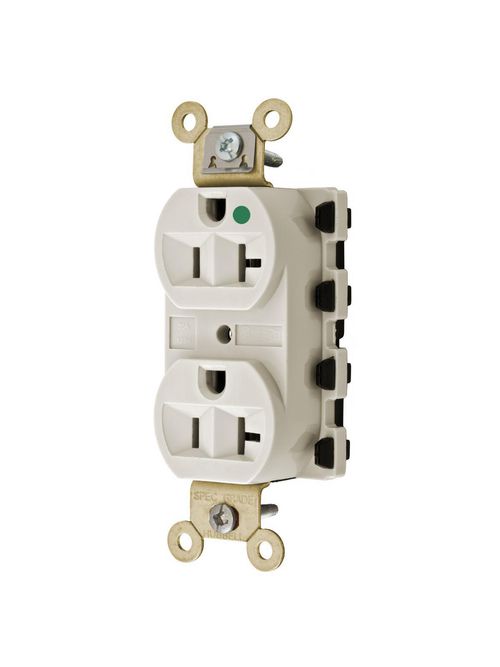

HWDK SNAP8300LAA SNAP2CONNECT 20A/1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$28.26/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP8300LAA
North Coast Part # 1276192

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
  • Quick Connect- SNAPConnect

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.1 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 3.28 in
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
  • Amperage Rating: 20 A
  • Application: Hospital Grade
  • Color: Light Almond
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.64 in x 1.1 in
  • Special Features: Quick Connect- SNAPConnect
  • Standard: CSA Certified, C22.2, No. 42 File 285Fed. Spec. W-C-596NEMA® WD-6 CompliantUL Listed to UL498 File No. E2186
  • Type: Standard Duplex
  • Voltage Rating: 125 V
  • Wattage: 2500 W
  • Wire Size: #12 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.64 in
  • Nema Rating: 5-20R
  • Number Of Conductors: 3-Wire Grounding
  • Number Of Wires: 3-Wire
  • Connectivity: Connectorized
  • Current Rating: 20 A
  • Display Size: Standard Sized Product
  • Weight: 0.2 lb
  • Item Type: Finder Groove Face
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Hospital Grade
  • Style: Finder Groove Face

Certifications

  • EU RoHS Indicator: Yes

Overview

GTiN 00783585247649
Length 3.28 Inch
Width 1.910 in
Size Standard
Color Light Almond
Voltage 125 Volt
Type Traditional
Material Thermoplastic
Number of Conductors 3
Product Series Hospital Grade
Applications Hospital Grade
Height 1.1 Inch
Wire Size 12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Connectorized
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Quick Connect, SnapConnect
Product UPC 78358524764
Conductor Size 12 AWG
Mounting Type Screw
Grade Hospital
Weight 0.2 lb
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Connection Type Connectorized
Enclosure Material Stainless Steel
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Country of Origin China
