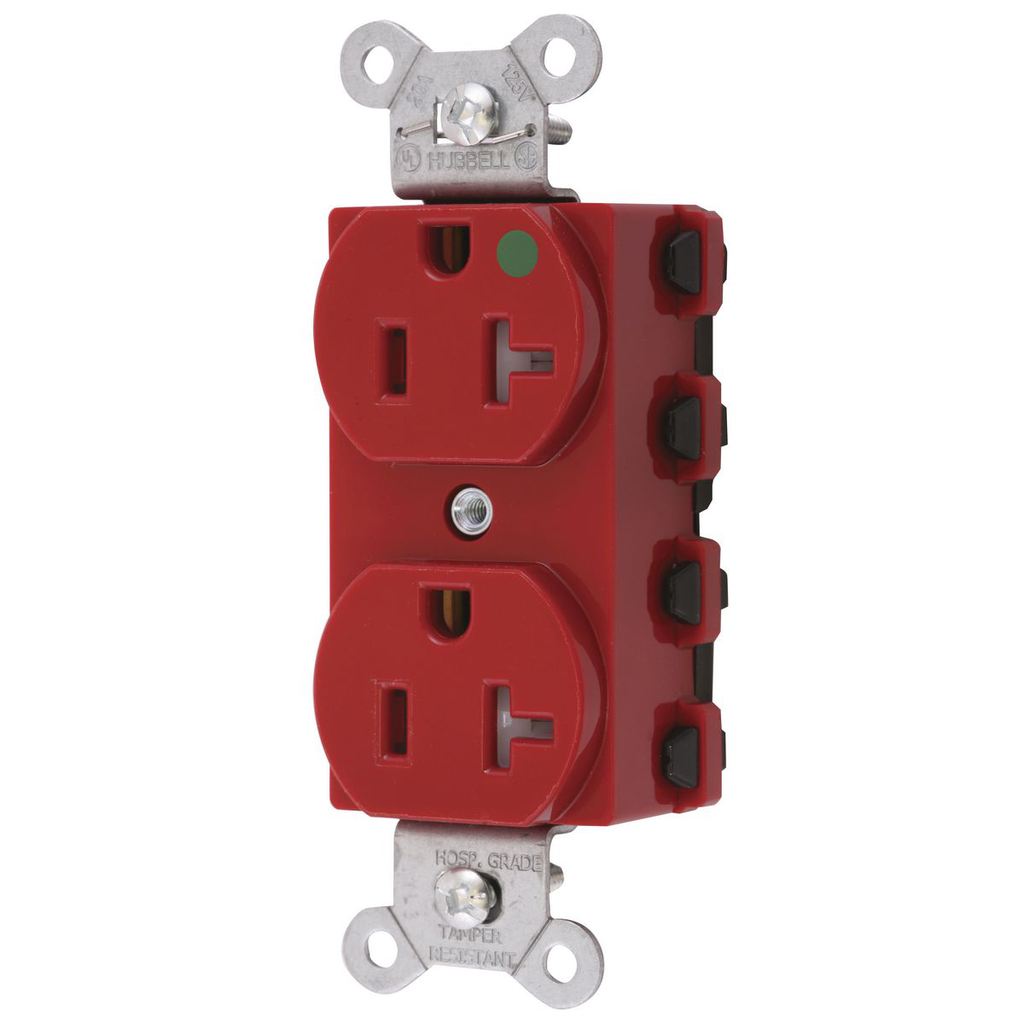

HWDK SNAP8300RTRA SNAP2CONNECT DPLX
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$42.47/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP8300RTRA
North Coast Part # 1272490

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Tamper-Resistant
  • Assembled in USA
  • Quick Connect- SNAPConnect, Tamper Resistant

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.64 in x 1.1 in
  • Each - Height: 1.700 in
  • Each - Length: 4.400 in
  • Each - Width: 1.900 in
  • Height: 1.1 in
  • Horsepower - Maximum: 1
  • Industry Standard(s): CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
  • Length: 3.28 in
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
  • Amperage Rating: 20 A
  • Application: Hospital Grade
  • Color: Red
  • Dielectric Strength: Withstands 2,000V minimum
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire
  • Phase: Single Phase
  • Size: 3.28 in x 1.64 in x 1.1 in
  • Special Features: Quick Connect- SNAPConnect, Tamper Resistant
  • Standard: CSA Certified, C22.2, No. 42 File 285Fed. Spec. W-C-596NEMA® WD-6 CompliantUL Listed to UL498 File No. E2186
  • Type: Tamper-Resistant
  • Voltage Rating: 125 V
  • Wattage: 2500 W
  • Wire Size: #12 AWG
  • Voltage Rating Description: 125 V
  • Width: 1.64 in
  • Nema Rating: 5-20R
  • Number Of Conductors: 3-Wire Grounding
  • Number Of Wires: 3-Wire
  • Connectivity: Connectorized
  • Current Rating: 20 A
  • Display Size: Standard Sized Product
  • Weight: 0.2 lb
  • Item Type: Smooth Face
  • Material: Nylon
  • Number Of Poles: 2-Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Hospital Grade
  • Style: Smooth Face

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783585553627
Length 3.28 Inch
Width 1.900 in
Size 3.28 in x 1.64 in x 1.1 in
Color Red
Voltage 125 Volt
Type Non-Reversing
Material Nylon
Number of Conductors 3
Product Series Hospital Grade
Applications Hospital Grade
Height 1.1 Inch
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Product UPC 78358555362
Weight 0.2 lb
Standard C22.2,CSA,Fed. Spec. W-C-596,NEMA WD-6,No. 42 File 285,UL,UL498 File No. E2186
Enclosure Material Stainless Steel
Wire Size 12 AWG
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Country of Origin USA
