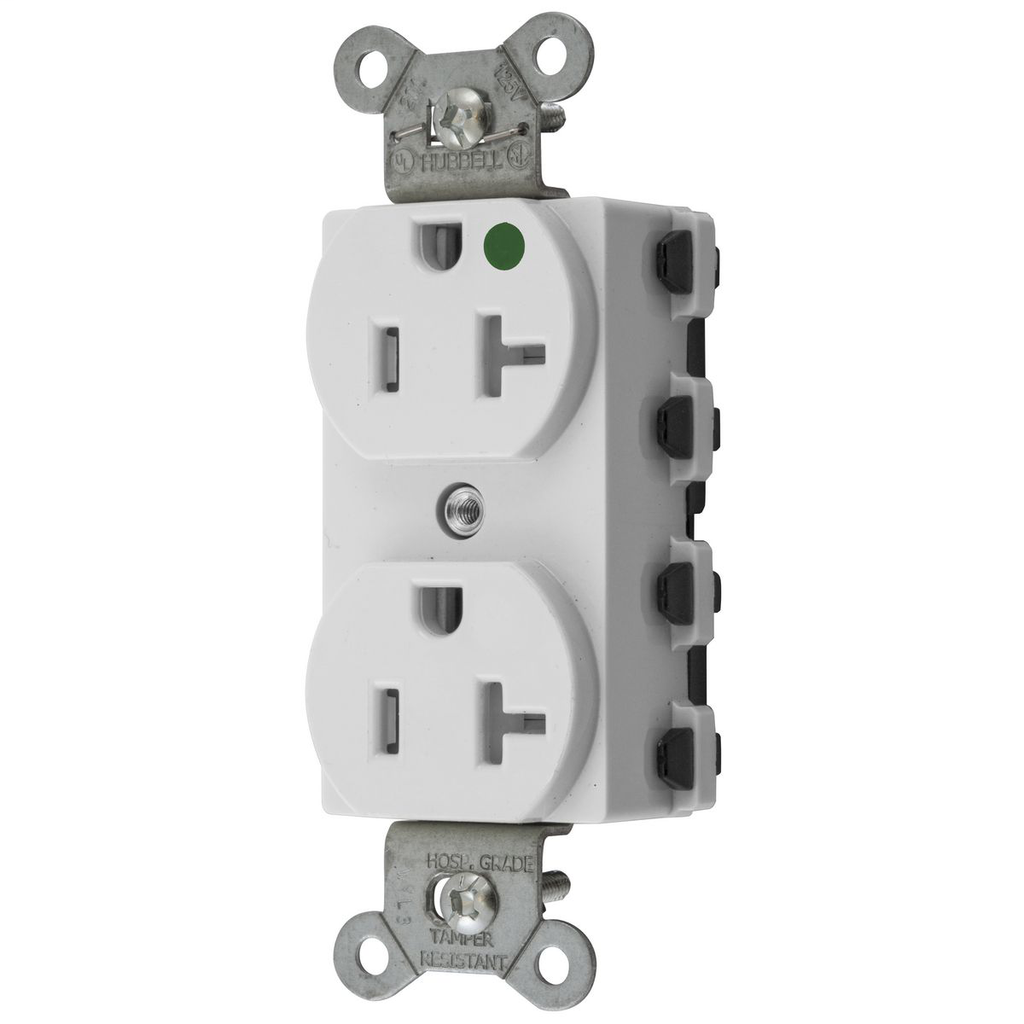

HWDK SNAP8300WTRA SNAPCONNECT DUP H

Features

• Audible SNAP, indicates solid connection
• Reduces installation time
• Tamper-Resistant
• Assembled in USA

Specifications

General

• Application: Hospital Grade
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 1
• Item Type: Smooth Face
• Material: Nylon
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current | Electrical: Dielectric Voltage- Withstands 2,000V minimum | Mechanical: Product Identification Ratings are a permanent part of the device | Environmental: Flammability- UL 94V-2 | Environmental: Operating Temperature- Maximum continuous 75°C | minimum -40°C (w/o impact)
• Series: Hospital Grade
• Style: Smooth Face
• Type: Tamper-Resistant
• UPC: 783585553672

Dimensions

• Dimensions: 3.28 in x 1.64 in x 1.1 in
• Display Size: Standard Sized Product
• Height: 1.1 in
• Length: 3.28 in
• Weight: 0.2 lb
• Width: 1.64 in

Electrical Ratings

• Amperage Rating: 20 A
• Connectivity: Connectorized
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 2500 W

Conductor Related

• Number Of Conductors: 3-Wire Grounding
• Number Of Wires: 3-Wire
• Wire Size: #12 AWG

Certifications and Compliance

• Industry Standard(s): CSA Certified, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
• Nema Rating: 5-20R

Logistics

• Carton Quantity: 10
