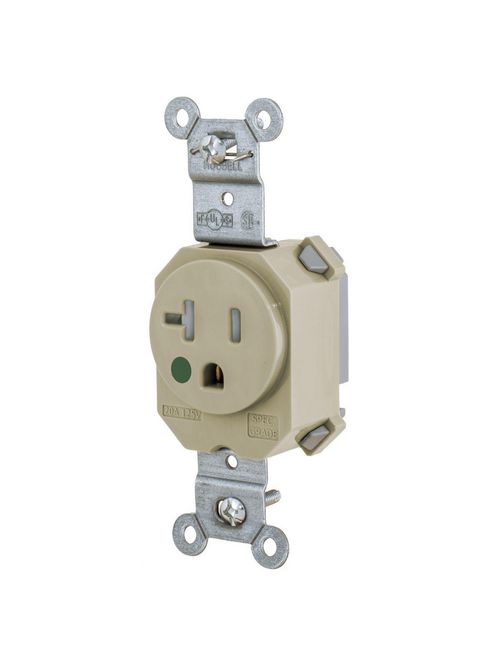

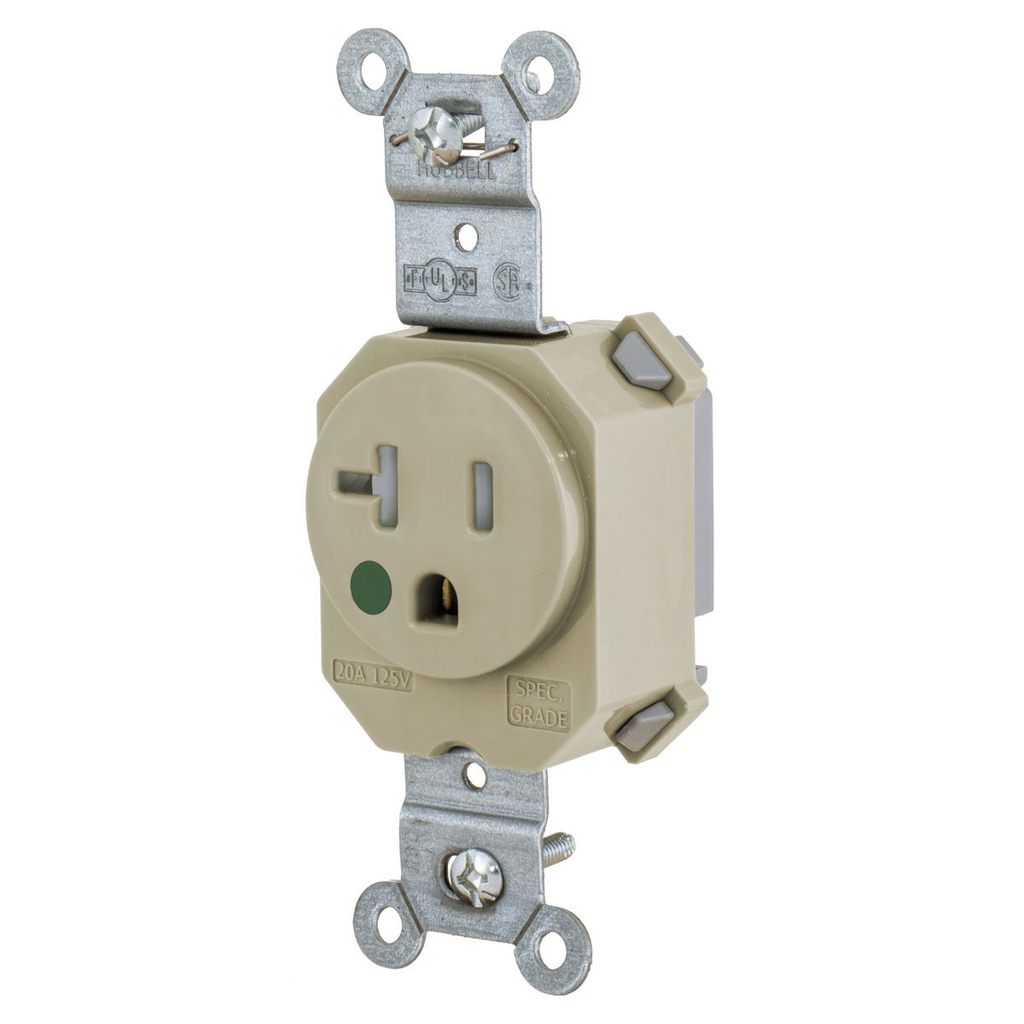

HWDK SNAP8310ITR SNAP SGL RCPT HG 5
$29.11/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP8310ITR
North Coast Part # 1494108

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Tamper-Resistant, Single Receptacle

Specifications

General

  • Application: Hospital Grade
  • Color: Ivory
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Smooth Face
  • Material: Nylon
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current | Electrical: Dielectric Voltage- Withstands 2,000V minimum | Mechanical: Product Identification Ratings are a permanent part of the device | Environmental: Flammability- UL 94V-2 | Environmental: Operating Temperature- Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: Hospital Grade
  • Style: Smooth Face
  • Type: Tamper-Resistant
  • UPC: 783585557649

Dimensions

  • Dimensions: 3.28 in x 1.625 in x 1.1 in
  • Display Size: Standard Sized Product
  • Height: 1.1 in
  • Length: 3.28 in
  • Weight: 0.15 lb
  • Width: 1.625 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Connectorized
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Conductors: 3-Wire Grounding
  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA, C22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358555764
GTiN 00783585557649
Length 3.28 in
Width 1.625 in
Color Ivory
Voltage 125 Volt
Type Single Receptacle
Material Nylon
Number of Conductors 3
Product Series Hospital Grade
Height 1.1 in
Wattage 2500 W
Family Brand Name Hubbell
Carton Qty 10
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Size Standard Sized Product
Applications Hospital Grade, Tamper Resistant
Weight 0.15 lb
Standard CSA,C22.2,UL498 File No. E2186,NEMA WD-6,UL,Fed. Spec. W-C-596,No. 42 File 285
TC Connection Terminal Screws
Enclosure Material Stainless Steel
Sub Brand Straight Blade Devices
