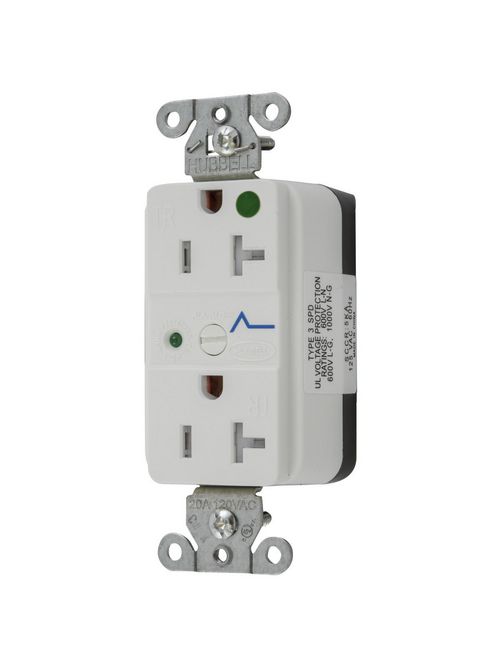

HCI SNAP8362WS HG SNAP SPD RCPT, 20
Product image thumbnail 0
Product image thumbnail 1
$100.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAP8362WS
North Coast Part # 1354439

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Surge supression, Tamper Resistant, LED Indicator

Specifications

General

  • Application: Hospital Grade
  • Color: White
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Smooth Face
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical: Current Interrupting- Certified for current interrupting at full rated current | Electrical: Dielectric Voltage- Withstands 2,000V minimum | Mechanical: Product Identification Ratings are a permanent part of the device | Environmental: Flammability- UL 94V-2 | Environmental: Operating Temperature- Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: Hospital Grade
  • Style: Smooth Face
  • Type: Surge Protection Receptacle
  • UPC: 783585252193

Dimensions

  • Dimensions: 3.31 in x 1.75 in x 1.52 in
  • Display Size: Standard Sized Product
  • Height: 1.52 in
  • Length: 3.31 in
  • Weight: 0.2 lb
  • Width: 1.75 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Connectorized
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related

  • Number Of Conductors: 3-Wire Grounding
  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to Specification C22.2 No. 42 | Listed to UL Standards 498 Receptacles | UL Listed File E2186
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358525219
GTiN 00783585252193
Length 3.31 in
Width 1.75 in
Size 3.31 in x 1.75 in x 1.52 in
Color White
Voltage 125 Volt
Type Surge Protection Receptacle
Material Nylon
Number of Conductors 3
Product Series Hospital Grade
Applications Hospital Grade
Height 1.52 in
Wire Size 12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Connectorized
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Weight 0.2 lb
Standard C22.2 No. 42,CSA,File E2186,UL,UL Standards 498 Receptacles
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
