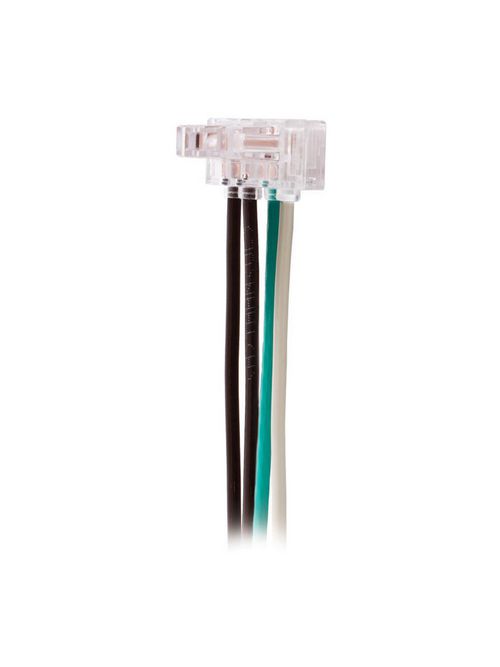

HWDK SNAPSPP2NA SWITCH,SNAP,CONN,SI
Product image thumbnail 0
Product image thumbnail 1
$4.72/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # SNAPSPP2NA
North Coast Part # 1166567

Features

  • Clear terminal housing
  • No exposed live parts
  • Fully insulated

Specifications

General

  • Color: Clear
  • Item Type: SNAPConnect Switch Pigtailed Connector
  • Series: Accessories
  • Style: For Single Pole pilot Light
  • Type: Pigtailed Connector
  • UPC: 783585186023

Dimensions

  • Dimensions: 6.5 in x 1.39 in x 0.84 in
  • Height: 0.84 in
  • Length: 6.5 in
  • Width: 1.39 in

Conductor Related

  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 20

Overview

UPC 78358518602
GTiN 00783585186023
Length 6.5 in
Width 1.39 in
Size 6.5 in x 1.39 in x 0.84 in
Color Colorless
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type Pigtailed Connector
Product Series Accessories
Applications SNAPConnect Heavy Duty Switch Connector
Height 0.84 in
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 20
TC Connection Connectorized
Contact Configuration Two Position
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50k
Sub Brand SNAPConnect Series
Standard UL
Voltage A or 20A 120/277 VAC
Environmental Conditions Indoor Dry unless protected by additional means
Action Positive Snap
