HWDK UFC0002 UGRD FEED CONN, .20"-.
$10.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # UFC0002
North Coast Part # 160479

Features

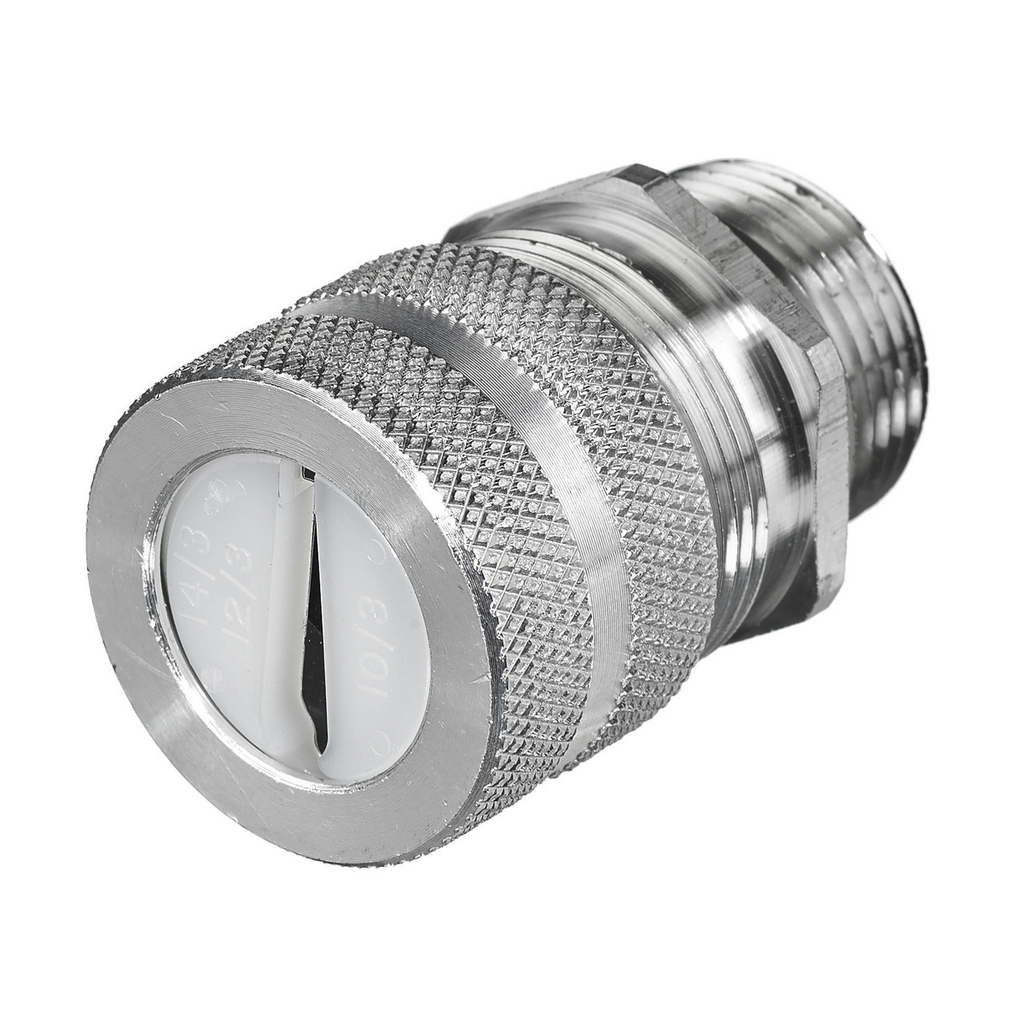

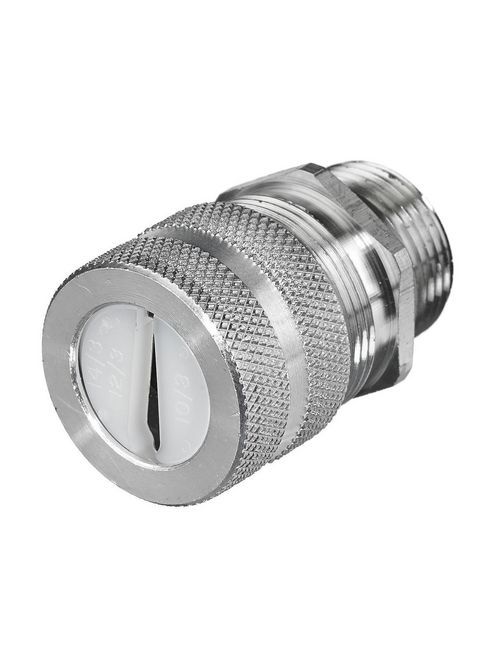

  • Machined aluminum underground feeder connector

Specifications

General

  • Application: Straight Male
  • Color: Metallic
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • Item Type: Underground Feeder Connectors
  • Material: Machined Aluminum
  • Material - Mounting Hardware: Locknut or Tapped Opening
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC | Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Series: Standard Duty
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • UPC: 783585207520

Dimensions

  • Display Size: 3/4" NPT
  • Hub Size: 3/4"

Conductor Related

  • Conductor Range: 0.2 x .4 in Min, 0.25 in x 0.55 in Max
  • Number Of Conductors: Single

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: IP66

Logistics

  • Carton Quantity: 25

Overview

UPC 78358520752
GTiN 00783585207520
Length 1.000 in
Finish Machined
Width 1.800 in
Size 3/4" NPT IN
Color Metallic
Type Underground Feeder Connectors
Material Aluminum
Number of Conductors Jacketed UL Listed Cable Only
Conductor Size 0.2 - 0.4 in
Product Series Standard Duty
Applications Straight Male
Height 5.500 in
Trade Size 3/4 Inch
Temperature Rating -30 to 225 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection NPT
Thread Type NPT
Sub Brand Kellems Wire Management
Standard UL
