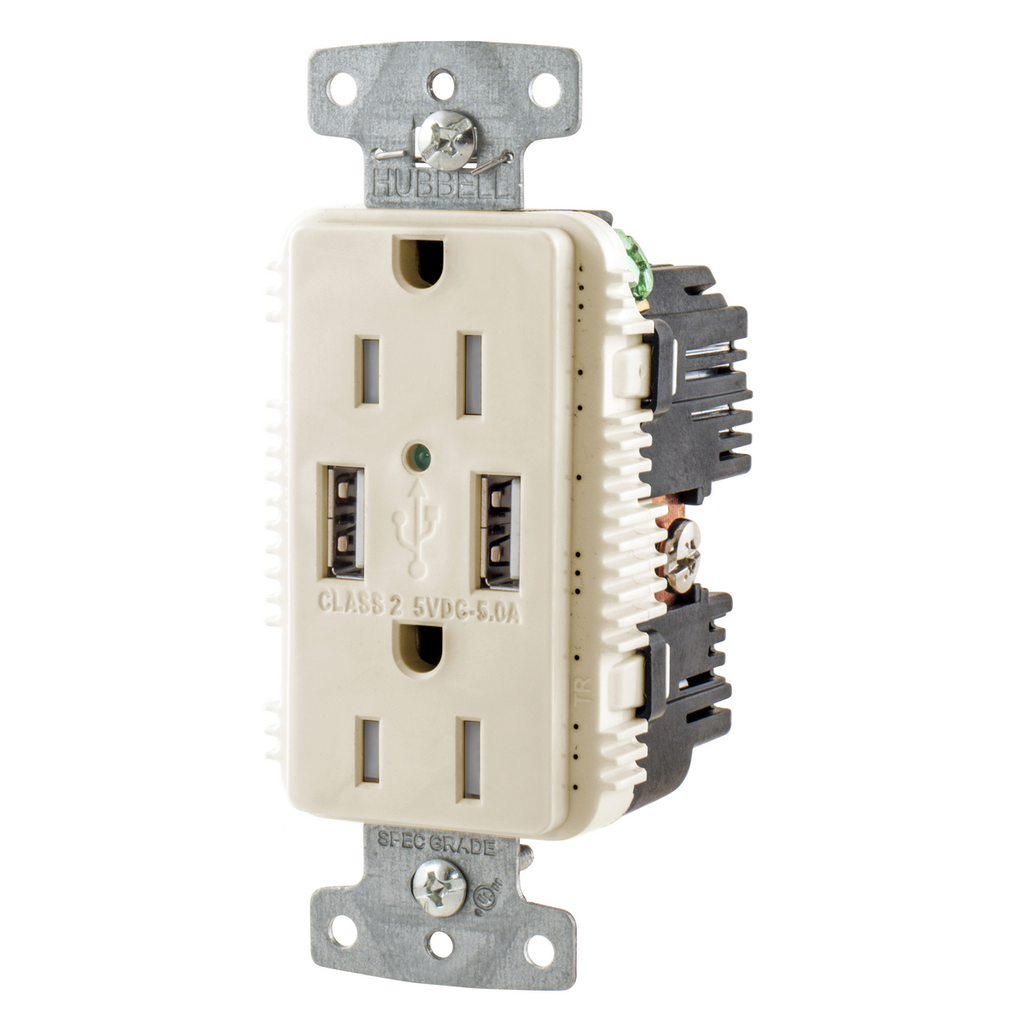

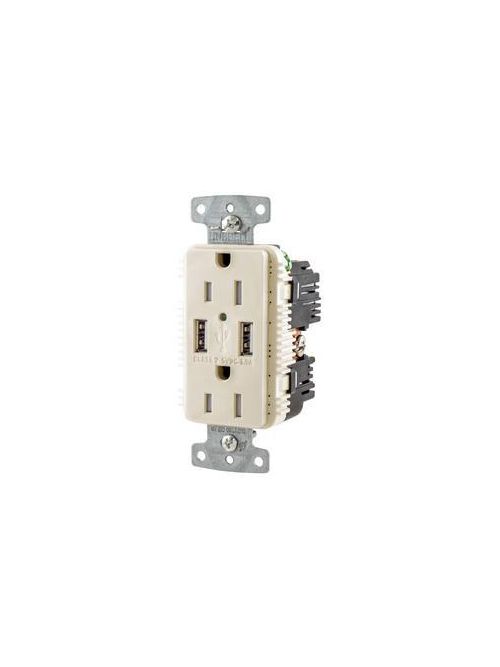

HWDK USB15A5LA RCPT DUP 15A 125V 5A
Product image thumbnail 0
Product image thumbnail 1
$35.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # USB15A5LA
North Coast Part # 1609370

Features

  • High Power 5 Amp, 5 Volt USB Output
  • Two Type A USB Ports
  • Tamper Resistant Commercial Grade Duplex Compatible
  • USB Ports Rated 10,000 Cycles

Specifications

General

  • Color: Light Almond
  • Number Of Poles: 2-Pole
  • Series: Heavy Duty
  • Style: Style Line Decorator
  • Type: Two Type A Port
  • UPC: 883778306907

Electrical Ratings

  • Current / Amperage Rating: 15 A
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire

Certifications and Compliance

  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 88377830690
GTiN 00883778306907
Length 4.200 in
Width 2.200 in
Size Standard Sized Product
Color Light Almond
Type Two Type A Port
Product Series Heavy Duty
Applications USB Charging/Power
Height 1.900 in
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand USB Chargers
Voltage 125 VAC
Material Composite
Environmental Conditions Indoor Dry Unless Protected by Additional Means
