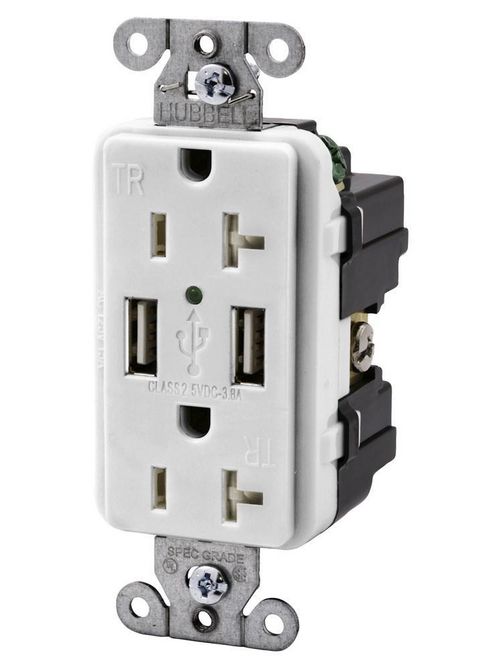

Hubbell Wiring Devices USB20X2W 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Decorator Duplex USB Charger Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$45.66/ea
In Stock | 2 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # USB20X2W
North Coast Part # 885597

Features

  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple products
  • Two USB ports 3 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • 20A
  • 125V
  • 2 Pole
  • 3 Wire Grounding

Ordering Information

  • Device Color: White

Listings

  • cULus listed to UL498

Specifications

  • Mounting Screws: Zinc plated steel
  • Face: RTP
  • Contacts: Plated steel
  • Clamp: Plated steel
  • LED: Green Indicator
  • Terminal Screws: Plated steel
  • Base: RTP
  • Mounting Strap: .040" Zinc plated steel
  • USB Port: Stainless Steel

Performance

Electrical

  • Dielectric Voltage: Withstands 2,000V minimum
  • Current Interrupting: Certified for current interrupting at full rated current

Mechanical

  • Product Identification: Ratings are a permanent part of the device
  • USB Port: Stainless steel Rated for 10,000 plug insertions and removal
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA

Environmental

  • Operating Temperature: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Flammability: UL 94V-2

Categories

Overview

UPC 88377830485
Item Long Description USB 20A 125V AC Charger Tamper-Resistant receptacle,Two USB Type 2.0 ports 3 Amp, 5 Volt DC
GTiN 00883778304859
Color White
Voltage 125 Volt
Mounting Type Flush
Face Material RTP
Family Brand Name Hubbell Wiring Device Kellems
Number of Outlets 2
Blade Dimensions 32.89 mm W x 49.91 mm D x 104.78 mm H
Base Material RTP
Wire Count 3
Tamper Resistant? Yes
Flamability Class UL 94V-2
Contact Material Plated Steel
Amperage 20 Amp
Number of Poles 2 Pole
Screw Material Plated Steel
