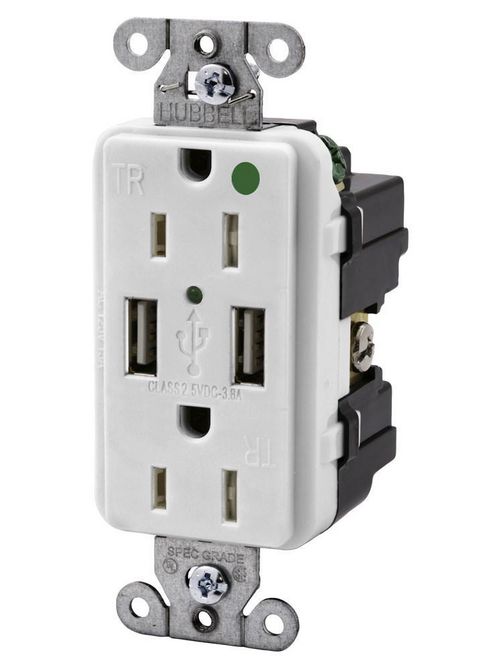

HCI USB8200W RECEP, DUP, HG, 15A 12
Product image thumbnail 0
Product image thumbnail 1
$37.10/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # USB8200W
North Coast Part # 882628

Features

  • Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products

Specifications

  • Face: RTP
  • Base: RTP
  • LED: Green Indicator
  • Contacts: Brass
  • Clamp: Plated steel
  • Terminal Screws: Plated steel
  • Mounting Strap: .040" Zinc plated steel
  • Mounting Screws: Zinc plated steel

Performance

Electrical

  • Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum

Mechanical

  • Product Identification: Ratings are a permanent part of the device
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • USB Port: Stainless steel Rated for 10,000 plug insertions and removal

Environmental

  • Flammability: UL 94V-2
  • Operating Temperature: Maximum continuous 75°C; minimum -40°C (w/o impact)

Ordering Information

  • Description: USB 15A 125V AC Charger Tamper-Resistant receptacle, Two USB Type 2.0 ports 3.8 Amp, 5 Volt DC
  • Device Color: White

Listings

  • cULus listed to UL498 and UL1310 Hospital Grade
  • NEMA® WD-6 Compliant

Complementary Products

  • Wallplate or Weatherproof Cover: StyleLine® Decorator Opening

Overview

UPC 88377830494
GTiN 00883778304941
Color White
Voltage 2,000 Volt
Face Material RTP
Family Brand Name Hubbell Wiring Device Kellems
Type Tamper-Resistant, Decorator, USB Type A
Material Nylon
Conductor Size 14-10 AWG
Mounting Type Recessed/Flush
Grade Hospital
Connection Type Back and Side Wired
Temperature Rating -40 to 75 C Continuous
Number of Ports 2
Contact Material Brass
Blade Dimensions 1-3/4 in W x 1.96 in D x 3.81 in H
Environmental Conditions UL 94-V2 Flammability Rating
Number of Poles 2 Pole
Number of Wires 3
