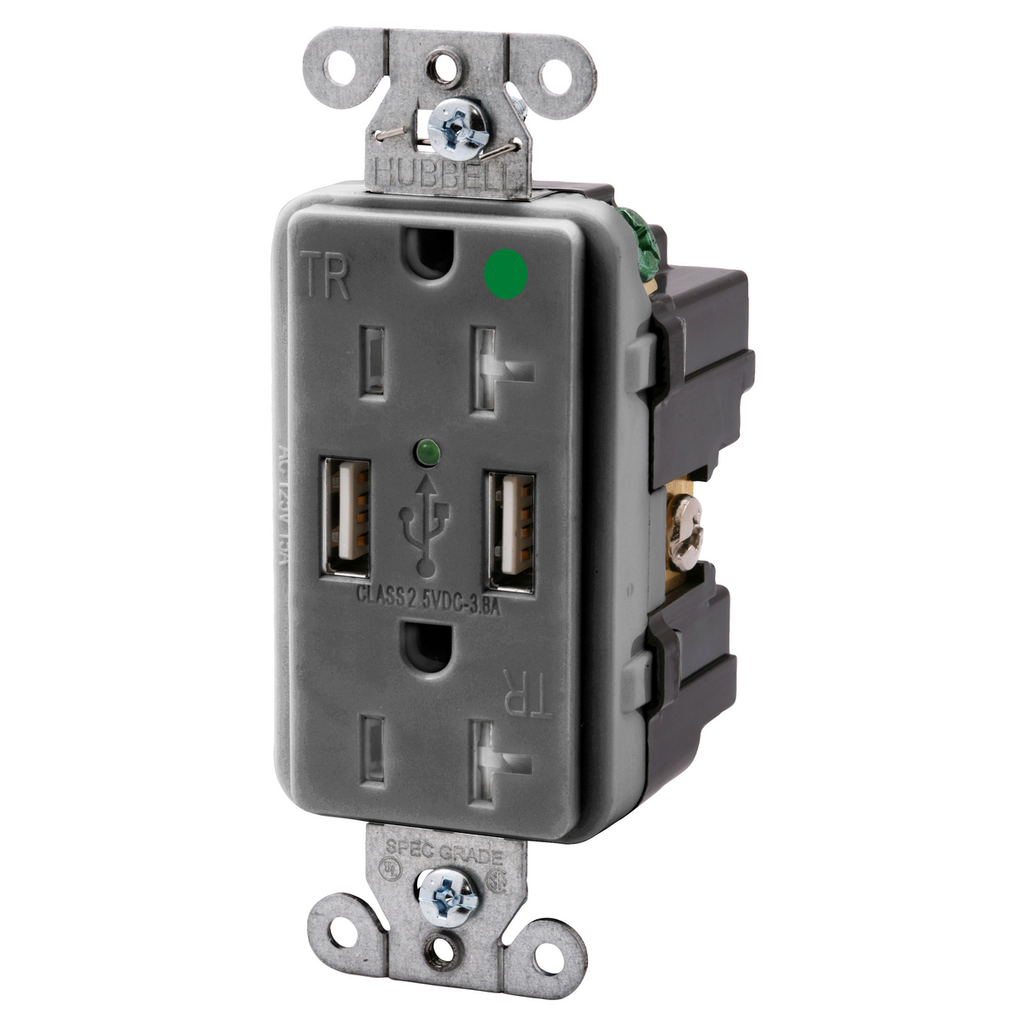

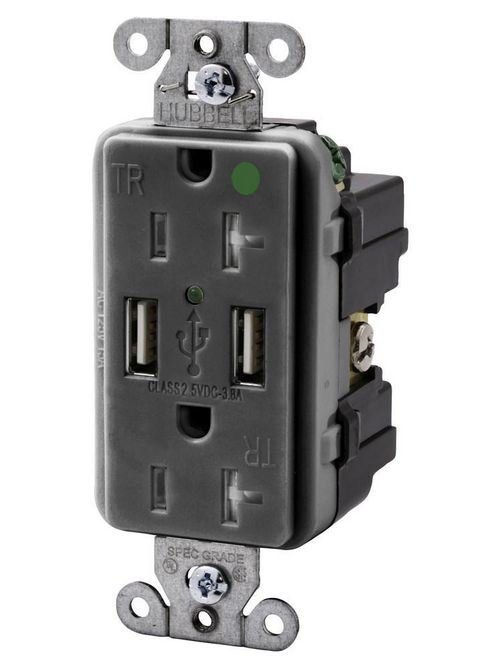

HCI USB8300GY RECEP, DUP, HG, 20A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$43.84/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # USB8300GY
North Coast Part # 1010364

Features

  • Compatible with USB 1.1/2.0/3.0 devices, including Apple products
  • Green LED indicator to show USB power available
  • Two USB ports 3 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • 20A
  • 125V
  • 2 Pole
  • 3 Wire Grounding

Ordering Information

  • Device Color: Gray

Listings

  • cULus listed to UL498 and UL1310 Hospital Grade
  • NEMA WD-6 Compliant

Specifications

  • LED: Green Indicator
  • Base: RTP
  • Terminal Screws: Plated steel
  • Contacts: Brass
  • Mounting Strap: .040" Zinc plated steel
  • Mounting Screws: Zinc plated steel
  • Face: RTP
  • Clamp: Plated steel

Performance

Electrical

  • Dielectric Voltage: Withstands 2,000V minimum
  • Current Interrupting: Certified for current interrupting at full rated current

Mechanical

  • Product Identification: Ratings are a permanent part of the device
  • USB Port: Stainless steel Rated for 10,000 plug insertions and removal
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only

Environmental

  • Operating Temperature: Maximum continuous 75°C; minimum -40°C (w/o impact)
  • Flammability: UL 94V-2

Overview

UPC 88377830508
Item Long Description USB 20A 125V AC Charger Tamper-Resistant receptacle, Two USB Type 2.0 ports 3 Amp, 5 Volt DC
GTiN 00883778305085
Color Gray
Voltage 125 Volt
Face Material RTP
Family Brand Name Hubbell Wiring Device Kellems
Grade Hospital
Base Material RTP
Wire Count 3
Tamper Resistant? Yes
Flamability Class UL 94V-2
Contact Material Brass
Amperage 20 Amp
Number of Poles 2 Pole
Screw Material Plated Steel
