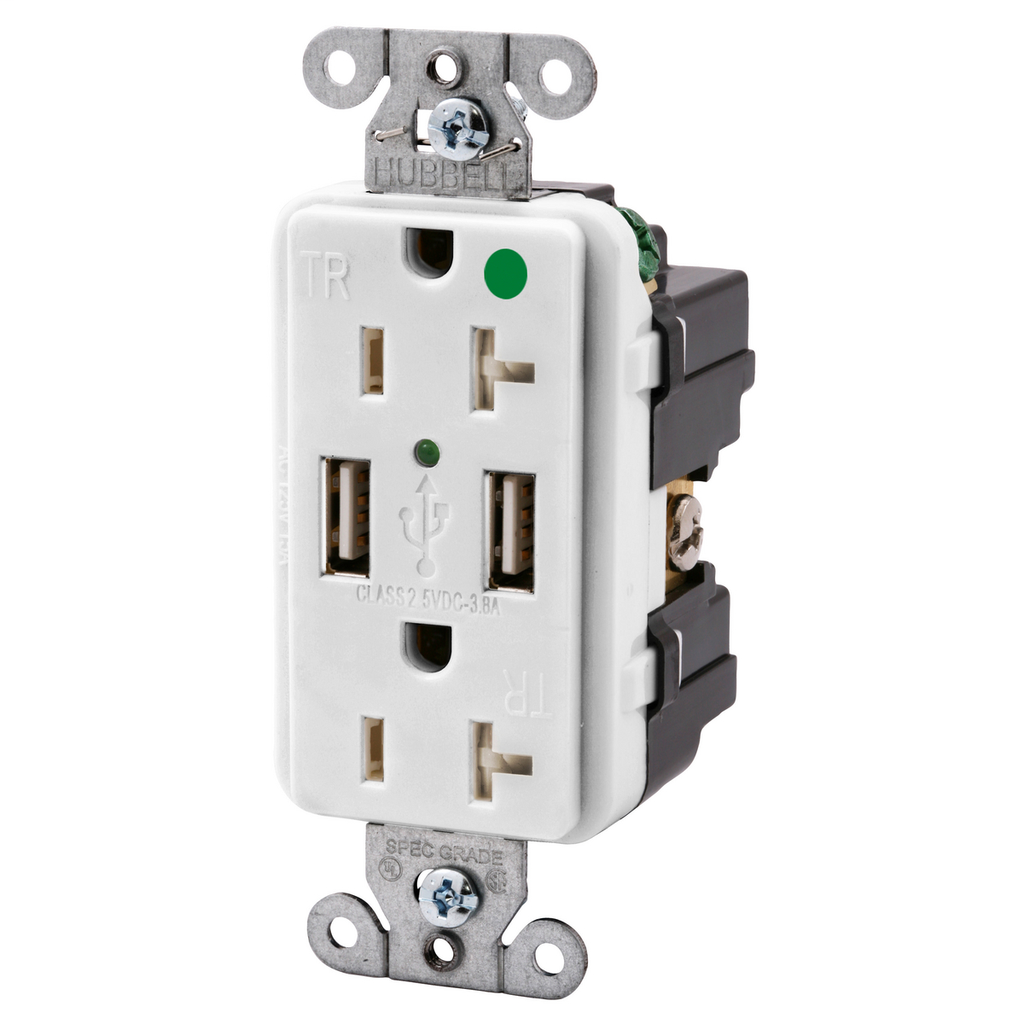

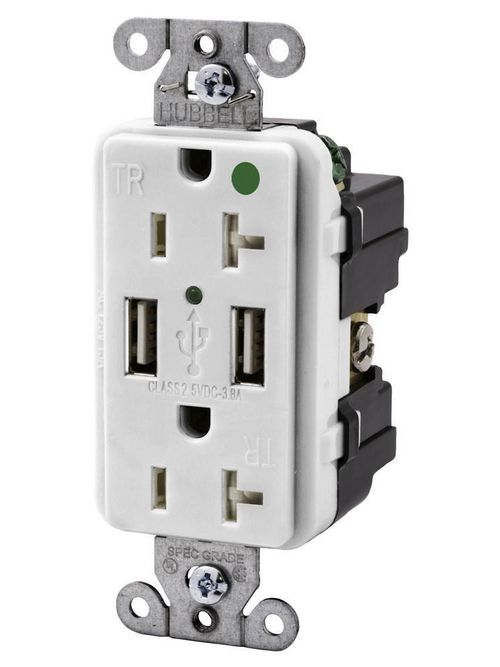

Hubbell Wiring Devices USB8300W 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White Decorator Duplex USB Charger Receptacle

Features

• Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
• Tamper-Resistant decorator duplex receptacle
• Green LED indicator to show USB power available
• Compatible with USB 1.1/2.0/3.0 devices, including Apple® products

Specifications

• Face: RTP
• Base: RTP
• LED: Green Indicator
• Contacts: Brass
• Clamp: Plated steel
• Terminal Screws: Plated steel
• Mounting Strap: .040" Zinc plated steel
• Mounting Screws: Zinc plated steel

Performance

Environmental

• Flammability: UL 94V-2
• Operating Temperature: Maximum continuous 75°C; minimum -40°C (w/o impact)

Mechanical

• Product Identification: Ratings are a permanent part of the device
• Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only
• Terminal Identification: Terminals identified in accordance with UL 498 and CSA
• USB Port: Stainless steel Rated for 10,000 plug insertions and removal

Electrical

• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2,000V minimum

Ordering Information

• Description: USB 20A 125V AC Charger Tamper-Resistant receptacle, Two USB Type 2.0 ports 3.8 Amp, 5 Volt DC
• Device Color: White

Listings

• cULus listed to UL498 and UL1310 Hospital Grade
• NEMA® WD-6 Compliant

Complementary Products

• Wallplate or Weatherproof Cover: StyleLine® Decorator Opening
