HCI VHC1022ZP CORDCON, 45 ML, .25-.
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$26.51/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # VHC1022ZP
North Coast Part # 210190

Features

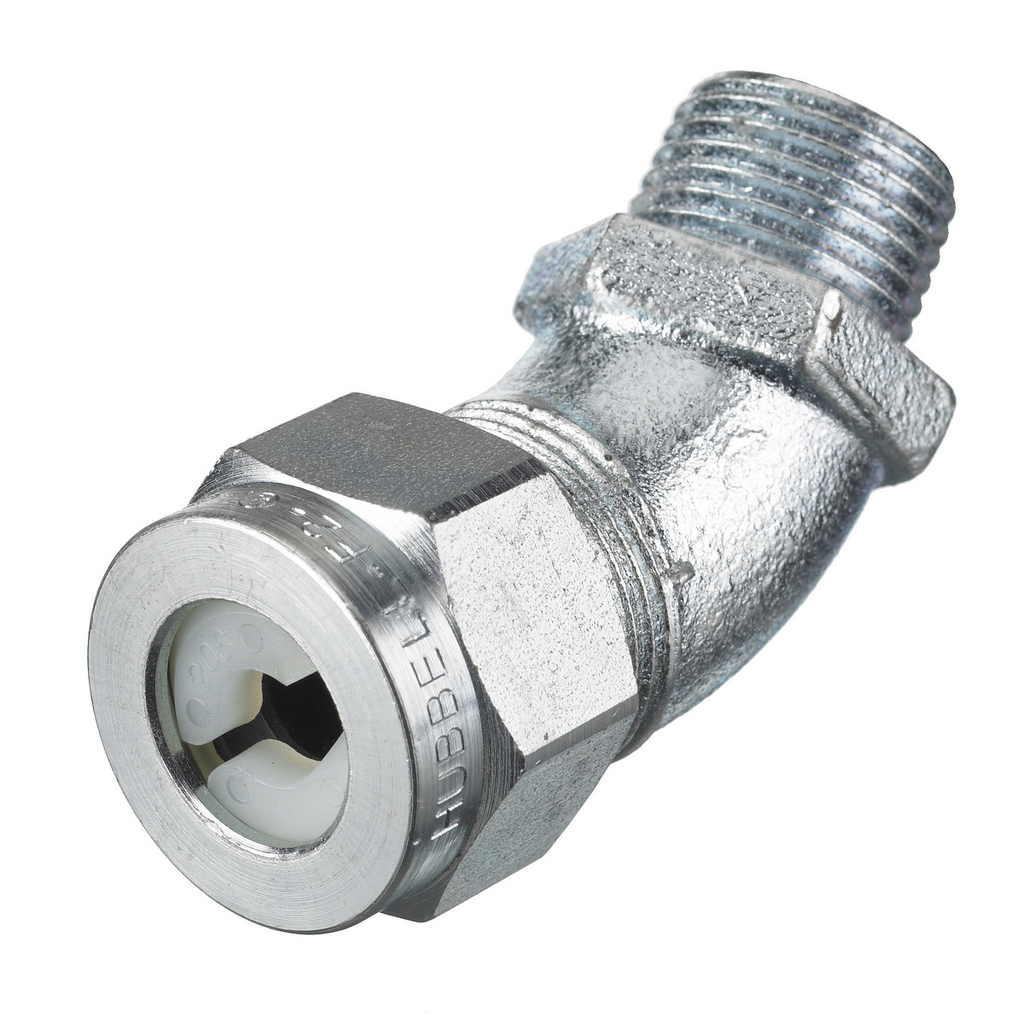

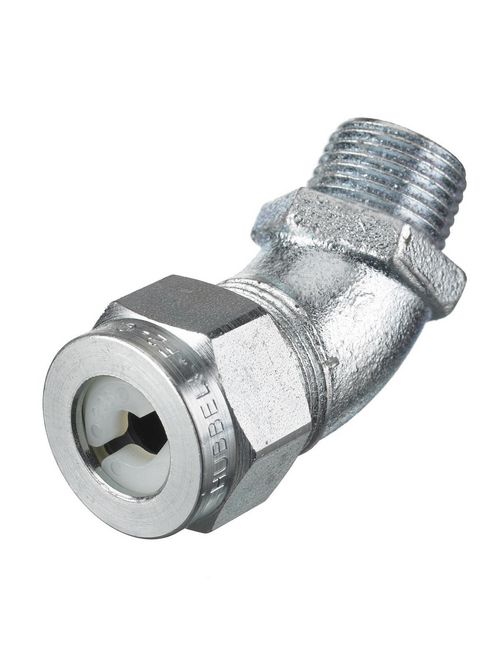

  • Zinc-plated cord connector, one-piece design with machined threads
  • Lock nuts sold separately
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 2.500 in
  • Each - Length: 1.400 in
  • Each - Width: 1.000 in
  • Hub Size: 1/2 "
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Show Add To ProjectList: Yes
  • Application: 45 Degree Male- Form 2
  • Conductor Range: 0.25- 0.38 in (6.3- 9.7 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: 45 Degree Male

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358521182
Item Long Description Kellems Wire Management, Cord Connectors, 45 Degree Male, .25-.38", 1/2", Steel
GTiN 00783585211824
Length 1.400 in
Finish Machined
Width 1.000 in
Size 1/2" NPT IN
Type 45, Male, Form 2
Material Steel
Number of Conductors Single
Conductor Size 0.25 - 0.38 in
Product Series Standard Duty
Applications 45 Degree Male- Form 2
Height 2.500 in
Trade Size 1/2 Inch
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
TC Connection NPT
Used With Jacketed UL Listed Cable Only
Sub Brand Kellems Wire Management
Standard UL
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
