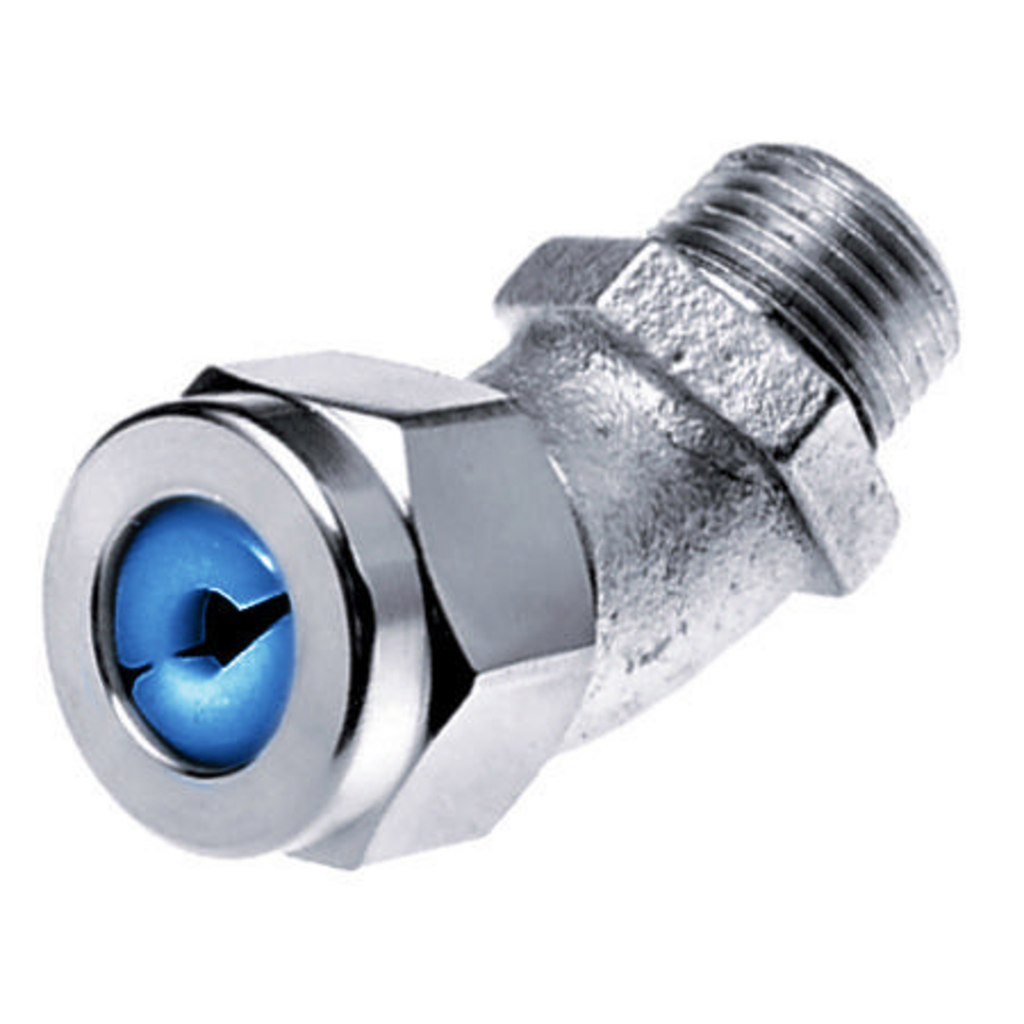

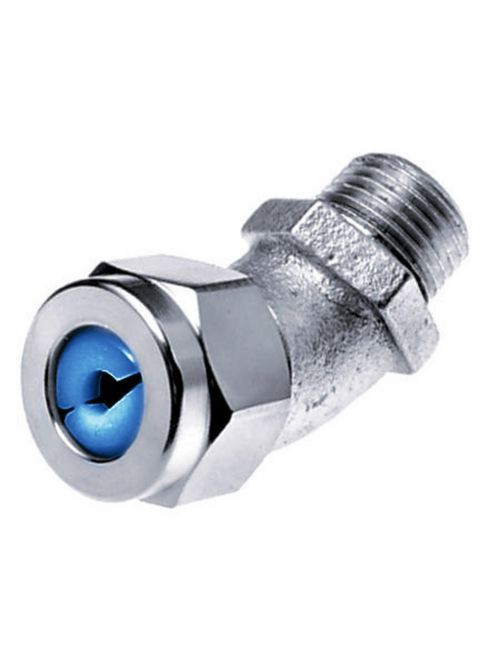

HWDK VHC1023ZP CORDCON, 45 ML, .38-
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$27.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # VHC1023ZP
North Coast Part # 886204

Features

  • Zinc-plated cord connector, one-piece design with machined threads
  • Lock nuts sold separately
  • Standard Product

Specifications

  • Country of Origin: US
  • Each - Height: 2.500 in
  • Each - Length: 1.000 in
  • Each - Width: 1.300 in
  • Hub Size: 1/2 "
  • Industry Standard(s): UL Listed
  • Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC.;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
  • Show Add To ProjectList: Yes
  • Application: 45 Degree Male- Form 2
  • Conductor Range: 0.38- 0.5 in (9.7- 12.7 mm)
  • Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
  • NEMA Rating: NEMA Type 4, 4X, 12 and 13
  • Number of Conductors: Single
  • Special Features: Standard Product
  • Standard: UL Listed
  • Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
  • Type: 45 Degree Male

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358521183
Item Long Description Kellems Wire Management, Cord Connectors, 45 Degree Male, .38-.50", 1/2", Steel
GTiN 00783585211831
Length 1.000 in
Finish Machined
Width 1.300 in
Size 1/2" NPT IN
Type 45, Male, Form 2
Material Steel
Number of Conductors Single
Product Series Standard Duty
Applications 45 Degree Male- Form 2
Height 2.500 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Sub Brand Kellems Wire Management
Conductor Size 0.38 - 0.5 in
Trade Size 1/2 Inch
Standard UL
TC Connection NPT
Used With Jacketed UL Listed Cables
Color Metallic
Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
