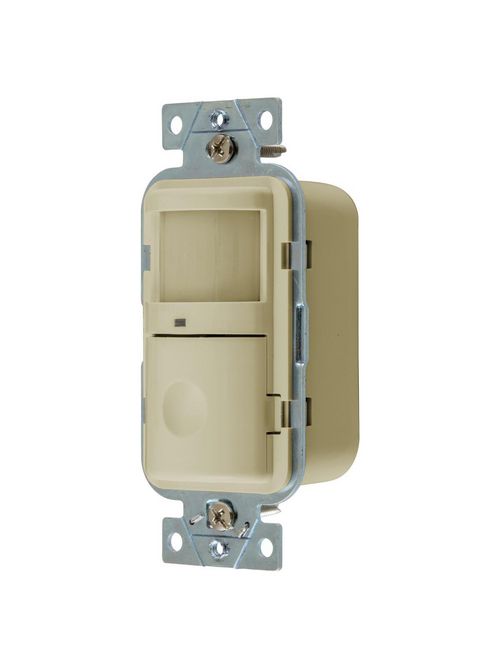

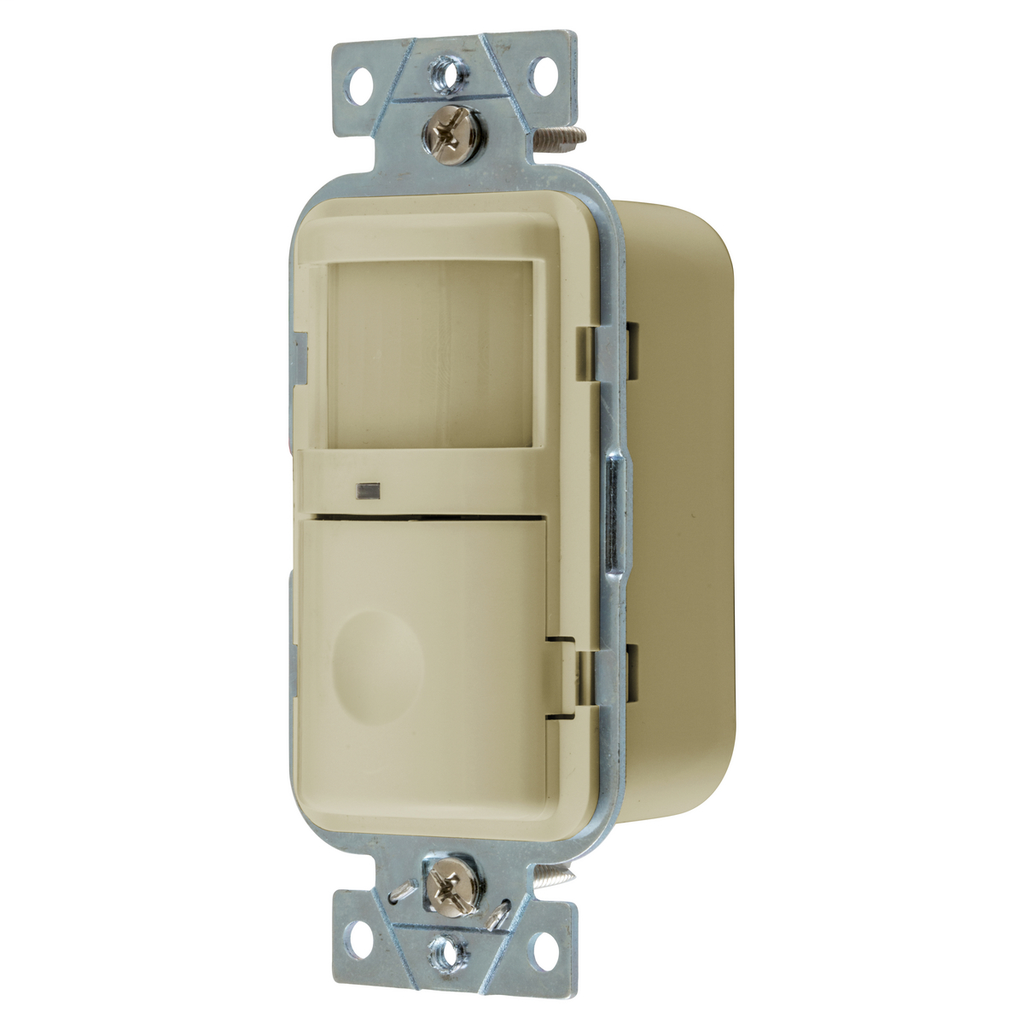

Hubbell Wiring Devices WS2000I 120/277 Volt Ivory Manual Adjust and Manual/Auto-On Operation Passive Infrared Wall Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$79.42/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # WS2000I
North Coast Part # 936623

Features

  • Designed for use on 120 or 277V AC circuits, no neutral required, fast retrofits. Built in photocell prevents lights from turning ON with sufficient natural light.
  • 3-Way capable
  • Matching wallplate included

Specifications

  • Country of Origin: TW
  • Dimensions: 4.15 in x 1.82 in x 1.62 in
  • Each - Height: 10.100 in
  • Each - Length: 4.900 in
  • Each - Width: 2.300 in
  • Height: 1.62 in
  • Humidity: 20% to 90% non-condensing relative humidity
  • Industry Standard(s): cULus Listed To UL773A
  • Length: 4.15 in
  • Performance: Controls - Ambient Light - Photocell, 10 to 500 foot candles;Controls - Service Switch - OFF (service), Vacancy (manual-ON), Occupancy (auto-ON);Controls - Time Delay - Manual 20 seconds to 30 minutes;Electrical - Load Capacity - Incandescent - 0 to 1000 watts 120V, Ballast - 0 to 1000 watts 277V, Horsepower rating 1/6;Environmental - Operating Temperature - 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour;Environmental - Storage - -40°F to 150°F (-40°C to 65°C), 20% to 90% non condensing relative humidity;Sensing Indicators - Passive Infrared - Red LED
  • Show Add To ProjectList: Yes
  • Storage Temperature Range: -40°F to 150°F (-40°C to 65°C)
  • Application: Compatible with most LED and CFL
  • Color: Ivory
  • Operating Temperature: 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
  • Size: 4.15 in x 1.82 in x 1.62 in
  • Standard: cULus Listed To UL773A
  • Type: Manual/Auto
  • Voltage Rating: 120/277 VAC
  • Voltage Rating Description: 120/277V AC
  • Width: 1.82 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358525630
Item Long Description Lighting Controls, Occupancy/Vacancy Sensors, Wall Switch, Passive Infrared Technology, 120/277V AC, Ivory
GTiN 00783585256306
Length 4.15 in
Width 1.82 in
Color Ivory
Operating Temperature 32F to 122F (0C to 50C) with rate of change not exceeding 20F(11C) per hour
Voltage 120 Volt
Type Manual/Auto
Material ABS
Product Series Passive Infrared
Applications Compatible with most LED and CFL
Height 1.62 in
Family Brand Name Hubbell Wiring Device Kellems
Sensing Range 1000 Square Feet
Sub Brand H-MOSS
Standard CULus,UL773A
Size 4.15 in x 1.82 in x 1.62 in
Environmental Conditions Indoor Dry Unless Protected by Additional Means
