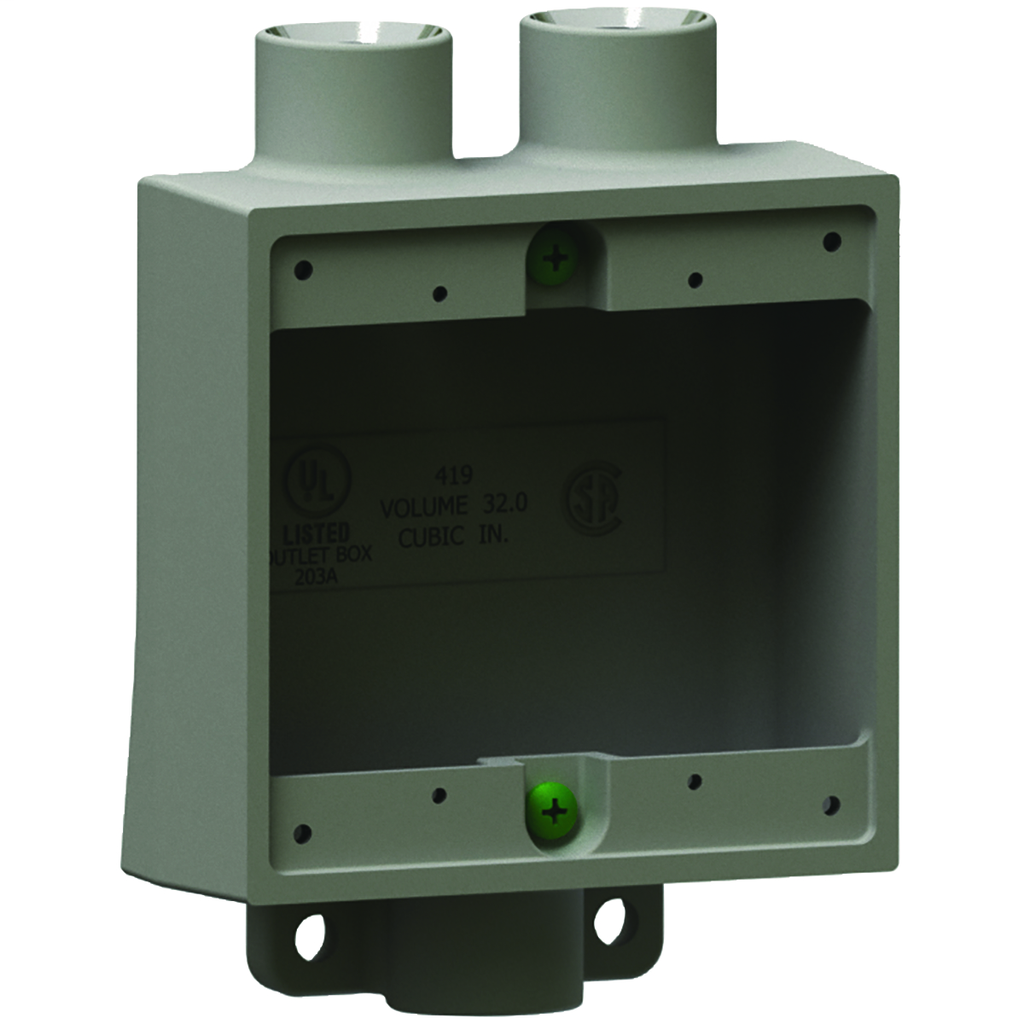

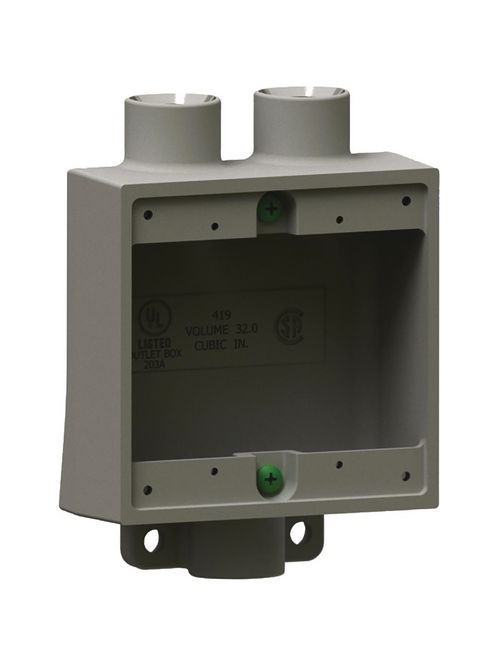

Hubbell Electrical Systems 2FSD-2 3/4 Inch 2-Gang Iron Type 2FSD Shallow Cast Device Box with Mounting Lug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$69.77/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # 2FSD-2
North Coast Part # 65636

Features

  • Tapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).

Specifications

  • Buy American Compliant: Contact Manufacturer
  • Color: Gray
  • Country of Origin: MX
  • Dimensions: 1 in x 1 in x 2 in
  • Each - Height: 2.000 in
  • Each - Length: 1.000 in
  • Each - Width: 1.000 in
  • Height: 2 in
  • Hub Size: 3/4"
  • Length: 1 in
  • Width: 1 in
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/KIL_2FSD-2.stp
  • CSA File Number: LR11852
  • UL File Number: E3397
  • Gross Weight with Packaging: 1.03
  • Application: Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
  • Finish Type: Powder Epoxy Paint
  • Hub Pattern: Feed-Thru
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Number Of Outlets: 3
  • Series: F
  • Type: Device Box

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

GTiN 00783936192369
Length 1 Inch
Finish Powder Epoxy Paint
Width 1 in
Size 6-3/8" H x 4-11/16" W x 2" D
Color Gray
Type Non-Reversing
Material Aluminum
Applications Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Height 2 Inch
Family Brand Name Killark
Hub Size 3/4 in
Cable Entry 0.75 in
Product UPC 78393619236
Country of Origin Mexico
