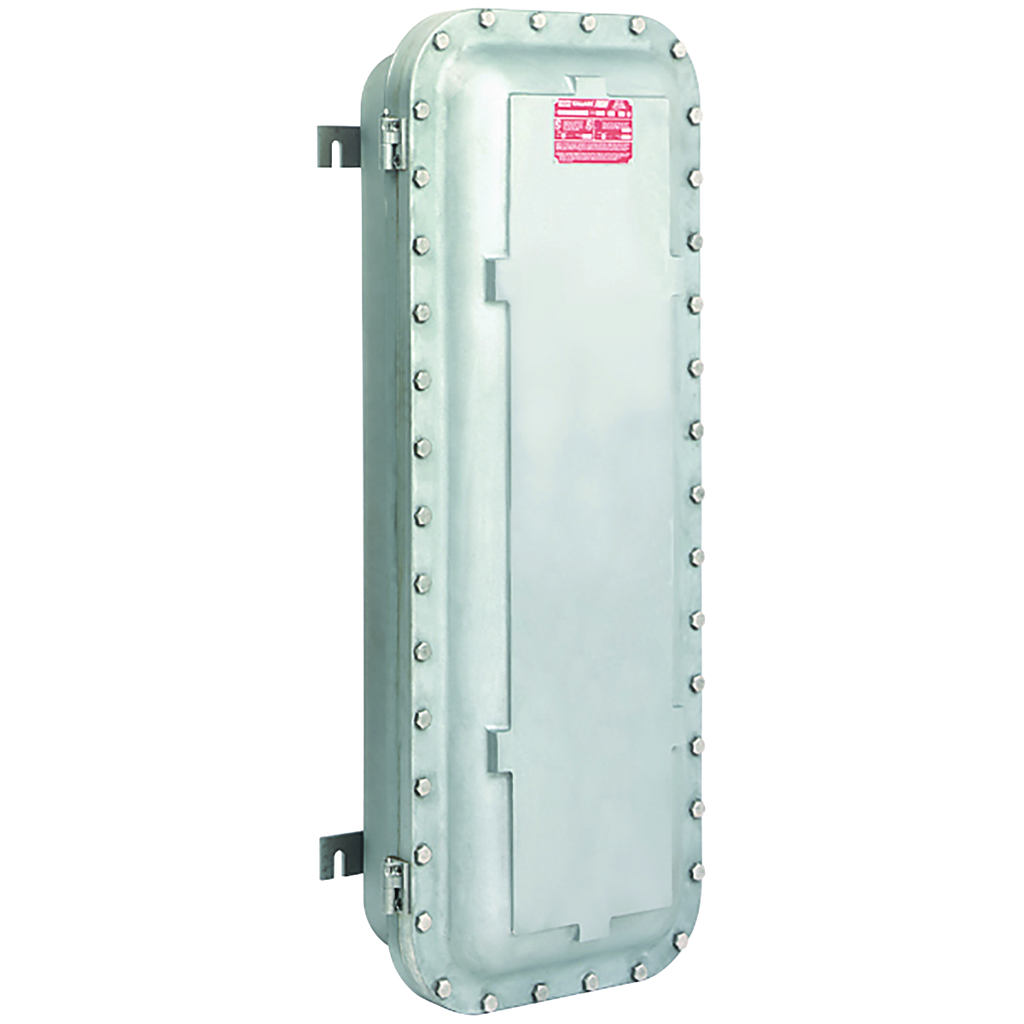

KLRK B7EB ENCL, PRISM 10" X 18.5"
$3,091.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # B7EB
North Coast Part # 1885731

Features

  • High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
  • Quick release, captivated cover bolts of 316 grade stainless steel for maximum protection from corrosion.
  • Triplelead bolts require only 3-1/2 turns to disengage.
  • Cover o-ring, Nitrile (BUNA-N) material, supplied standard supplied standard for a Type 4X rating.
  • Mounting lugs are bolt on, made from ductile aluminum alloy.
  • Back pan mounting holes predrilled.
  • Conduit and device openings factory or field installed.
  • Aluminum hinges and stainless steel hardware standard on mid to large size boxes.
  • Recessed flange notches to allow for easier cover opening.

Specifications

General

  • Application: Locations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fibers and flyings, and areas which are subject to corrosion, weather, and dampness. Petroleum refineries, chemical and petrochemical plants w
  • Color: Gray
  • Cover Type: Bolted
  • Series: B7E
  • Type: Junction Box
  • UPC: 783936020198

Dimensions

  • Gross Weight with Packaging: 78

Certifications and Compliance

  • CSA File Number: LR11716
  • Nema Rating: 3, 4, 4X
  • UL File Number: E83696

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups B, C, D
  • Class I, Zones 1 & 2, Groups IIB+H2, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393602019
GTiN 00783936020198
Size 23" H x 14-1/2" W x 9-1/8" D
Color Gray
Type Aluminum junction box
Material Cast Copper-Free Aluminum
Product Series B7E
Applications Locations made hazardous due to the presence of flammable gases or vapors, combustible dust, or easily ignitable fibers and flyings, and areas which are subject to corrosion, weather, and dampness. Petroleum refineries, chemical and petrochemical plants w
Family Brand Name Killark
NEMA 3,4,4X
Sub Brand PRISM
