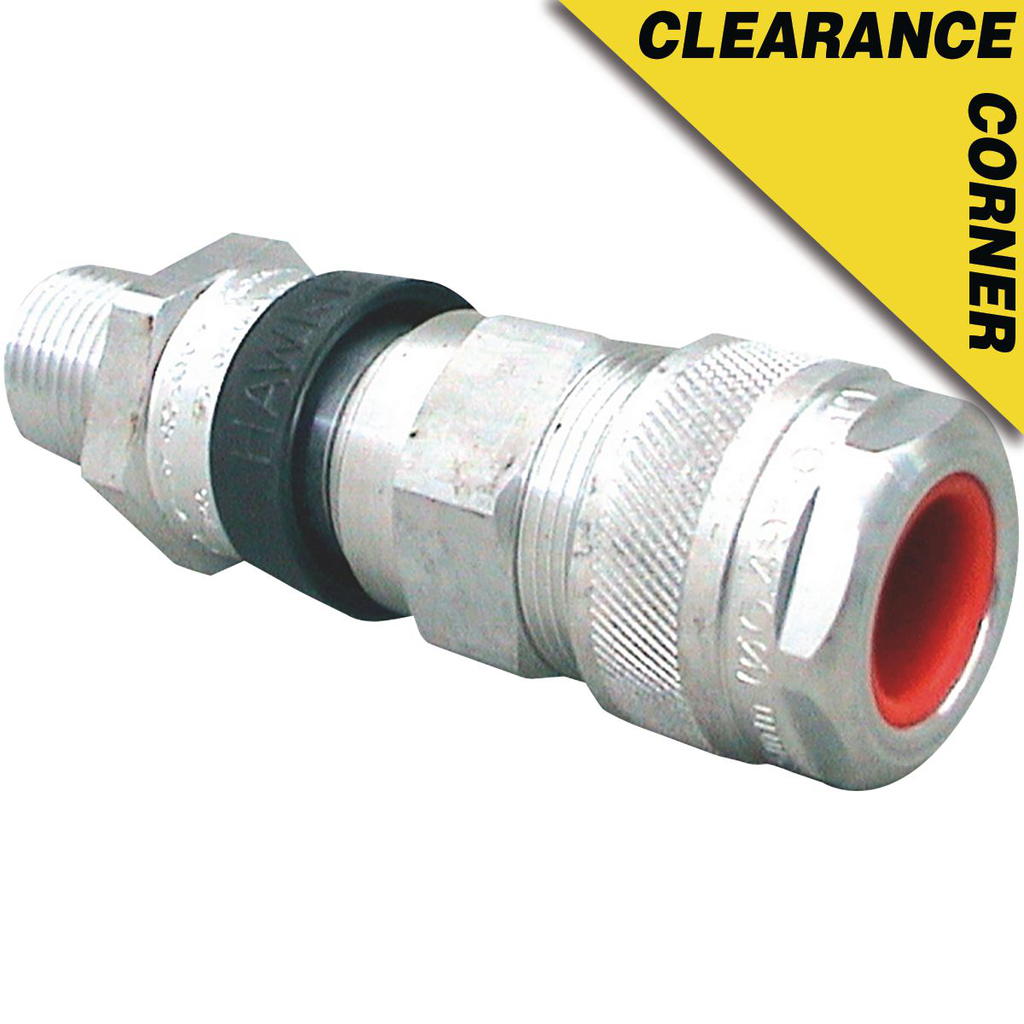

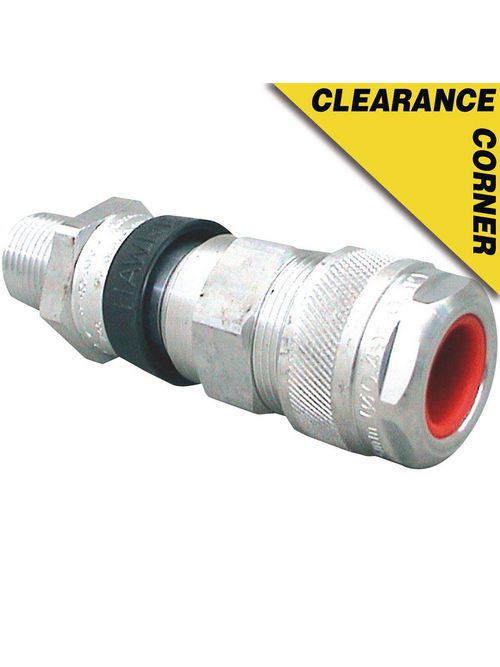

KLRK CMCAC2125 MC FITTING AL 1-1/4"
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$117.06/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # CMCAC2125
North Coast Part # 210586

Features

  • Provides 360° armor grounding which is fully inspectable
  • Grounding Device remains in contact with cable when disassembed for inspection
  • Provides cable retention and a low smoke and fume, zero halogen seal onto the cables outer sheath
  • Provides an outer deluge seal to prevent moisture ingress to the cable armor and enclosure

Specifications

General

  • Application: Designed for use with jacketed interlocked and continuously welded/corrugated armor cable where it is essential to provide positive grounding of cable armor and a NEMA 3, 4, 4X connection. e.g. TEC or MC type cable. Use outdoors or indoors.
  • Color: Silver
  • Cord Range: (1.10" - 1.61")
  • Finish Type: Natural
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Series: CMCA
  • Temperature Rating: -50°C to +60°C
  • Type: Cable Gland
  • UPC: 783936030289

Dimensions

  • Gross Weight with Packaging: 1
  • Height: 3.75 in
  • Hub Size: 1-1/4"
  • Length: 7.875 in
  • Width: 4 in

Electrical Ratings

  • Amperage Rating: 40 A

Conductor Related

  • Cable Range: 1.10 - 1.61 in

Hazardous Rating(s)

  • Class I, Divisions 2, Groups A, B, C, D
  • Class I, Zones 1 & 2
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393603028
GTiN 00783936030289
Length 7.875 in
Finish Natural
Width 4 in
Size 4.01" L x 1.61" W x 1.61" H
Color Silver
Type Aluminum cable connector
Material 10 Of 1%),Copper Free (less Than 4,Aluminum
Product Series CMCA
Applications Designed for use with jacketed interlocked and continuously welded/corrugated armor cable where it is essential to provide positive grounding of cable armor and a NEMA 3, 4, 4X connection. e.g. TEC or MC type cable. Use outdoors or indoors.
Height 3.75 in
Temperature Rating -50 To 60 C
Family Brand Name Killark
Amperage 40 Amp
Hub Size 1-1/4 in
Sub Brand CLENCHER
