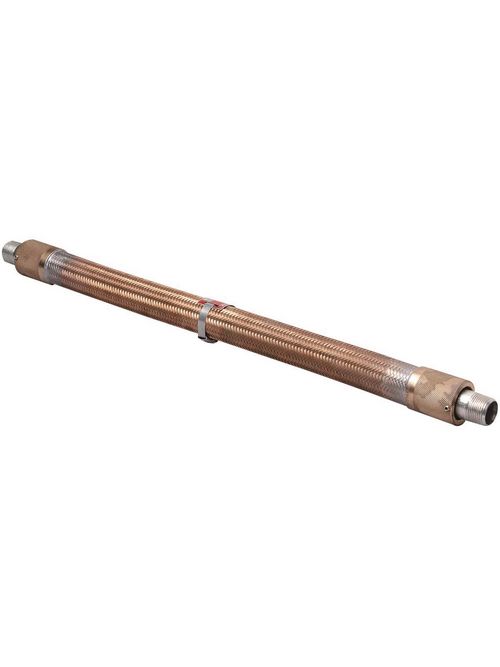

KLRK EKJ-16 FLEX COUPLING 1/2"x6" B

Features

Bronze flexible metal construction. An inner liner of asphaltum impreg-nated jute fibre tubing to protect conductors. Female ends with zinc plated steel nipples standard on all couplings. Union type couplings may be assembled by adding a GUF Series union

• Bronze flexible metal construction
• An inner liner of asphaltum impregnated jute fibre tubing to protect conductors
• Female ends with removable zinc plated steel nipples standard on all couplings
• Union type couplings may be assembled by adding a GUF Series union to the nipple
• Special lengths available-consult factory
• Furnished with a setscrew (for use as a fixture hanging coupling)

Specifications

• Application: For use in hazardous areas where movement or vibration requires a flexible connection or a difficult bend is required in a conduit system.
• Color: Bronze
• Finish Type: Natural
• Material: Bronze
• Series: EKJ
• Type: Flexible Coupling
• UPC: 783936107387
• Gross Weight with Packaging: 2.3
• Hub Size: 1/2"
• CSA File Number: LR11716

Hazardous Rating(s)

• Class I, Divisions 1 & 2, Groups A, B, C, D
• Class I, Zones 1 & 2, Groups IIC, IIB, IIA
• Class II, Divisions 1 & 2, Groups E, F, G
• Class III, Divisions 1 & 2

• UL File Number: E10514
