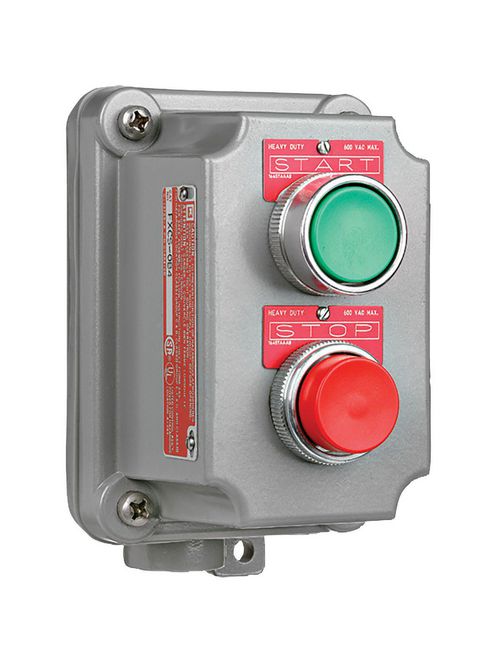

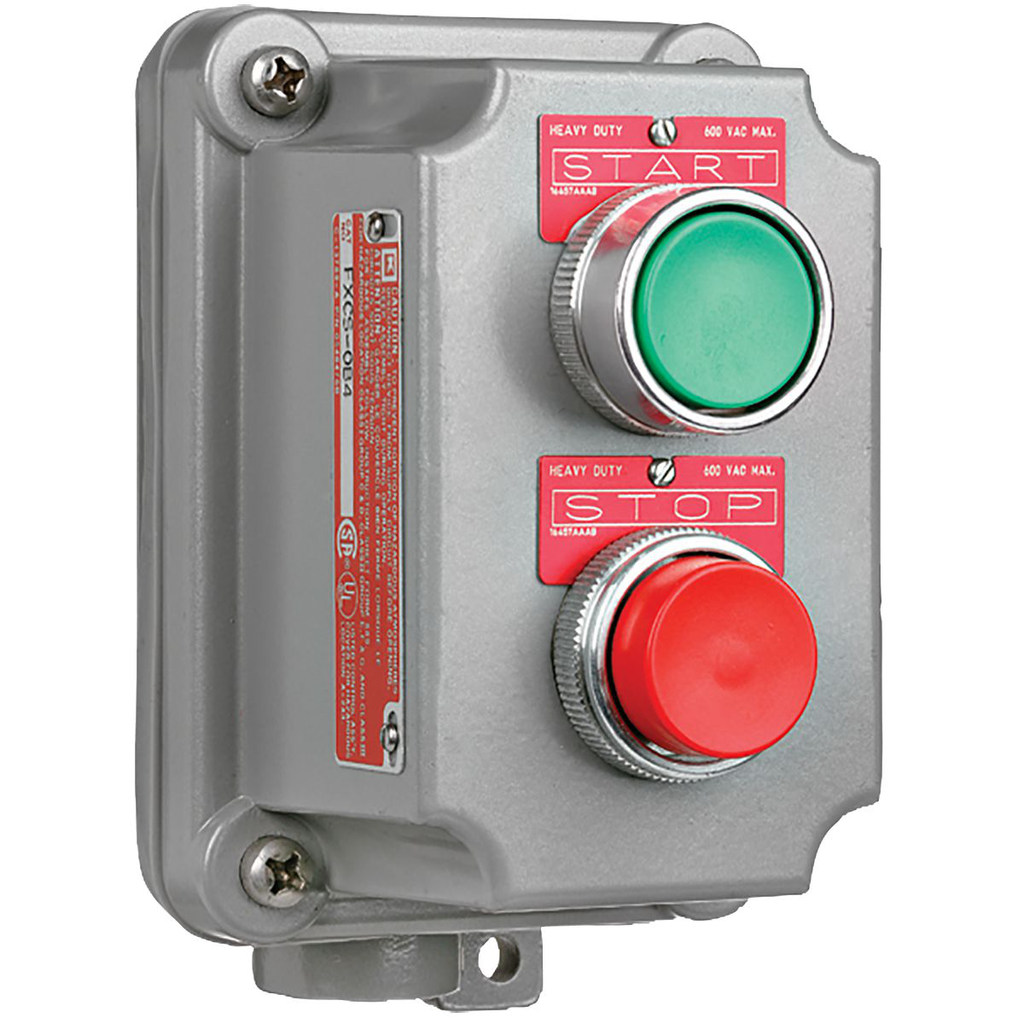

KLRK FXCS-0B4 GREEN/RED PUSHBUTTON
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$683.47/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # FXCS-0B4
North Coast Part # 427414

Features

  • Eliminates external sealing requirements.
  • Lower installation cost.
  • NEMA 3 weatherproof.
  • Color coded wiring with more wiring space for easier field installation.
  • Stainless steel captive screws for cover assembly.
  • Lockout accessory available must be factory installed.
  • Ground boss for grounding in the splice box.
  • Device bodies and covers are copper-free cast aluminum alloy.
  • Push button, selector switches and pilot light bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.

Specifications

  • Back Box Type: FXB
  • Color: Green-Red
  • Country of Origin: MX
  • Dimensions: 6.75 in x 6.25 in x 4.875 in
  • Each - Height: 4.875 in
  • Each - Length: 6.750 in
  • Each - Width: 6.250 in
  • Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
  • Height: 4.875 in
  • Length: 6.75 in
  • Show Add To ProjectList: Yes
  • Width: 6.25 in

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78393620047
Item Long Description FXCS Series - Aluminum Momentary Contact Double Push Button Cover With Device - Factory Sealed - Green Button With "Start" Nameplate - Red Button With "Stop" Nameplate - 1NO/1NC Contact Rating
GTiN 00783936200477
Length 6.75 in
Width 6.25 in
Size 5-5/16" H x 3-11/16" W x 2.59" D
Color Green,Red
Type Aluminum factory sealed cover with two push buttons
Material Copper-Free Aluminum
Product Series FXCS
Applications SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings;
Height 4.875 in
Weight 2.91 lb
Frequency 50/60 Hz
Family Brand Name Killark
NEMA 3
Actuator Momentary push buttons
Contact Configuration 1-NO/1-NC
Amperage 10 Amp
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Number of Poles 2 Pole
Action SP
Sub Brand SEAL-X
Voltage 600 VAC
