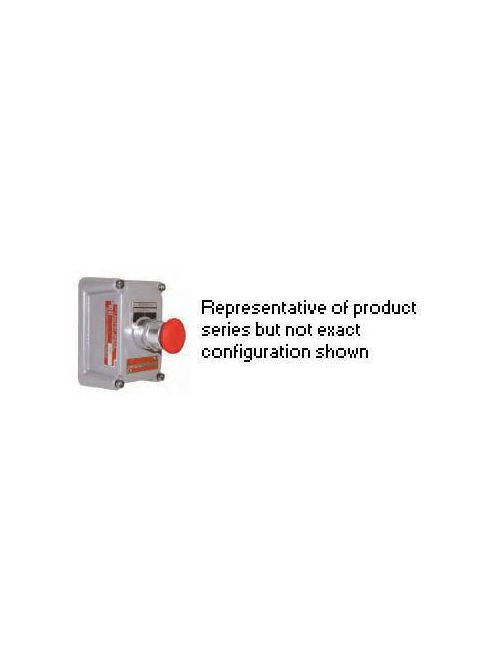

KLRK FXCS-0MMR3-LOM CVR W/ DEVICE M
Product image thumbnail 0
Product image thumbnail 1
$1,478.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # FXCS-0MMR3-LOM
North Coast Part # 332597
FXCS SERIES - ALUMINUM MAINTAINED CONTACT SINGLE PUSH/PULL BUTTON COVERWITH DEVICE - FACTORY SEALED - RED MUSHROOM BUTTON WITH LOCKOUT ANDSUPPLIED WITH THREE NAMEPLATES ("START/STOP", BLANK, "EMERGENCY STOP") -1NO

Categories

Overview

UPC 78393620026
Item Long Description FXCS SERIES - ALUMINUM MAINTAINED CONTACT SINGLE PUSH/PULL BUTTON COVERWITH DEVICE - FACTORY SEALED - RED MUSHROOM BUTTON WITH LOCKOUT ANDSUPPLIED WITH THREE NAMEPLATES ("START/STOP", BLANK, "EMERGENCY STOP") -1NO
GTiN 00783936200262
Size 5-5/16" H x 3-11/16" W x 2.59" D
Voltage 600 Volt
Type Aluminum factory sealed cover with push-pull button
Applications SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings;
Family Brand Name Killark
Certifications CSA,UL
Actuator Maintained Push Button
Contact Configuration 1-NC,1-NO
Amperage 0.55 Amp
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Number of Poles 1 Pole
Action SP
Sub Brand SEAL-X
