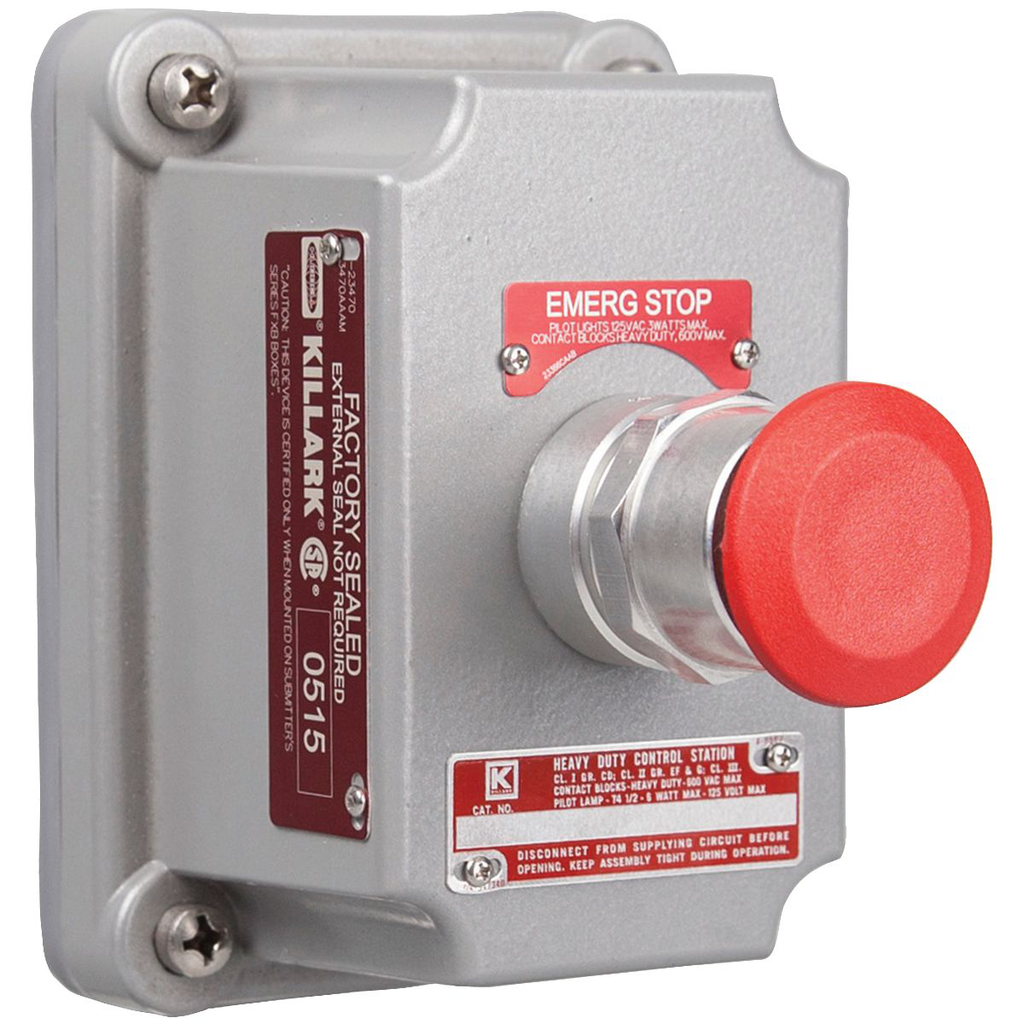

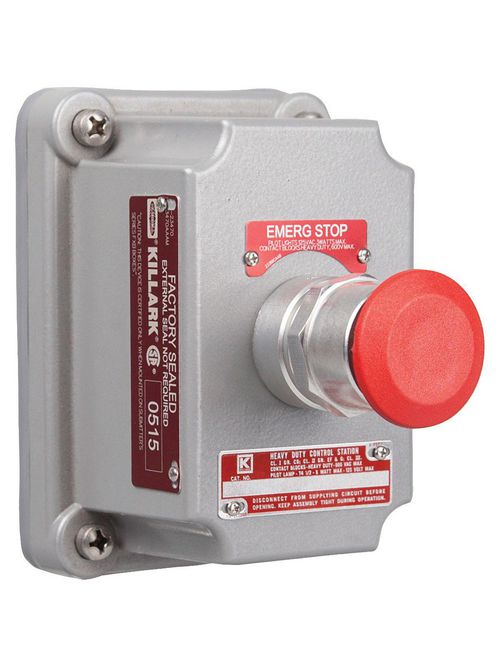

KLRK FXCS-0MMR3 CVR W/ DEVICE MAINT
$1,067.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # FXCS-0MMR3
North Coast Part # 330087

Features

  • Eliminates external sealing requirements.
  • Lower installation cost.
  • NEMA 3 weatherproof.
  • Color coded wiring with more wiring space for easier field installation.
  • Stainless steel captive screws for cover assembly.
  • Lockout accessory available must be factory installed.
  • Ground boss for grounding in the splicebox.
  • Device bodies and covers are copper-free cast aluminum alloy.
  • Push button, selector switches and pilot light bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.

Specifications

General

  • Action: Maintained
  • Actuator: Single Mushroom Pushbutton
  • Application: SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
  • Back Box Type: FXB
  • Color: Red
  • Material: Copper-free aluminum
  • Number Of Poles: 1
  • Series: FXCS
  • Type: Aluminum Factory Sealed Cover With Push-Pull Button
  • UPC: 783936200255

Dimensions

  • Gross Weight with Packaging: 3.39
  • Height: 4.75 in
  • Length: 7 in
  • Weight: 3.50 lb
  • Width: 6 in

Electrical Ratings

  • Amperage Rating: 10 A
  • Frequency Rating: 50/60 Hz

Certifications and Compliance

  • CSA File Number: LR11714, LR11712
  • Nema Rating: 3
  • UL File Number: E53360, E12379

Logistics

  • Carton Quantity: 1
  • Factory Sealed: Factory Sealed

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2

Overview

UPC 78393620025
GTiN 00783936200255
Length 7 in
Width 6 in
Size 5-5/16" H x 3-11/16" W x 2.59" D
Color Red
Type Aluminum factory sealed cover with push-pull button
Material Copper-Free Aluminum
Product Series FXCS
Applications SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings;
Height 4.75 in
Weight 3.50 lb
Frequency 50/60 Hz
Family Brand Name Killark
NEMA 3
Actuator Maintained push button
Contact Configuration 1-NO/1-NC
Amperage 10 Amp
Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Number of Poles 1 Pole
Action SP
Sub Brand SEAL-X
Voltage null
