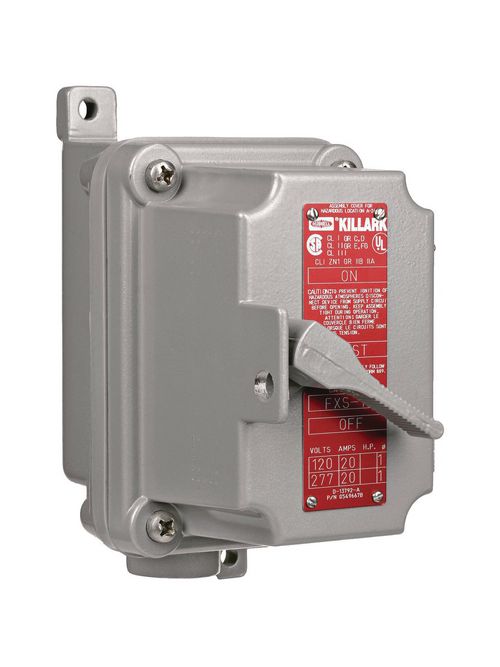

KLRK FXSD52 SWITCH 1GANG 2P F-THRU
Product image thumbnail 0
Product image thumbnail 1
$688.01/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Killark
Mfg Catalog # FXSD52
North Coast Part # 16943

Features

FXSD Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro

  • Motor running protection when overload heaters are used.
  • Factory Sealed so no external seals are required.
  • Type 3 (raintight) rated.
  • Enclosures are cast copper-free aluminum alloy.
  • Operating shaft is stainless steel.
  • Multiple gang assemblies available in combination with pilot lights, pushbuttons and switches on request.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Provisions for padlocking switch in either “ON” or ”OFF” position is standard.

Specifications

  • Application: Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used.
  • Horsepower - Maximum: 1
  • Material: Aluminum, Copper Free (less than 4/10 of 1%)
  • Series: FXSD
  • Type: Aluminum Manual Motor Starting Switch With Overload Protection
  • UPC: 783936197388
  • Gross Weight with Packaging: 4.4
  • Height: 6.813 in
  • Length: 3.688 in
  • Width: 5.344 in
  • Frequency Rating: 60 Hz
  • Voltage Rating: 230 V
  • CSA File Number: LR11714

Hazardous Rating(s)

  • Class I, Divisions 1 & 2, Groups C, D
  • Class I, Zones 1 & 2, Groups IIB, IIA
  • Class II, Divisions 1 & 2, Groups E, F, G
  • Class III, Divisions 1 & 2
  • Nema Rating: 3
  • UL File Number: E53360 / E12379

Overview

UPC 78393619738
GTiN 00783936197388
Length 3.688 in
Width 5.344 in
Size 6-13/16" H x 3-11/16" W x 5-11/32" D
Voltage 230 Volt
Type Aluminum manual motor starting switch with overload protection
Material 10 Of 1%),Aluminum,Copper Free (less Than 4
Applications Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used.
Height 6.813 in
Frequency 60 Hz
Coil Voltage 1 HP @ 115-230 VAC; 3/4 HP @ 115-230 VDC.
Family Brand Name Killark
NEMA 3
Number of Phases 1 Phase
Enclosure Type Aluminum enclosure
Power Rating 1 HP @ 115-230 VAC; 3/4 HP @ 115-230 VDC.
Number of Poles 2 Pole
Reset Type Lever
